Rotavisc Accessories

Name: DIN adapter set
Brand: Gardco
SKU: 14794
Price: 1831 USD
Availability: InStock

Art. No.: 14794

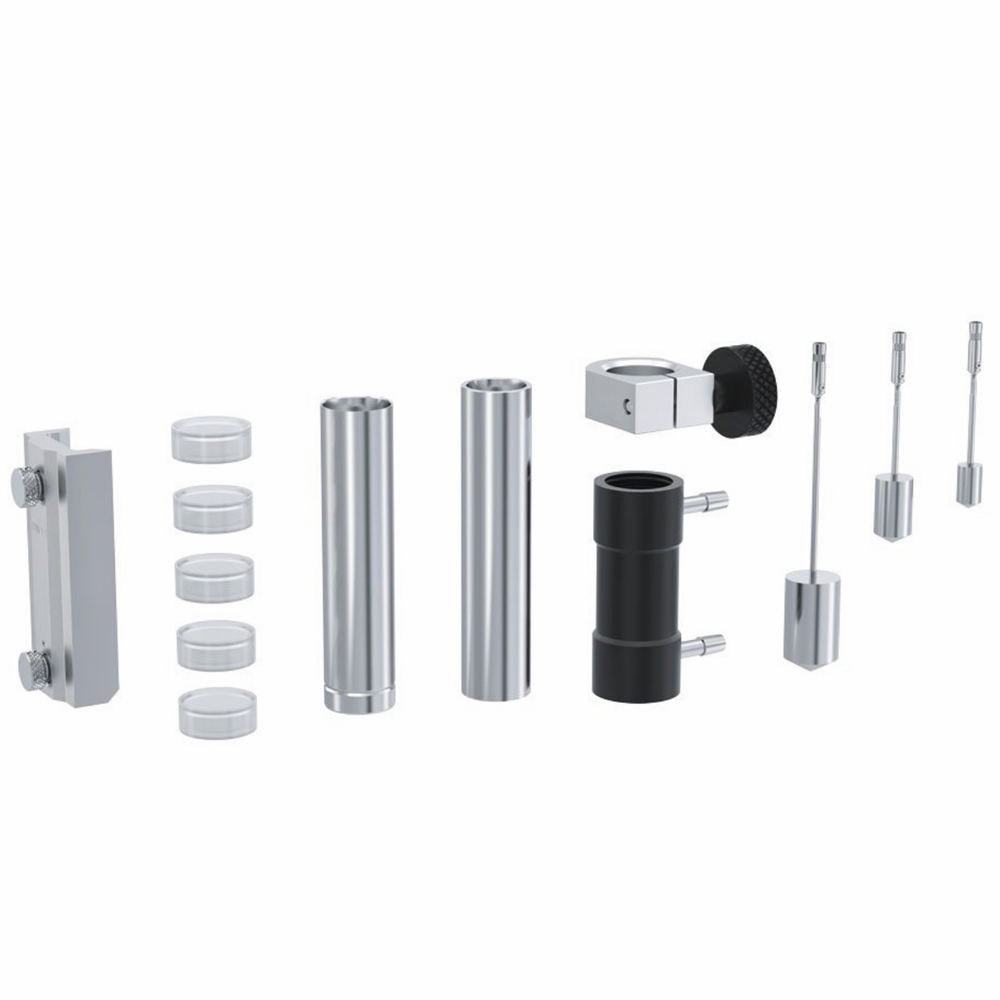

DIN adapter set

Adapter to comply with DIN-53019 standard.

Select your Model

Viscometers

$1,831.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Technical Data Chart

Data

Adapter Set	DINS-1	O DIN S-1	ELVAS-1	VOLS-1	ELVAS-C-1
Spindle Geometry:	Cylinder
Connection:	Thread M2.5 LH
Flow Jacket:	yes
Sample Container:	Specified chamber
Working Temperature Max.:	100 °C
Viscosity Accuracy (FSR):	2%
Viscosity Repeatibility (FSR):	0.2%
Sample Volume:	2 ml - 17 ml	---	16 ml	6.7 ml	16 ml
Min. FSR Match ROTAVISC lo-vi:	0.6 mPa.s	6 mPa.s	1 mPa.s	1.5 mPa.s	10 mPa.s
Mounting Bracket:	yes	yes	yes	yes	---
Max. FSR Match ROTAVISC lo-vi:	50000 mPa.s	50000 mPa.s	2000 mPa.s	30000 mPa.s	600 mPa.s
Min. FSR Match ROTAVISC me-vi:	6.1 mPa.s	61 mPa.s	3.2 mPa.s	16 mPa.s	32 mPa.s
Max. FSR Match ROTAVISC me-vi:	50000 mPa.s	50000 mPa.s	2000 mPa.s	20000 mPa.s	2000 mPa.s
Min. FSR Match ROTAVISC hi-vi I:	12.2 mPa.s	122 mPa.s	6.4 mPa.s	32 mPa.s	64 mPa.s
Max. FSR Match ROTAVISC hi-vi I:	50000 mPa.s	50000 mPa.s	2000 mPa.s	640000 mPa.s	2000 mPa.s
Min. FSR Match ROTAVISC hi-vi II:	48.8 mPa.s	488 mPa.s	25.6 mPa.s	128 mPa.s	256 mPa.s
Max. FSR Match ROTAVISC hi-vi II:	50000 mPa.s	50000 mPa.s	2000 mPa.s	2600000 mPa.s	2000 mPa.s
Material in Contact w/Medium:	stainless steel 1.4404 / LDPE	stainless steel 1.4404	stainless steel 1.4404 / LDPE	stainless steel 1.4404	AISI 316L / 1.4571
Dimensions (W x H x D):	390 x 102 x 310 mm	390 x 102 x 310 mm	300 x 110 x 275 mm	300 x 110 x 275 mm	32 x 133 x 32 mm
Weight:	2.5 kg	1.919 kg	1.753 kg	1.656 kg	0.117 kg
Diameter:	---	---	25.15 mm	---	25.2 mm
Spindle Length:	---	---	161 mm	---	161 mm
Hook connector:	---	---	---	yes	---
Immersion Depth:	---	---	---	---	90.7 mm
