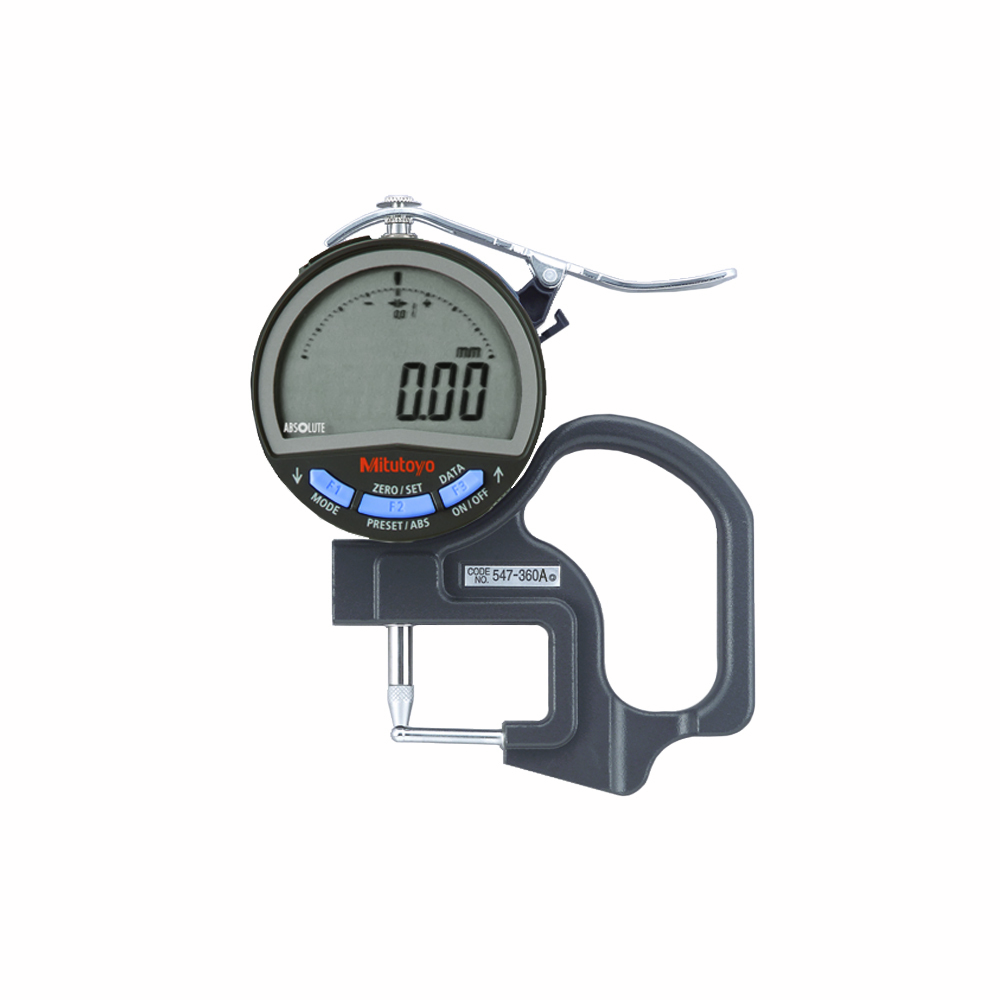

Mitutoyo Digimatic Thickness Gauges
Art. No.: 12155
Digitmatic Pipe Gauge, 0-10x0.01mm
- Digital Thickness Gauge, Pipe Gauge
- 0-10mm, 0.01mm
- Measure tube wall thickness
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
- The ABSOLUTE Mitutoyo digital gauge quickly measures the thickness of different materials or objects with high accuracy.
- Measurements are shown on an easy-to-read LCD display.
- Metric/Inch models available
- Available with deep-throated frames (flat anvil type)
- The tube/pipe thickness gauge features a curved contact point which provides highly accurate thickness measurements of tube and pipe walls.
- Spindles and anvils on most models are constructed with ceramic for better corrosion resistance
- Carbide contact points are available on model 547-400
- Signal can be output to external device; waterproof data output connector protects against dust, water and oil ingress
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
- SPC output function allows for quick and easy data management in real time
- Unlimited response speed eliminates over-speed errors
- Measuring force is 1.5N or less
- Supplied in a fitted plastic case
| Technical Data Chart | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Data |
| ||||||||||||||||||||||||||||
Digitmatic Pipe Gauge, 0-10x0.01mm
- Plastic fitted case
Digitmatic Deep Throat, 0-0.47x0.0005”
Article No: 12157
Digitmatic Flat Anvil, 0-0.47x0.0005”
Article No: 12156
