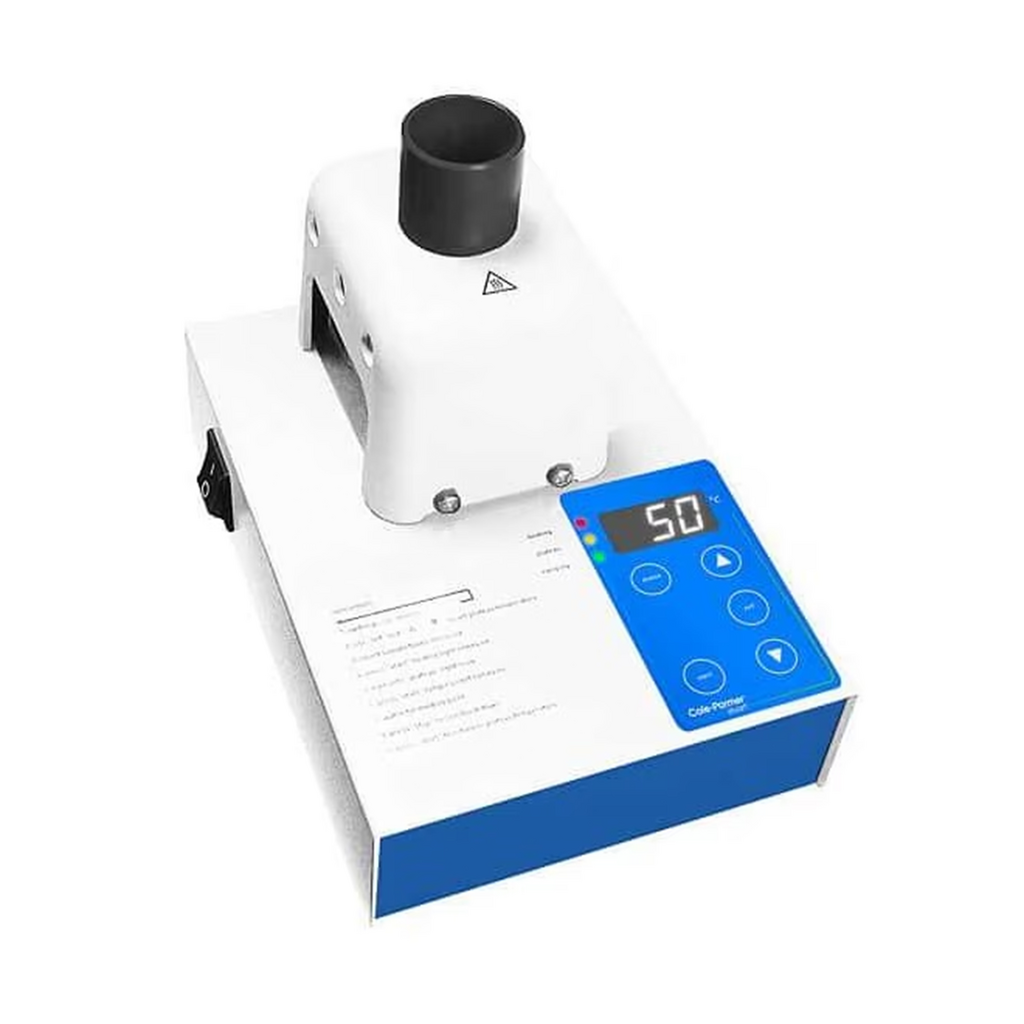

SMP Series Melting Point Apparatus

Name: Digital Melting Point Meter, 240VAC
Brand: Gardco
SKU: 15105

Art. No.: 15105

Digital Melting Point Meter, 240VAC

Select your Model

Temperature Measurement

$1,495.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

No need for fragile glass thermometers—temperature is fully digital
Select, measure, and display temperature digitally for accurate, repeatable results
Easily view the melt through a magnifying lens with built‑in illumination
Be more productive by testing two samples simultaneously
Save time with a programmable plateau temperature for rapid initial warm‑up
After warm‑up, the unit heats slowly to the melt temperature for greater accuracy, with flexible temperature adjustment options depending on the model
Designed for maximum safety and ease of use in routine or teaching labs
Extendible back feet let you set the optimal viewing angle and improve operator comfort

Technical Data Chart

Data

Part No.:	15105	13296
Description:	Standard resolution (MP-200D)	High resolution (MP-200D-HR-120)
No. of Samples:	2
Temperature Range:	Ambient to 300°C
Temperature Resolution:	1°C	0.1°C
Temperature Accuracy:	±1.0°C to 20°C ±2.5°C at 300°C
Display:	Three digit LED	Four digit LED
Temperature Sensor:	100Ω Pt RTD
Ramp Rates:	20°C per minute to plateau 2°C per minute to melt	20°C per minute to plateau between 1 and 10°C per minute
Voltage:	240V	120V
Manual Languages:	English, German, French, Spanish
Dimensions W x D x H (mm):	160 x 220 x 170 mm
Net Weight:	1.8 kg

Digital Melting Point Meter, 240VAC

MP-200-D Melting Point Apparatus (240V)
Pack of 100 glass capillary tubes (open at one end)
Power cord

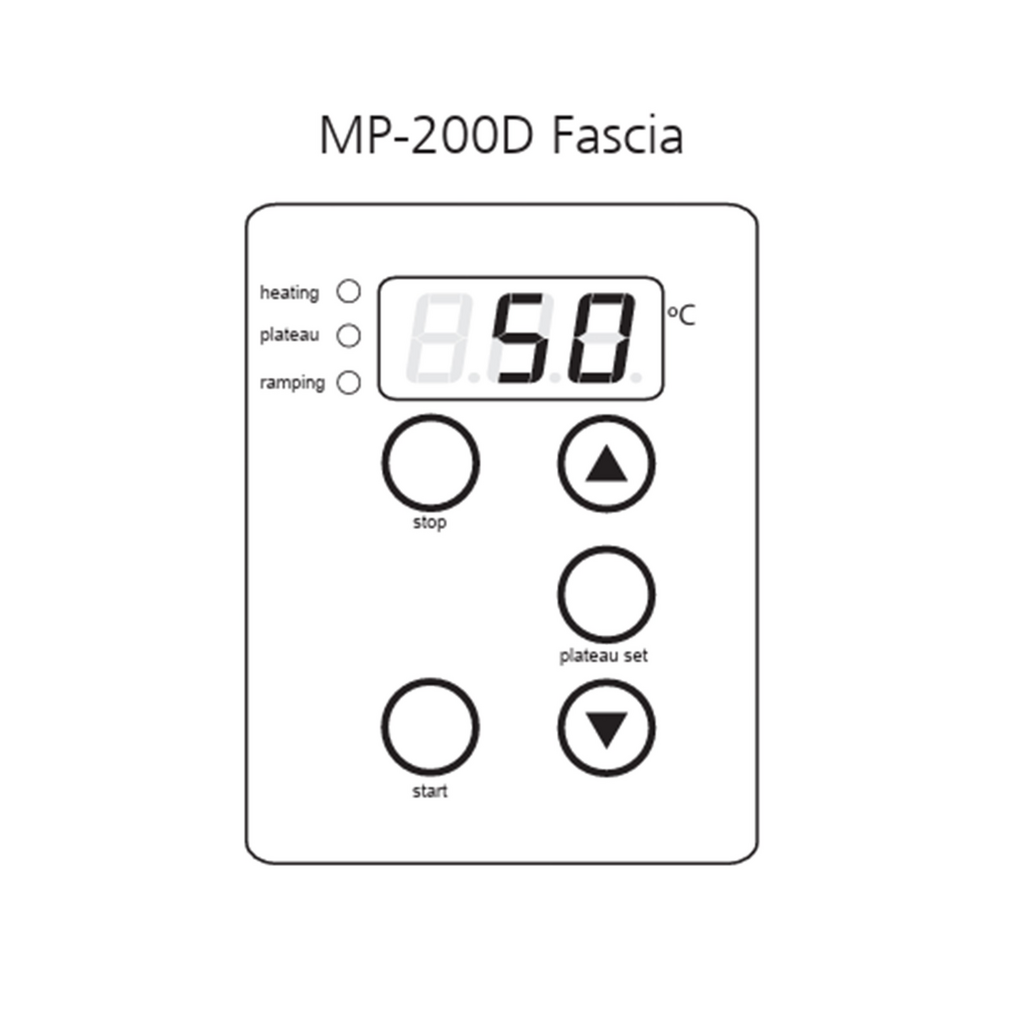

Select a plateau temperature on the digital display (about 10 °C below the expected melting point), then press “Start”.
The block heats rapidly to the plateau (about 20 °C/min) and holds at that temperature until you are ready to test.
Insert the prepared sample tubes into the block and press “Start” again to begin the measurement.
The unit heats at a fixed rate of 2 °C/min for the MP‑200D (previously SMP10) or at a user‑selected rate of 1–10 °C/min for the MP‑200D‑HR-120 (previously SMP20).
When the sample is seen to melt, note the temperature on the display and press “Stop” to end heating and allow the block to cool.

For detailed instructions and safety information, see the full manual in the Downloads tab.
