PosiTector 200 Coating Thickness Gauge

PosiTector® 200 Series III Coating Thickness Gauges

Art. No.: 11051

Defelsko Positector 200C Standard Gauge

  • PosiTector 2000
  • Standard Gauge
  • Model C - 50 to 3800 µm / 2 to 150 mils
  • Storage of 1,000 readings per probe, stored readings can be viewed or downloaded

Select your Model

$2,380.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

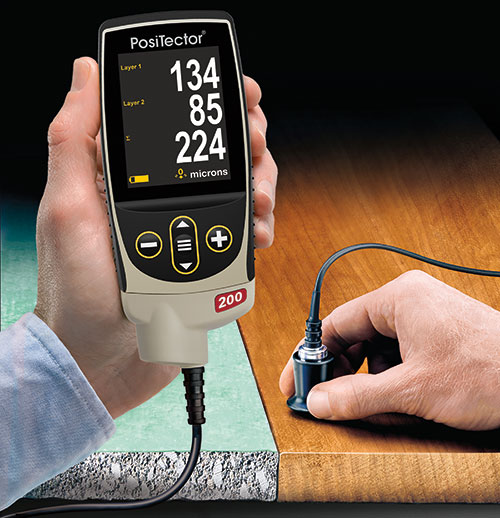

  • The PosiTector 200 non-destructively measures a wide variety of applications using proven ultrasound technology.
  • It measures coating thickness over wood, concrete, plastics, composites, and more. They are available as either Standard or Advanced models and your choice of 3 probes.
  • Ready to measure - no adjustment required for most applications
  • Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings
  • Weatherproof, dustproof, and water resistant, IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe
  • Responsive transducers provide fast, accurate readings
  • Certificate of Calibration showing traceability to NIST or PTB included
  • Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808
  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • Auto rotating display with Flip Lock
  • Mils/Microns switchable
  • Selectable display languages
  • Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range, ideal for ignoring unwanted surface echos
  • Screen Capture - save 100 screen images for record keeping and review
  • Up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drive, stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Includes PosiSoft suite of software for viewing and reporting data
  • Software Updates via web keep your gage current
  • Measure the total thickness of a coating system
  • Advanced Models Feature:
    • Measure up 3 individual layer thicknesses in a multi-layer system
    • Graphics mode with screen capture for detailed analysis of the coating system
    • Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading
    • Live graphing of measurement data
    • SSPC-PA 9 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
    • Touchscreen keyboard for quickly renaming batches, adding notes, and more
    • Multiple stored calibration adjustments for measuring on a variety of coating applications

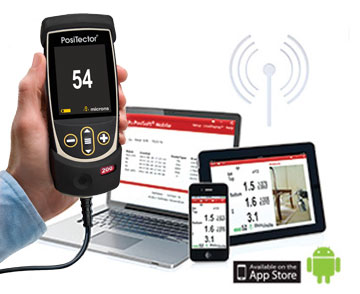

    • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
    • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
    • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Technical Data Chart
Data

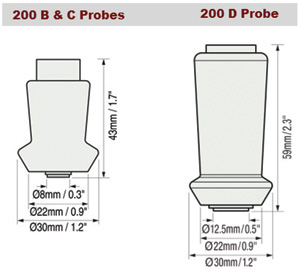

Positector® 200 Probes:BCD

Typical Applications:		Polymer coating on wood, plastic, etc.Coatings on concrete, fiberglass, etc.Thick, soft coatings like polyurea, asphatic neoprene, very thick polymers
Measurement Range:*13 to 1000 µm
0.5 to 40 mils		50 to 3800 µm
2 to 150 mils		50 to 7600 µm
2 to 300 mils
Accuracy:±(2 µm + 3% of reading)
±(0.1 mils + 3% of reading)		±(20 µm + 3% of reading)
±(1 mil + 3% of reading)
Advanced Models: Min Individual Layer Thickness**13 µm
0.5 mils		50 µm
2 mils		500 µm
20 mils
*Range limits apply to polymer based coatings only. D probe polyurea range is 50 to 5000 µm (2 to 200 mils)
**For multiple layer applications only. Dependent on material to be tested.
ASTM
D6132
ISO
2808
Defelsko Positector 200C Standard Gauge
  • Guage Body
  • Probe
  • Shims
  • USB cable
  • 4 oz. Couplant
  • Rubber Boot
  • Belt Clip
  • Wrist Strap
  • Nylon Pouch
  • Certificate of Calibration (Long Form)
  • Manual
