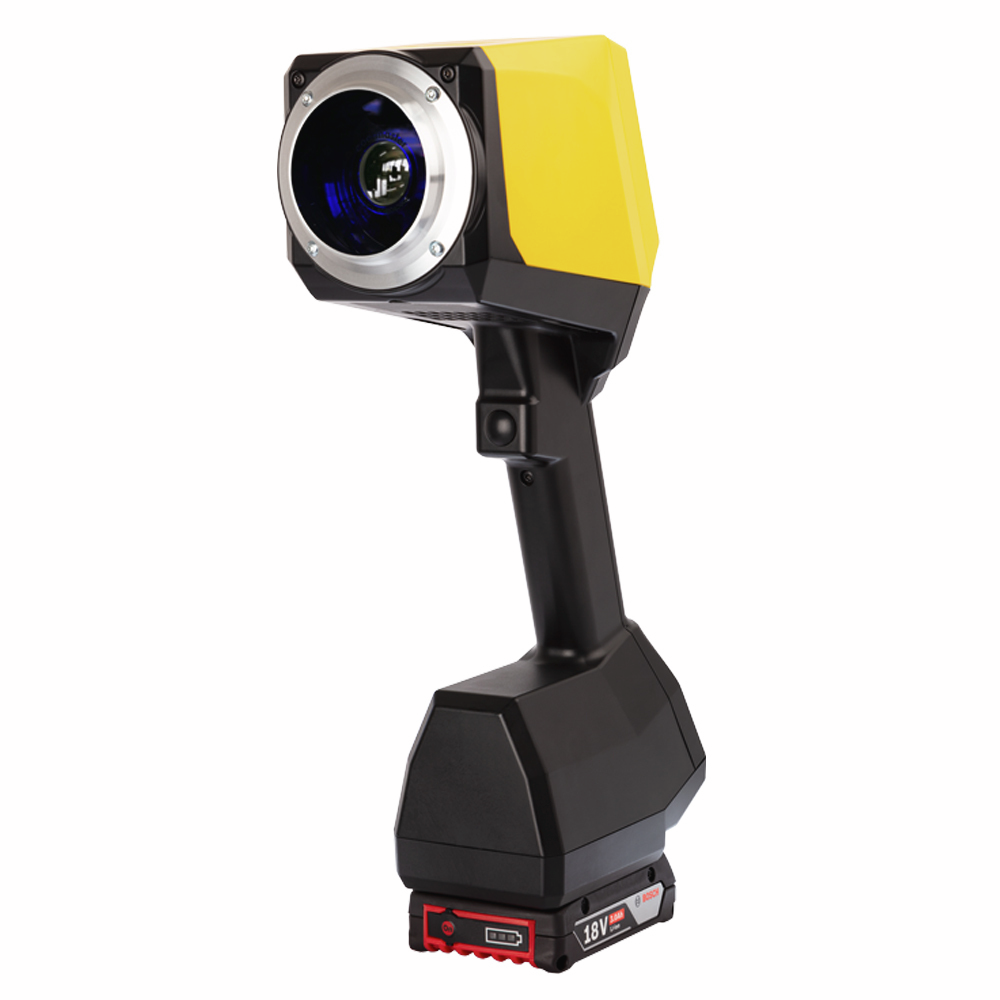

coatmaster Flex Coating Measurement

Coatmaster Flex

Art. No.: 15491

Coatmaster Flex Basic

  • Coatmaster Flex Basic Model
  • 24 months of free cloud backup and web data services (to learn more visit the More Information tab below)

Select your Model

$15,595.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • Non-contact and non-destructive coating thickness measurement
  • Detect and correct deviation early in the process
  • Process controlled, patented technology and material saving
  • Complete with documentation
  • Suitable for coating metal, paper, rubber, ceramics, glass, plastic and wood surfaces
  • Reduce rejects and increase production quality with immediate testing
  • The Coatmaster Cloud and Wi-Fi Local Server (15495) will give you the cloud server and Wi-Fi router capabilities for your Coatmaster Flex Basic in places where WiFi is unavailable and eliminates server fees after the two years have passed.
  • Note: After 24 months, the Flex Cloud Server license will be extended with the following conditions: automatic license extension for $75.00 / month with annual invoicing, canceling possible at the end of the license runtime with four-week notice period, price changes will be announced before the notice period. You can also purchase the 15495 (Cloud & WiFi Server) in the accessories section to eliminate the fee.

Technical Data Chart
Data
Cured Powder/Dried Paints:1-1000 μm (10-500 μm/metal)
1-40 mils (.4-20 mils/metal)
Wet Paints Before Drying:1-400 μm (10-300 μm/metal)
1-16 mils (.4-12 mils/metal)
Powder Coatings Before Curing:1-400 μm (10-300 μm/metal)
1-16 mils (.4-12 mils/metal)
Measuring Time:From 20 ms
Distance Tolerance¹:2 - 15 cm
.8- 6 inches
Tilt Tolerance¹:± 70°
Measurement on Moving Parts:yes
Relative Standard Deviation²:< 1 % (< 2%/metal)
Measures Coatings of Any Color (incl. white):yes
Real-time Data Access via ERP and Browser:yes
Weight (Without Battery):1.3 kg
2.9 lb.
Dimensions:374 x 91 x 203 mm
14.75” x 3.6” x 8”
¹ Depending on coating and substrate material
² 60 μm powder coating before curing on aluminum, 5 cm working distance
Coatmaster Flex in a robust Case
Shoulder-Strap
Quick Start Guide
Manual
Test Certificate

Manuals

Lithium Battery Pack

Coatmaster Lithium 2-Pack Battery

Article No: 15493

Price: $179.95

Coatmaster Wifi Server, Front

Coatmaster Cloud + Wi-Fi Server

Article No: 15495

Price: $4,250.00

Coatmaster Complete with Wifi Server

Coatmaster Flex Complete

Article No: 15494

Price: $19,495.00
