Objective measurement of paint mottling

Objective measurement of paint mottling

Art. No.: 6350

cloud-runner
Control and guarantee a uniform finish – no more mottling

  • Objective and reliable values for QC and trouble shooting
  • Measurement results independent of color, curvature and
    surrounding light conditions

Select your Model

$30,650.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

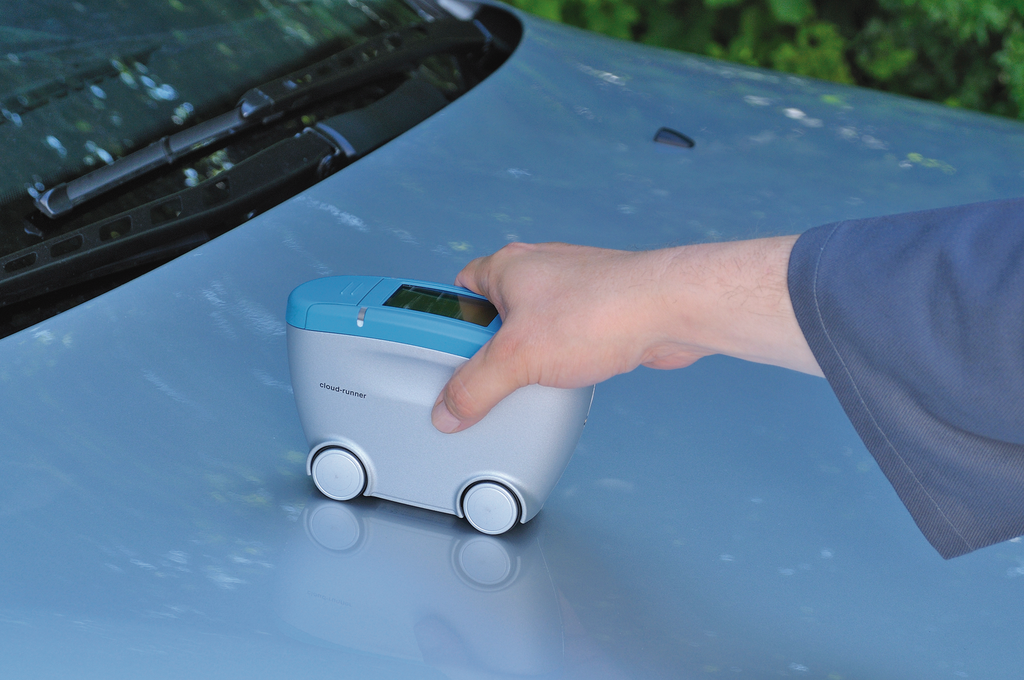

Mottling is an undesired effect which is most obvious on light metallic finishes. These irregular lightness variations can now be objectively measured with the cloud-runner. Small design, ease-of-use and fast data collection make the mottling meter the ideal tool for batch approval and process control.

  • Measures under three angles to simulate different observing conditions
  • Ideal tool for the production line: small, fast and easy to handle
  • For flat and curved areas (radius larger than 50 cm)
  • Scan length can be selected on the mottle meter from 10 to 100 cm

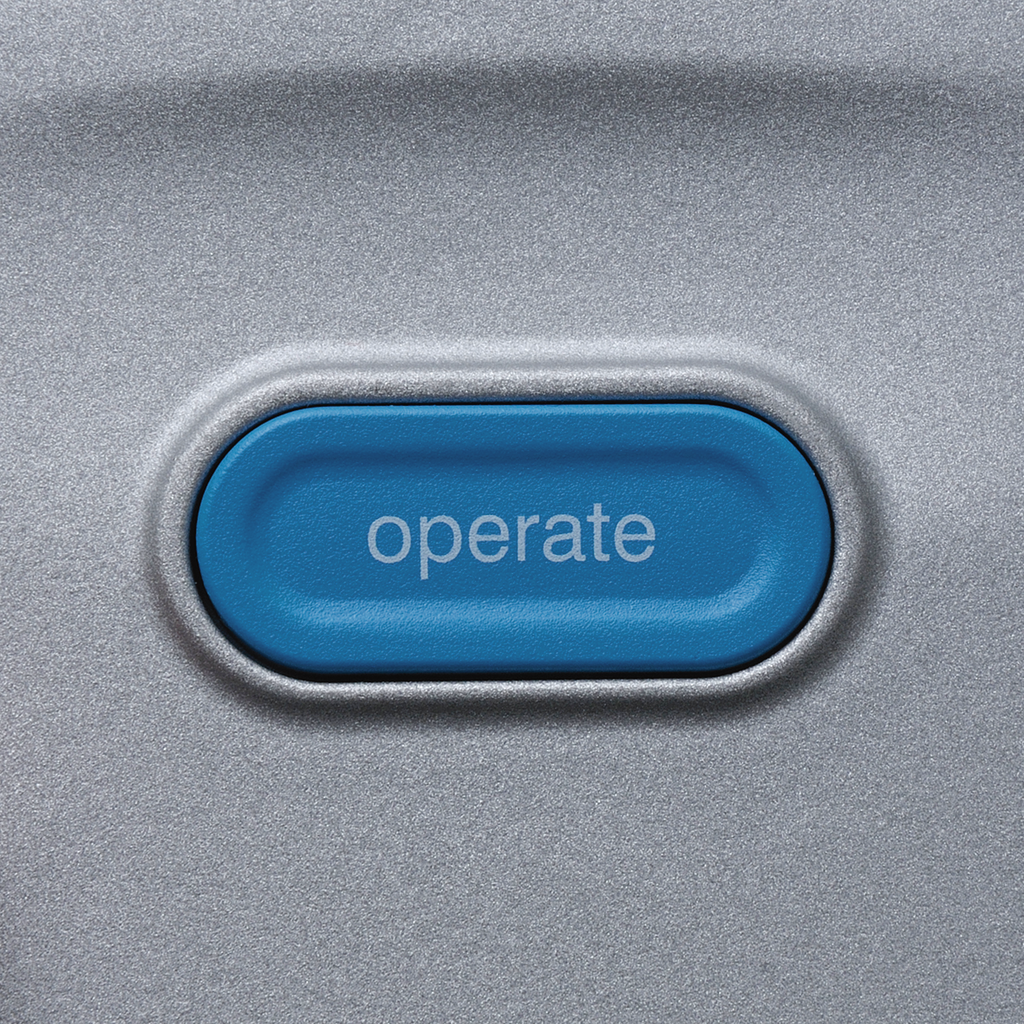

  • Easy scroll wheel operation and large, multilingual display
  • Full statistics with ability to save in selectable memories
  • Docking station for data transfer to the PC and recharging the batteries of the mottling meter

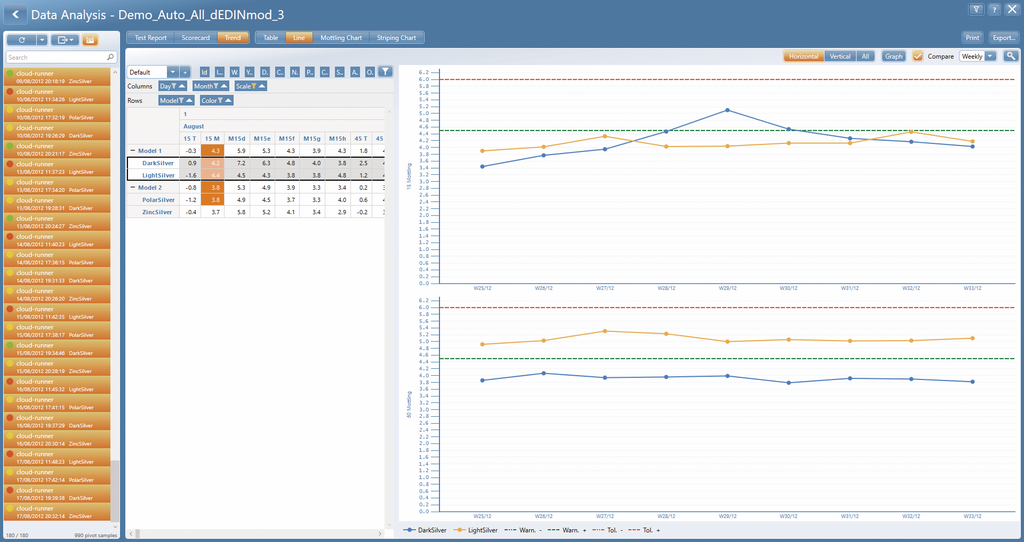

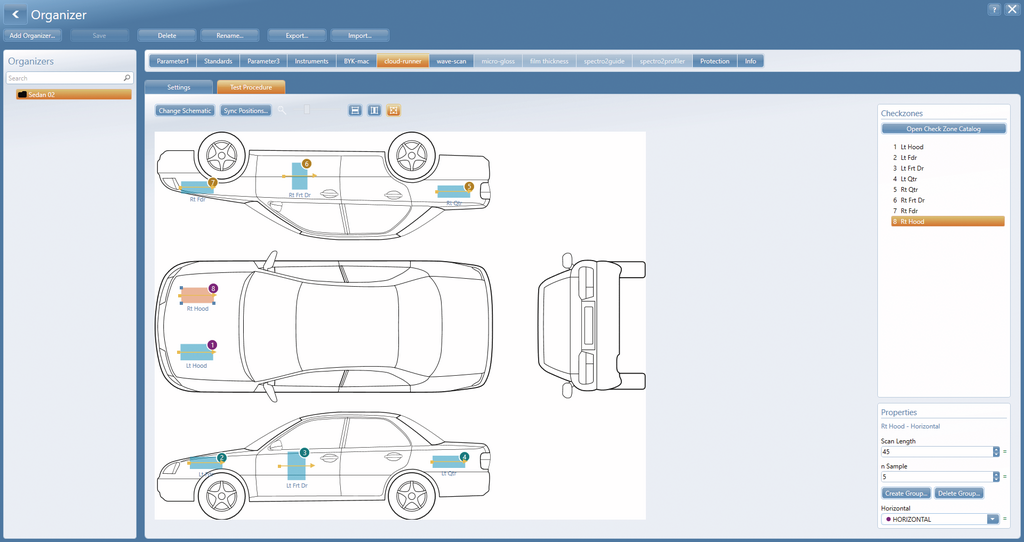

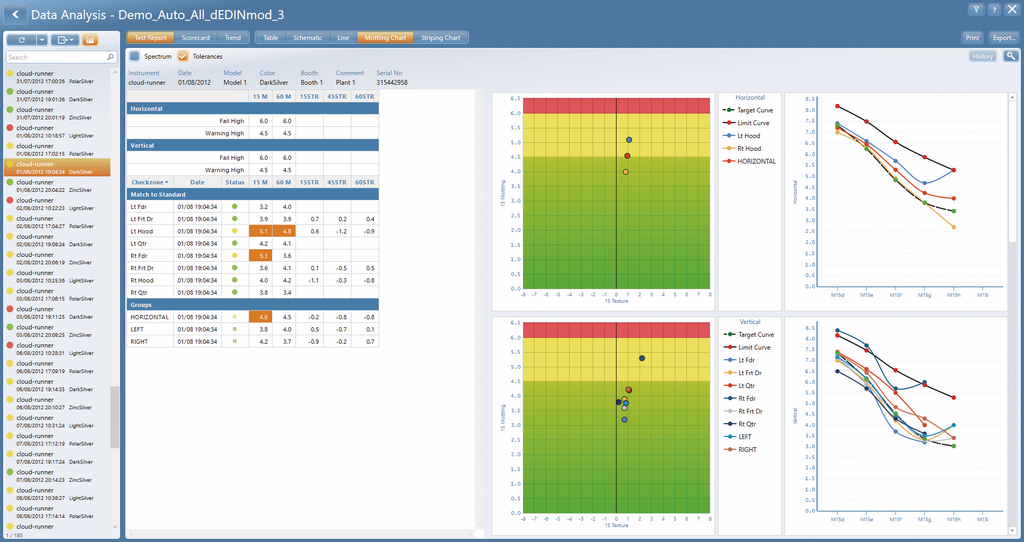

  • smart-chart software for flexible data analysis and professional documentation

Technical Specifications
Cloud Size

Md: 6 to 13 mm

Me: 11 to 24 mm

Mf: 19 to 42 mm

Mg: 33 to 72 mm

Mh: 57 to 126 mm

Mi: 100 to 200 mm

Repeatability (Std. Dev.)5% or > 0.5
Reproducibility (Std.Dev.)8% or > 0.8
Object Curvatureradius > 500 mm
Scan Length10 to 100 cm, selectable in 1cm steps
Resolution25 points/cm
Light SourceWhite Power LED
General
Measuring time< 4 sec.
Memory1000 readings
InterfaceUSB port
LanguagesEnglish,French,German,Italian,Japanese,Portuguese,Spanish
Power supplyrechargeable battery pack, approx. 1500 readings
Weight0.65 kg
Weight1.5 lb
Operating temperature10 - 40 °C
Storing temperature0 - 60 °C
Operating temperature50 - 104 °F
Storing temperature32 - 140 °F
Relative humidityup to 85% at 35°C (95°F), non-condensing
Dimensions: L x W x H15 x 5.5 x 11 cm
Dimensions: L x W x H5.9 x 2.2 x 4.3 in
We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net

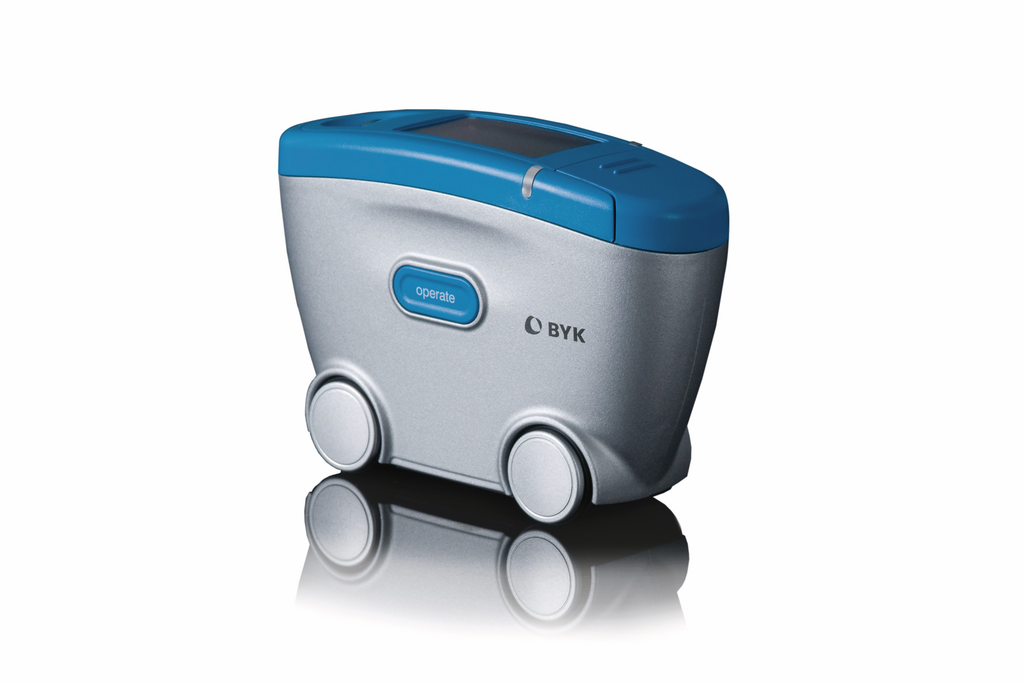

Instrument
Checking tile (6353)
Docking station with USB-cable (6351)
2 smart-chart licenses for download
2 rechargeable battery packs (6349)
Certificate
Manual

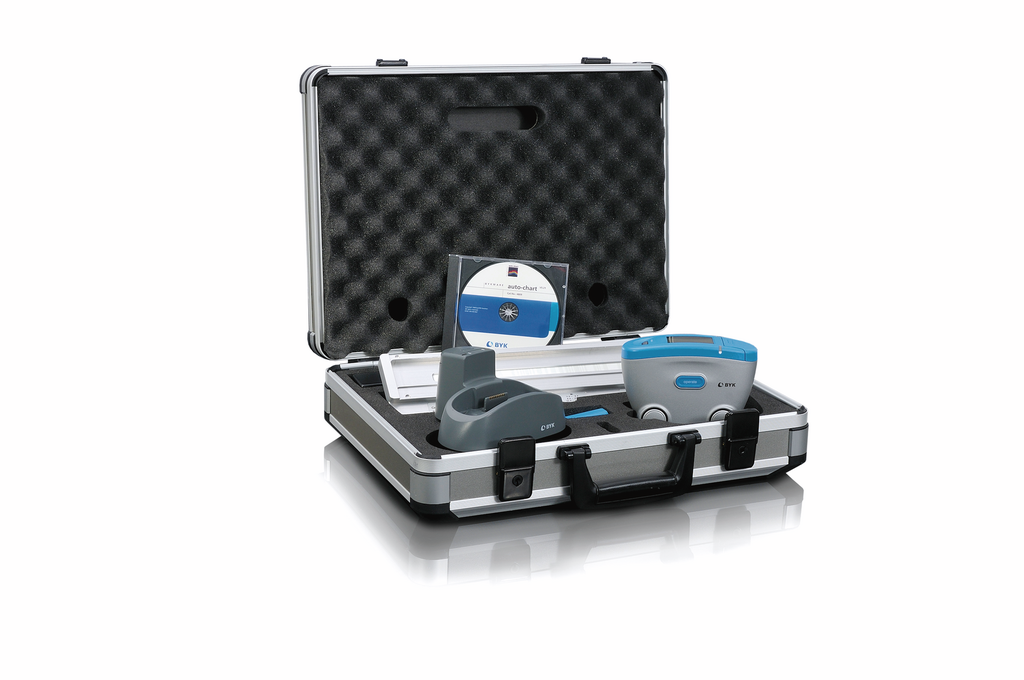

Carrying case
1-day training

Manuals

Short Instructions

Safety Instructions

Brochure

Battery Pack for cloud-runner mottling meter from BYK-Gardner

Battery Pack cloud-runner

Article No: 6349

Price: $178.00

cloud runner - Objective measurement of paint mottling

Docking Station cloud-runner

Article No: 6351

Price: $1,061.00

Checking tile for cloud-runner mottling meter from BYK-Gardner

Checking Tile cloud-runner

Article No: 6353

Price: $693.00
