Original Schmidt Concrete Test Hammers

Art. No.: 15560

Certified Schmidt Concrete Type N Metric

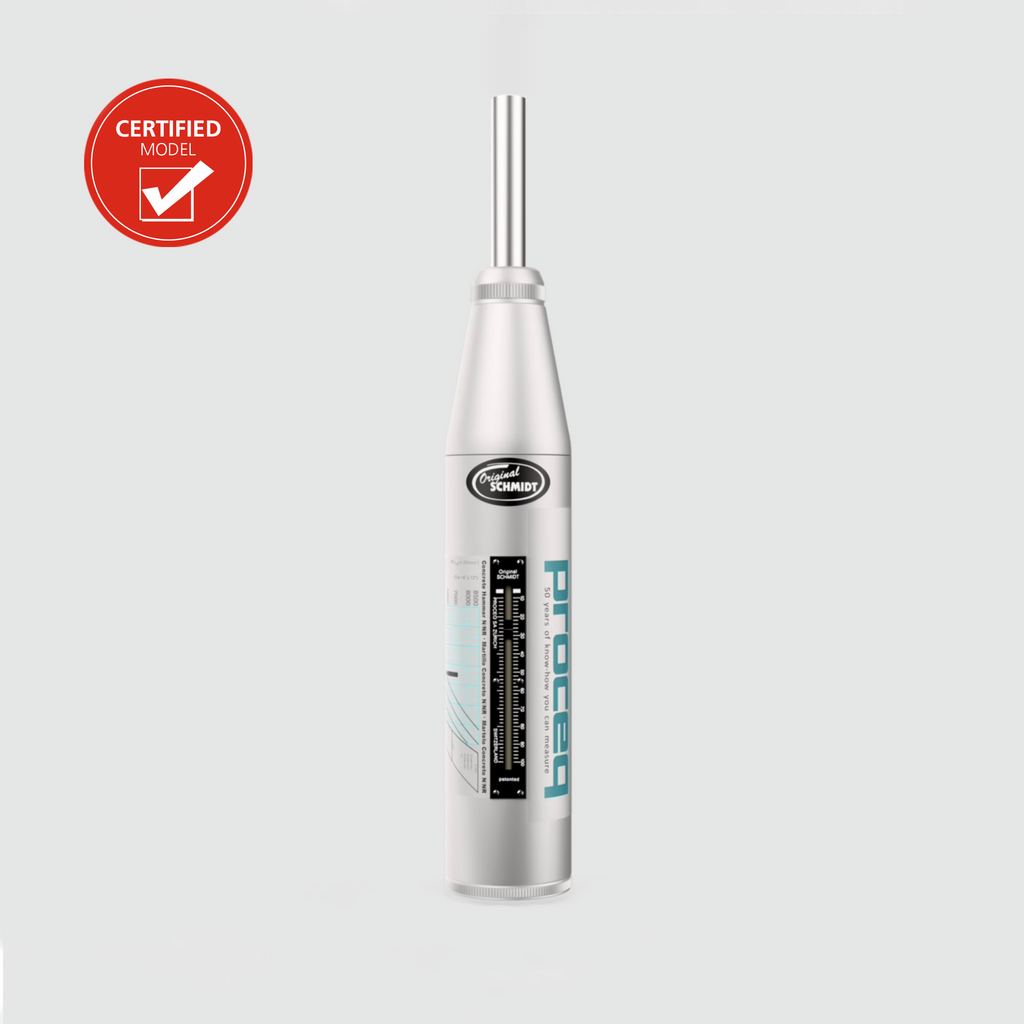

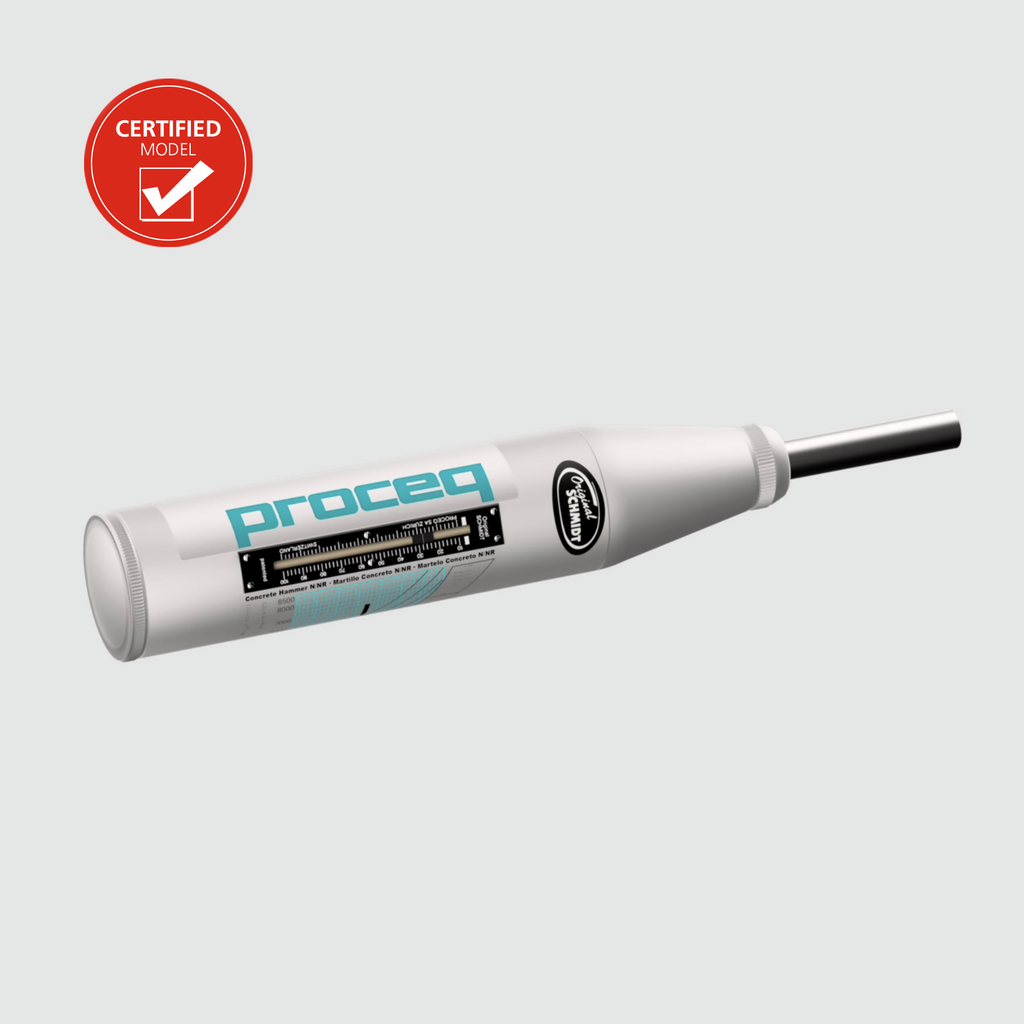

Certified Original Schmidt Concrete Test Hammer Type N
Metric Scale
Designed for testing concrete items 4” (100 mm) or more in thickness, or concrete with a maximum particle size less than or equal to 1.25” (32 mm).
Used for the testing of massive rock.
Impact energy is 1.6 ft-lbs (2.207 Nm). Units have 1,450 psi to 18,150 psi (10 to 70 N/mm2) compressive strength.
Testing Standards for N: ASTM C 805, D5873; BS 1881: Part 202

Select your Model

Hardness Testers

$1,695.95

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The classic Original Schmidt hammer is the basis of every major rebound hammer testing standard worldwide.
There are various models with different impact energies to cover a wide range of applications.
They have a proven durability and quality compared with low cost copies.
Mechanical Display
Compressive strength range: 10 to 70 N/mm2 (1,450 to 10,152 psi)
Applications: Concrete, Geology, Uniformity testing, In-situ strength estimation, Rock testing, Large paper rolls, Paper (Type L)

Technical Data Chart

Data

Mechanical Data	Type N	Type L
Impact Energy:	2.207 Nm (1.63 lb ft)	0.735 Nm (0.54 lb ft)
Concrete Compressive Strength Range:	10 to 70 N/mm2 (1,450 to 10,152 psi)
Electrical Data
Display:	Mechanical
