Rotational Viscometers

Art. No.: 8357

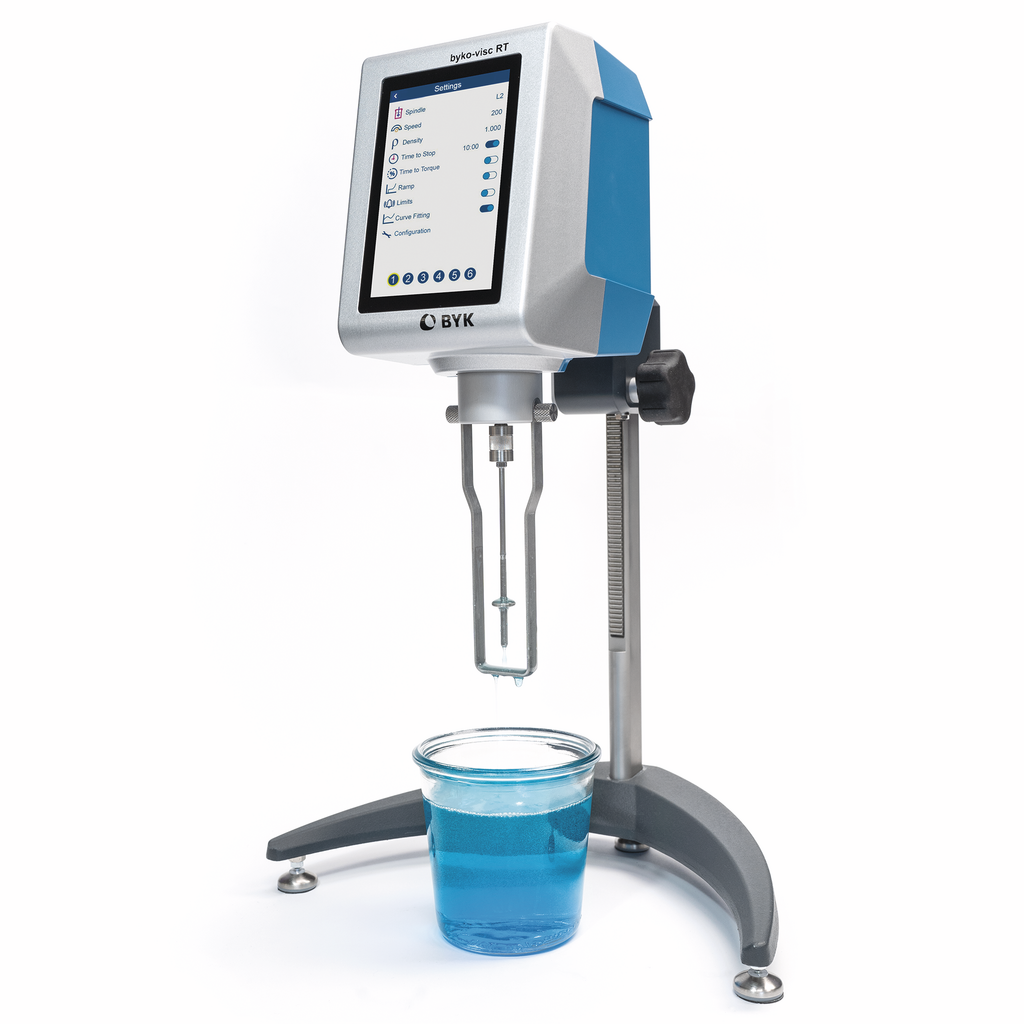

byko-visc RT R
Rotational Viscometer for regular viscosity

  • Viscosity range: 26 - 40 Mio. cP
  • Variable speed range: 0.1 - 250 rpm
  • Advanced data collection with on-screen graphing
  • Test Modes: Time to Torque, Time to stop
  • Additional test modes: QC limits, Ramp of speeds, Curve Fitting
  • Temperature probe included
  • Includes 6 Spindles:
  • Spindle R2 26 - 400,000 cP
  • Spindle R3 60 - 1 Mio. cP
  • Spindle R4 120 - 2 Mio. cP
  • Spindle R5 240 - 4 Mio. cP
  • Spindle R6 600 - 10 Mio. cP
  • Spindle R7 2,400 - 40 Mio. cP

Viscosity ranges of R-spindles defined by instrument sensitivity and speed range

Select your Model

$5,550.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

As a manufacturer, viscosity specifications need to be developed and defined by R&D for the products used in specific conditions – often customization of recipes is required. To ensure a stable viscosity performance in production tests need to be run daily. The new byko-visc RT rotational viscometer provides you all the flexibility needed for any measurement task.

  • Measure a wide range of viscosities - Choose your model and enjoy flexibility in measurements
  • Electronic bubble leveling with adjustable feet
  • Brilliant 5" color touch display
  • Test Modes: Time to Torque, Time to stop
  • USB memory stick / direct to PC connecting
  • Quick disconnect spindles with an easy snap-on attachment
  • Dymo Label Writer output for sample labeling
  • Spindles made of high-quality 316 stainless steel
  • CE/UL/CSA Approved
  • 17025 certificate included

Technical Specifications
Measuring Range26 - 40 Mio. cP
No. of SpeedsFreely selectable
No. of Spindles6
Speed Range0.1 - 250 rpm
Accuracy1.0% full scale range
Model TypePremium
Repeatability0.2%
Spring TypeR
Max Spring Torque0.7187 mNm
General
LanguagesEnglish,German,French,Italian,Spanish,Russian,Japanese,Chinese
Power supplyWorldwide power supply, 24 V voltage DC input / Separate 24 V DC power supply
Weight6.5 kg
Weight14.3 lb
Dimensions: L x W x H25 x 31 x 47 cm
Dimensions: L x W x H9.8 x 12.2 x 18.5 in
We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net

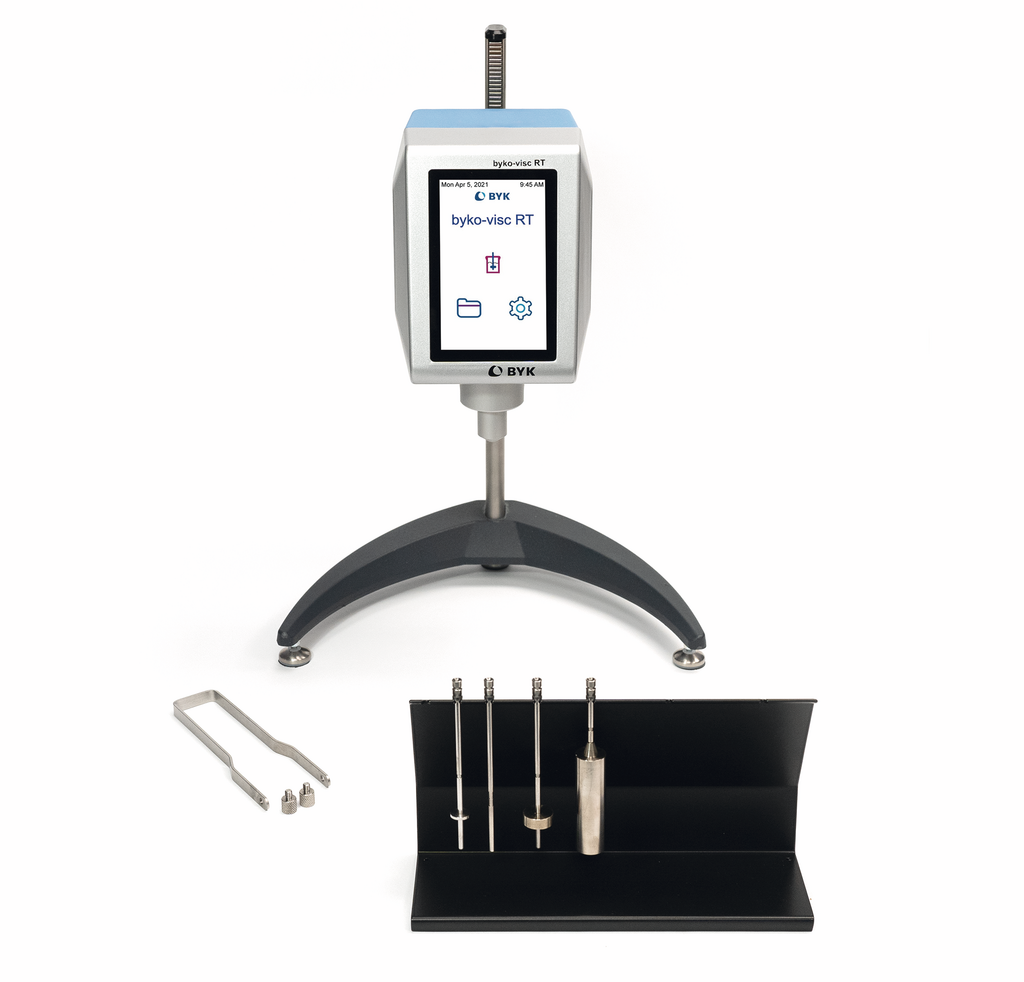

Viscometer with stand
