Rotational Viscometers
byko-visc RT Lite H
Rotational Viscometer - Standard model for high viscosity
- Viscosity range: 240-106 Mio. cP

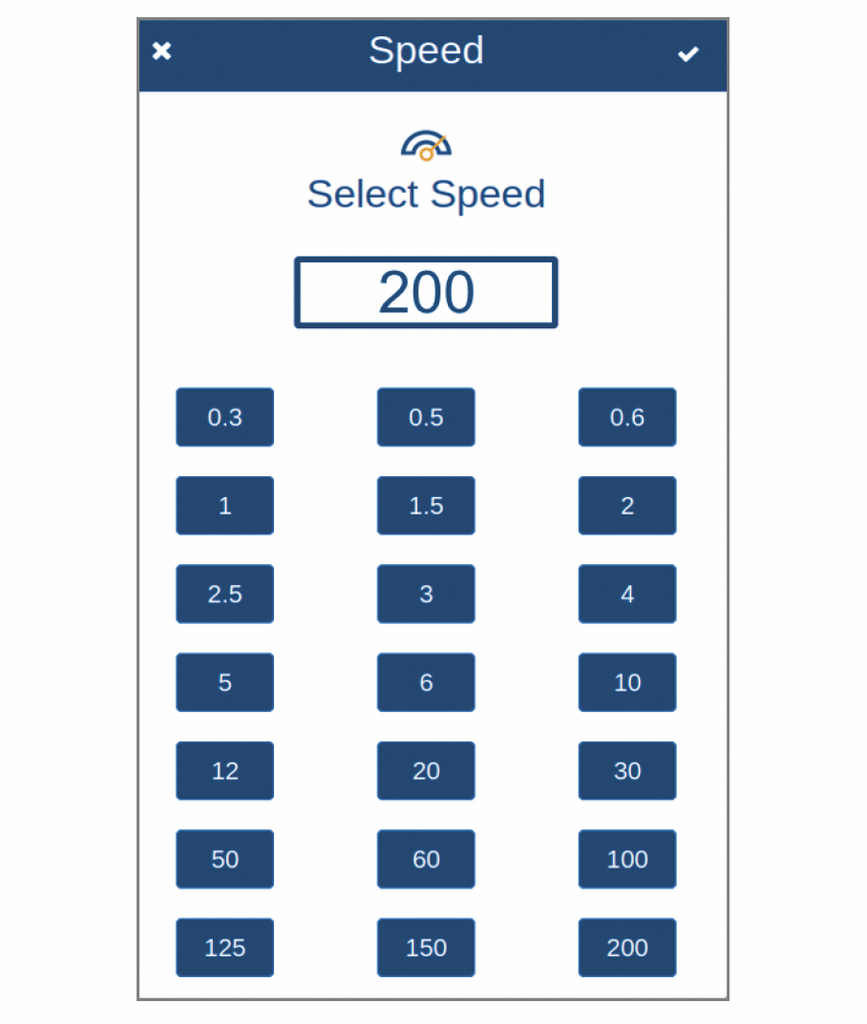

- 21 Predefined speeds from 0.3 to 200 rpm
- Test Modes: Time to Torque, Time to stop
- Optional Temperature probe

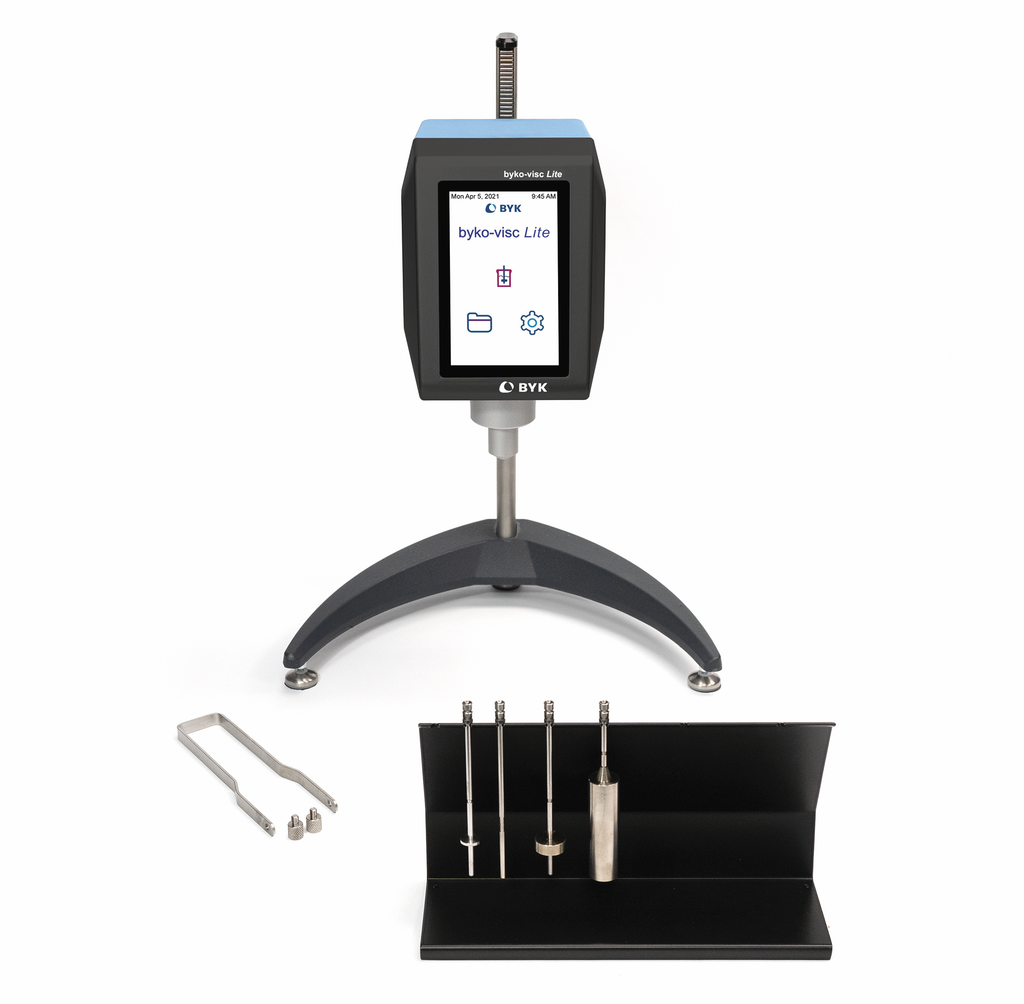

- Includes 6 Spindles:
- Spindle R2 240 -1.06 Mio. cP
- Spindle R3 600 - 2.66 Mio. cP
- Spindle R4 1200 - 5.33 Mio. cP
- Spindle R5 2400 - 10.66 Mio. cP
- Spindle R6 6000 - 26.66 Mio. cP
- Spindle R7 24000 - 106 Mio. cP
Viscosity ranges of R-spindles defined by instrument sensitivity and speed range
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
As a manufacturer, viscosity specifications need to be developed and defined by R&D for the products used in specific conditions – often customization of recipes is required. To ensure a stable viscosity performance in production tests need to be run daily. The new byko-visc RT rotational viscometer provides you all the flexibility needed for any measurement task.
- Measure a wide range of viscosities - Choose your model and enjoy flexibility in measurements
- Electronic bubble leveling with adjustable feet

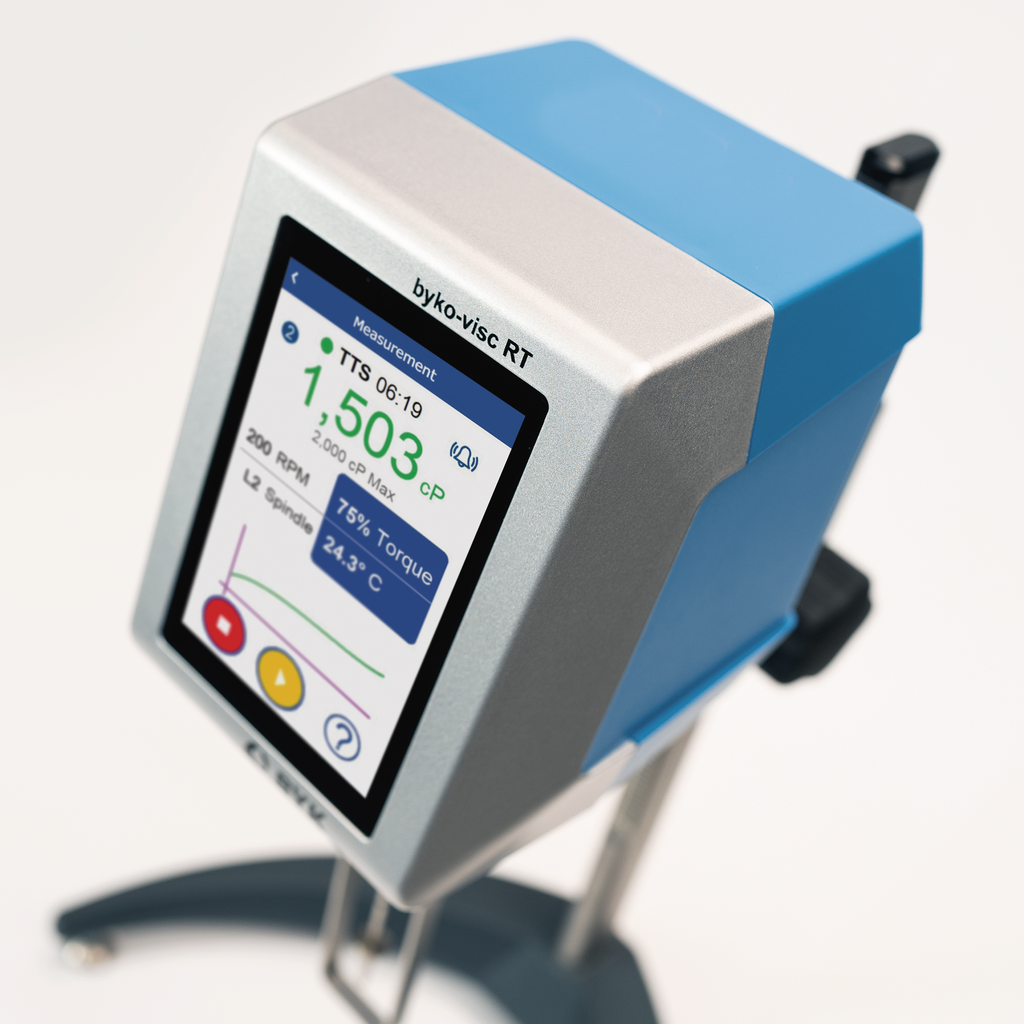

- Brilliant 5" color touch display
- Test Modes: Time to Torque, Time to stop
- USB memory stick / direct to PC connecting

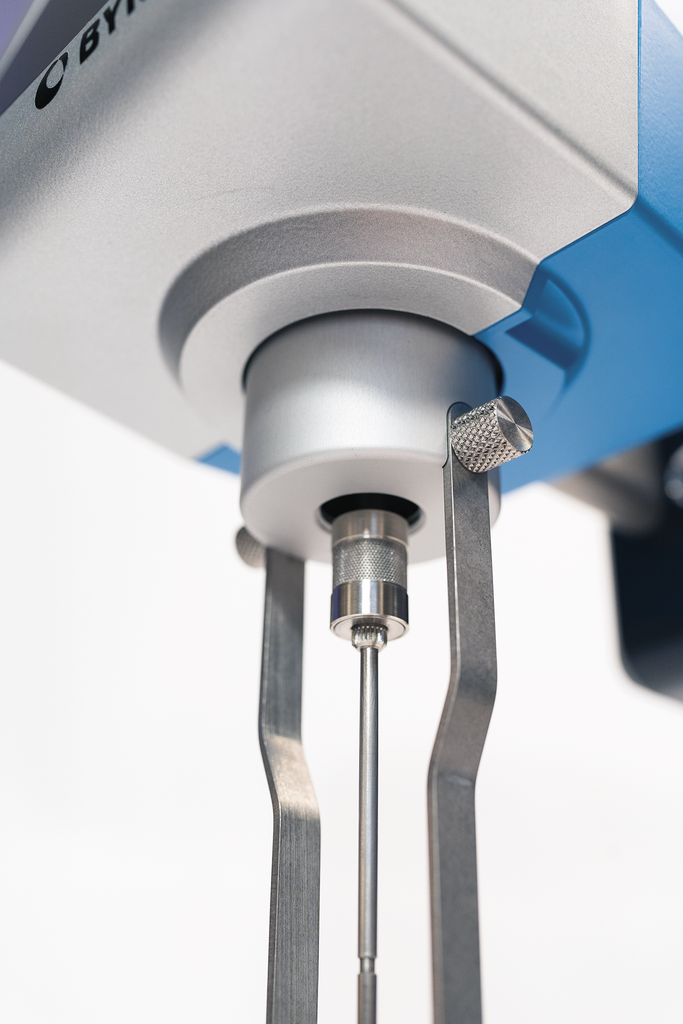

- Quick disconnect spindles with an easy snap-on attachment
- Dymo Label Writer output for sample labeling
- Spindles made of high-quality 316 stainless steel
- CE/UL/CSA Approved
- 17025 certificate included

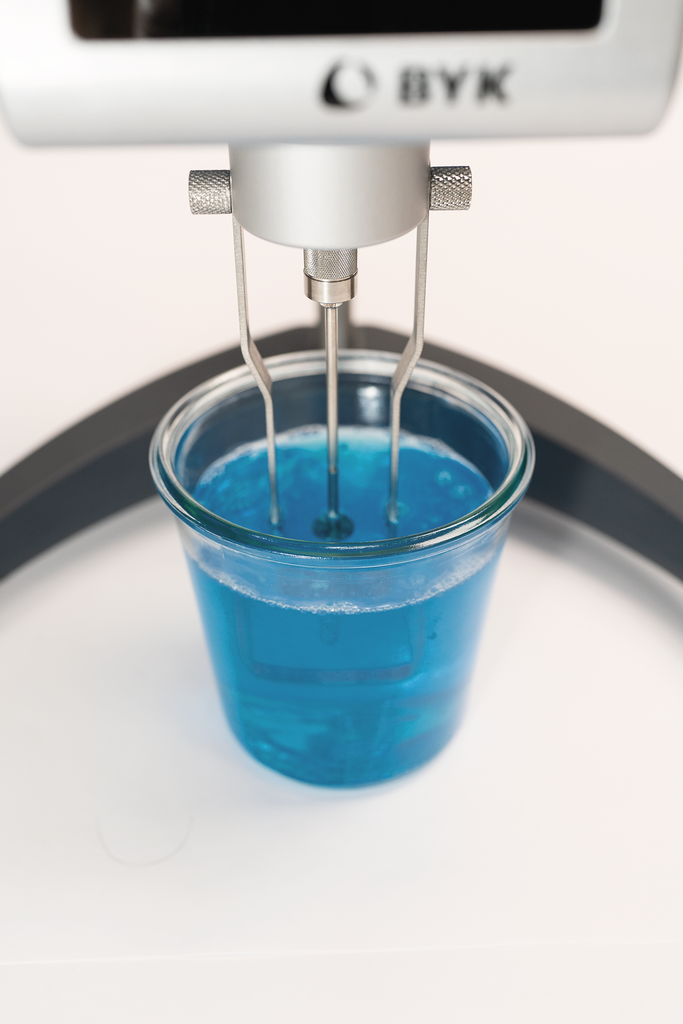

Note: To ensure consistency between measurements, we recommend the usage of a 600 mL glass beaker (see accessories).
consentmanager.net| Technical Specifications | |
|---|---|
| Measuring Range | |
| No. of Speeds | |
| No. of Spindles | |
| Speed Range | |
| Accuracy | |
| Model Type | |
| Repeatability | |
| Spring Type | |
| Max Spring Torque | |
| General | |
| Languages | |
| Power supply | |
| Weight | |
| Weight | |
| Dimensions: L x W x H | |
| Dimensions: L x W x H | |
| ASTM | D2196 |
|---|---|
| ISO | 2555 1652 |
Spindle R2 (4988)
Spindle R3 (4989)
Spindle R4 (4990)
Spindle R5 (4991)
Spindle R6 (4992)
Spindle R7 (4993)
Spindle guard
Spindle rack
Certificate
Power Supply (8360)
Manual
Manuals
- Operating_Manual_byko-visc_RT_Lite-300003479_E_2507.pdf
Operating_Manual_byko-visc_RT_Lite-300003479_E_2507.pdf
Short Instructions
- Short_Instructions_byko-visc_Lite_300003477_300003477_2411.pdf
Short_Instructions_byko-visc_Lite_300003477_300003477_2411.pdf
Safety Instructions
- Safety_Instructions_byko-visc_RT_300003475_2301.pdf
Safety_Instructions_byko-visc_RT_300003475_2301.pdf
Brochure
- Brochure_byko-visc_Family_225026362_E_2502.pdf
Brochure_byko-visc_Family_225026362_E_2502.pdf - Technical-Data-Sheet_byko-visc-RT_20250506.pdf
Technical-Data-Sheet_byko-visc-RT_20250506.pdf
Comprehensive Rheometry Guide
Have you ever wondered why it is, that sunscreen stays inside the bottle when turned upside down, but spreads smoothly when applied on skin? It all has to do with the rheological behavior of a specific material. In this paper we will explore the basics of rheology, how different instruments can measure different aspects of a fluid's behavior and examine the differences between relative and absolute measurement systems by looking at various practical examples.
Read moreGuide to Viscosity Measurement
Viscosity is an important property of liquids to determine how they flow, spread, or level under certain conditions. It can be defined as a liquid's internal resistance to flow. Being able to measure the viscosity will allow to predict the behavior in a process or an application. When applying a paint by roll application the paint viscosity will strongly influence the amount of paint applied per surface area, thereby determining both yield and hiding power. It is crucial for liquid products to undergo a viscosity measurement in incoming and outgoing QC.
