Dry film thickness gauge with fixed and cable sensor

Art. No.: 3674

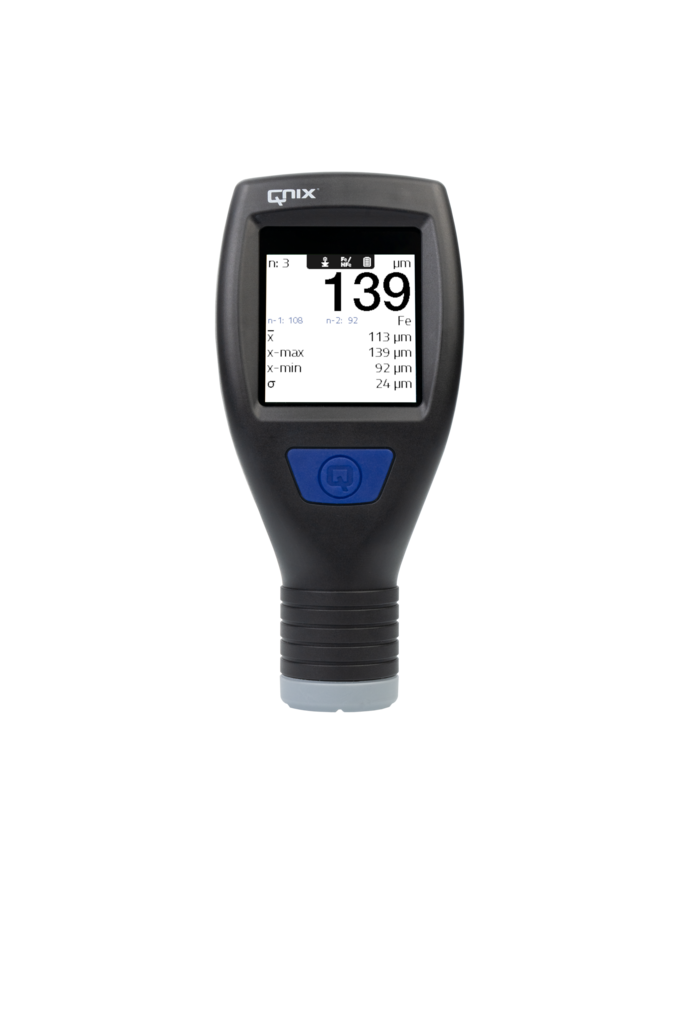

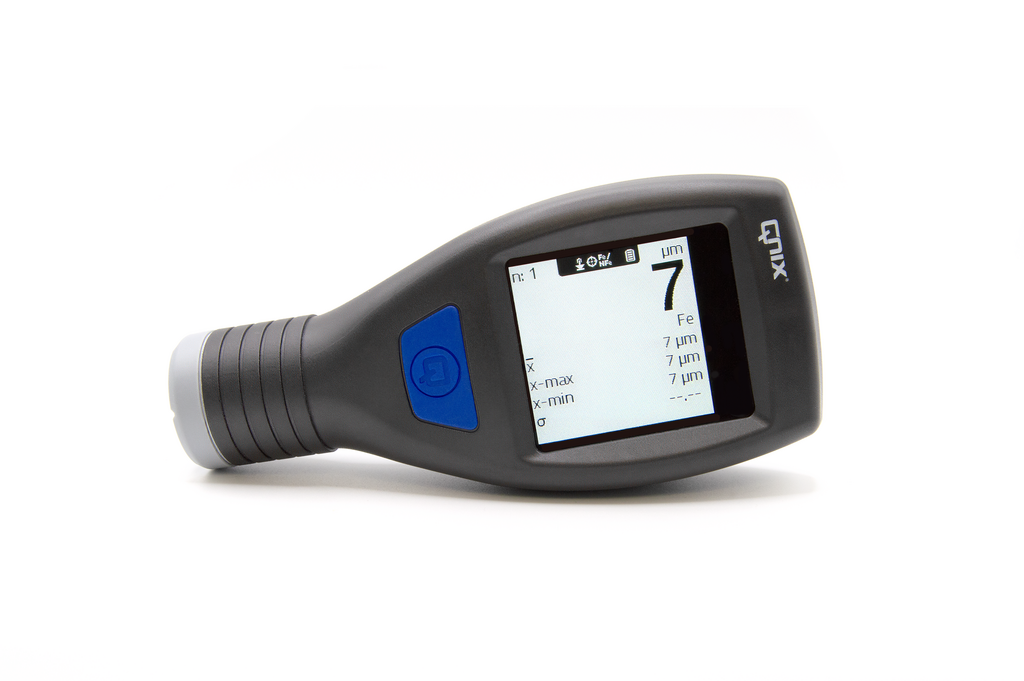

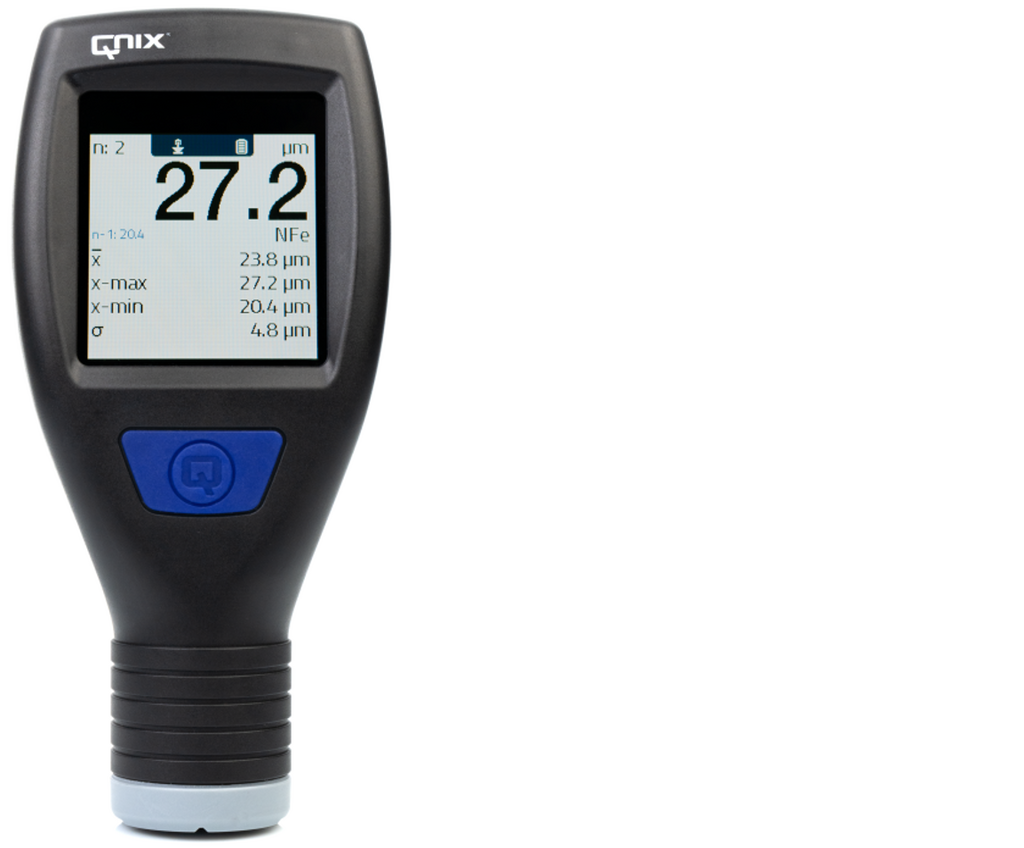

byko-test 4600
Time saving and easy to operate non-destructive film thickness gauge

Compact design for easy handling
One button operation for simple operation

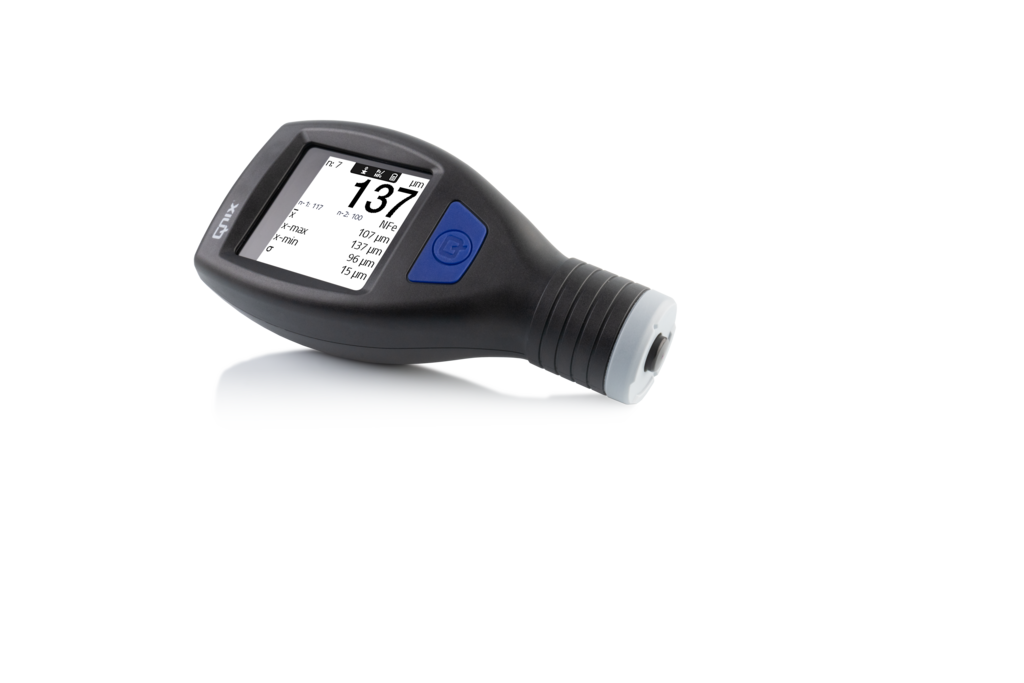

Automatically flipping display
Automatic substrate recognition to minimize measurement error
Strong, wear resistant ruby sensor tip
Acoustic signal for measurement confirmation

Select your Model

Coating Thickness Gauges

$895.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The byko-test Series of dry film thickness gauges has a modular design to accommodate a wide range of applications.

The 9500 Series comes with removable probes and a cable sensor while the 4600 comes with a fixed probe. Both feature easy and intuitive operation and reliable and precise results.

Thickness Measurement
Measuring Range Mils / µm	0 - 47 mil 0 - 1200 µm
Probe	Dual Fe/NFe 1.2 mm
Measuring Range	0 - 47 mil
Measuring Range	0 - 1200 µm
Accuracy	Fe: ±1 µm + 2% of measured value Fe: ±0.04 mil + 2% of measured value NFe: 2 µm + 2% of measured value NFe: ±0.08 mil + 2% of measured value
Measuring area, min.	0.55 in ø
Measuring area, min.	14 mm ø
Minimum Curvature	Fe: 0.39 in ; NFe: 1.96 in
Minimum Curvature	Fe 10 mm; NFe 50 mm
Minimum substrate thickness	Fe: 3.9 mil ; NFe: 1.96 mil
Minimum substrate thickness	Fe: 100 µm; NFe: 50 µm
Resolution	Adjustable: 0,1 µm (0,1 mils) or 0,01 µm (0,01 mils)
General
Memory	no
Interface	USB
Power supply	2 x AA Batteries 1.5 V Alkali, or rechargeable AA 1.2 V
Weight	0.1 kg
Weight	0.22 lb
Operating temperature	0 - 50 °C
Storing temperature	-20 - 70 °C
Operating temperature	-4 - 158 °F
Storing temperature	-4 - 158 °F
Relative humidity	10 to 90%, non condensing
Dimensions: L x W x H	13.5 x 6.3 x 4.3 cm
Dimensions: L x W x H	5.3 x 2.5 x 1.7 in

byko-test 4600
Fe and NFe reference plate
Calibration certificate
2 Mignon batteries 1,5 V (AA) alkaline
Plastic case for transport and storage

17025 Certified Shim 6.35µm (.25mil)

Article No: 14576

Price: $89.00

17025 Certified Shim 12.7µm (.50mil)

Article No: 14577

Price: $89.00

17025 Certified Shim 19.05µm (.75mil)

Article No: 14578

Price: $89.00

17025 Certified Shim 25.4µm (1.0mil)

Article No: 14579

Price: $89.00

17025 Certified Shim 38.1µm (1.5mil)

Article No: 14580

Price: $89.00

17025 Certified Shim 50.8µm (2.0mil)

Article No: 14581

Price: $89.00

17025 Certified Shim 76.2µm (3.0mil)

Article No: 14582

Price: $89.00

17025 Certified Shim 101.6µm (4.0mil)

Article No: 14583

Price: $89.00

17025 Certified Shim 127µm (5.0mil)

Article No: 14584

Price: $89.00

17025 Certified Shim 190.5µm (7.5mil)

Article No: 14585

Price: $89.00

17025 Certified Shim 254µm (10mil)

Article No: 14586

Price: $89.00

17025 Certified Shim 317.5µm (12.5mil)

Article No: 14587

Price: $89.00

17025 Certified Shim 381µm (15mil)

Article No: 14622

Price: $89.00

17025 Certified Shim 508µm (20mil)

Article No: 14623

Price: $89.00

byko-test 9500 Premium+

Premium DFT gauge Fe/NFe Substrates with fixed and cable sensor

Article No: 3677

Price: $1,730.00

byko-test 9500 Basic

Basic DFT gauge Fe/NFe Substrates with fixed and cable sensor

Article No: 3676

Price: $1,410.00

ASTM	B499 D1186 D1400 D7091
BS	3900-C5 5411-3 5411-11
DIN	50981 50984
ISO	2178 2360 2808
