byko-swing Persoz the pendulum hardness tester from BYK-Gardnerr

Pendulum Hardness Tester

Art. No.: 5866

byko-swing Persoz
Damping method for soft coatings - automatic version

  • Includes base unit and Persoz pendulum
  • Can also be used for Persoz method with optional König pendulum

Select your Model

$8,075.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Fully automated instrument for measuring pendulum hardness in accordance with the König and Persoz methods.

  • Automated design ensures reliable and repeatable measurement of coating hardness by reducing operator intervention

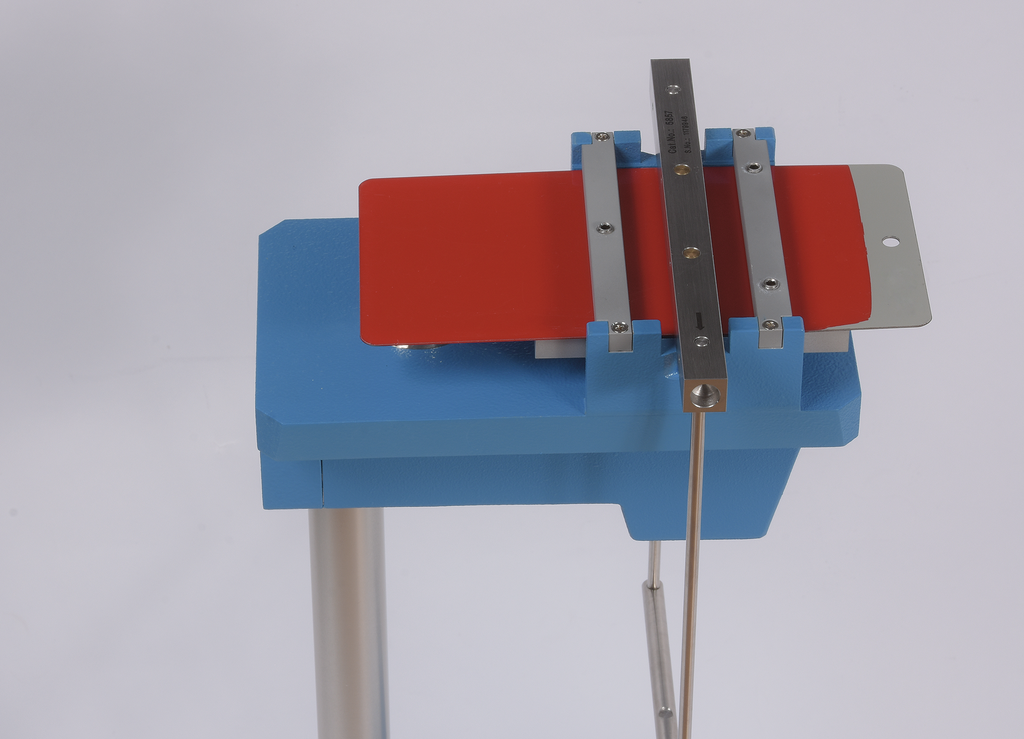

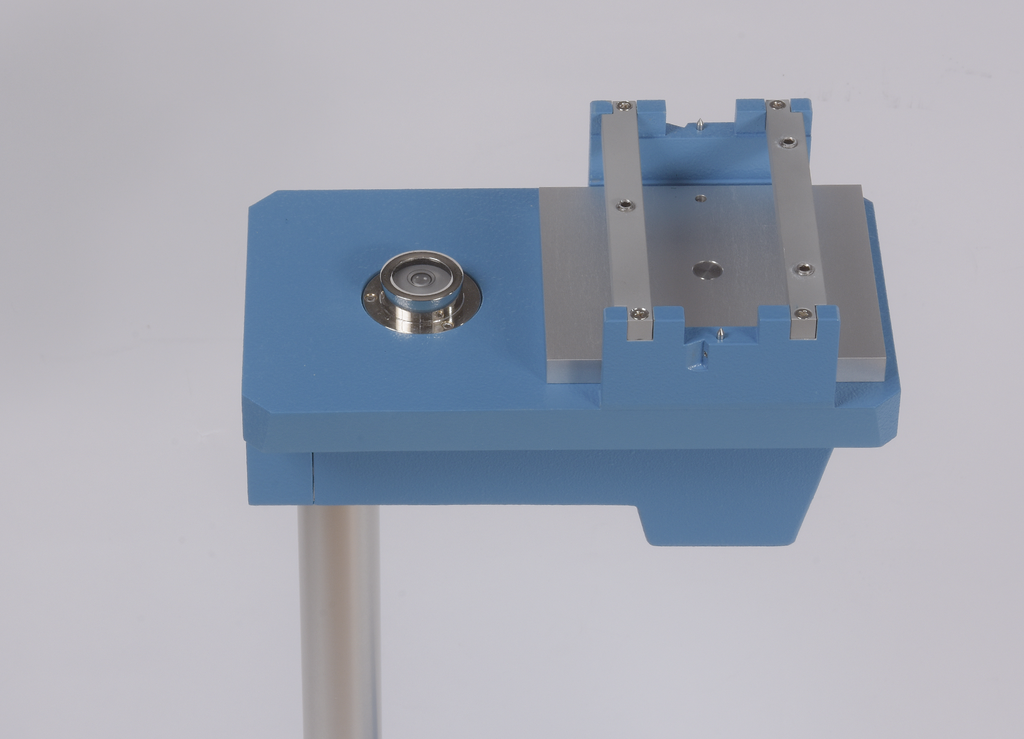

  • Motorized sample platform lifts the sample into the test position
  • Pendulum is positioned and released automatically
  • Automatic counter with signal when deflection is below 3° (König) or 4° (Persoz) respectively
  • Changeable from König to Persoz and vice versa with corresponding pendulum

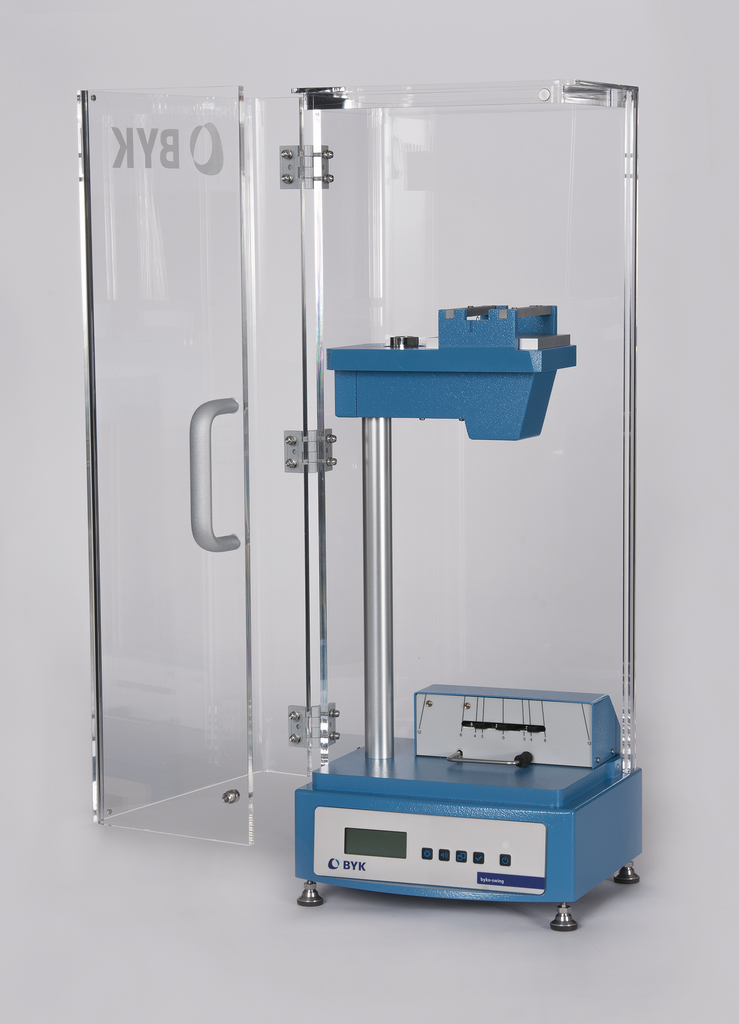

  • Pre-assembled draft shield with easy access door
  • UL/CE/CSA certification
  • Compliant with ASTM D4366 and ISO 1522
  • Smallest sample size: 65mm x 75mm (2.6 x 3.0 inches)
  • Largest sample size: 102mm x 229mm (4.0 x 9.0 inches)
  • Maximum sample thickness : 8.5mm (0.33 inches)
  • Minimum sample thickness is limited by the rigidity of the sample.
We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net

View more videos

Technical Specifications
Ball Diameter8 mm
Damping Time on Glass430 s ± 10 s, according to ISO
Deflection Start/End12° / 4°
Period of Oscillation1 s
Weight500 g ± 0.1
General
Power supply100 - 240 V, 50/60 Hz, max. 1 A
Weight18.4 kg
Weight40.6 lb
Dimensions: L x W x H25 x 28 x 77 cm
Dimensions: L x W x H10 x 11 x 30.3 in
ASTM
D4366
ISO
1522

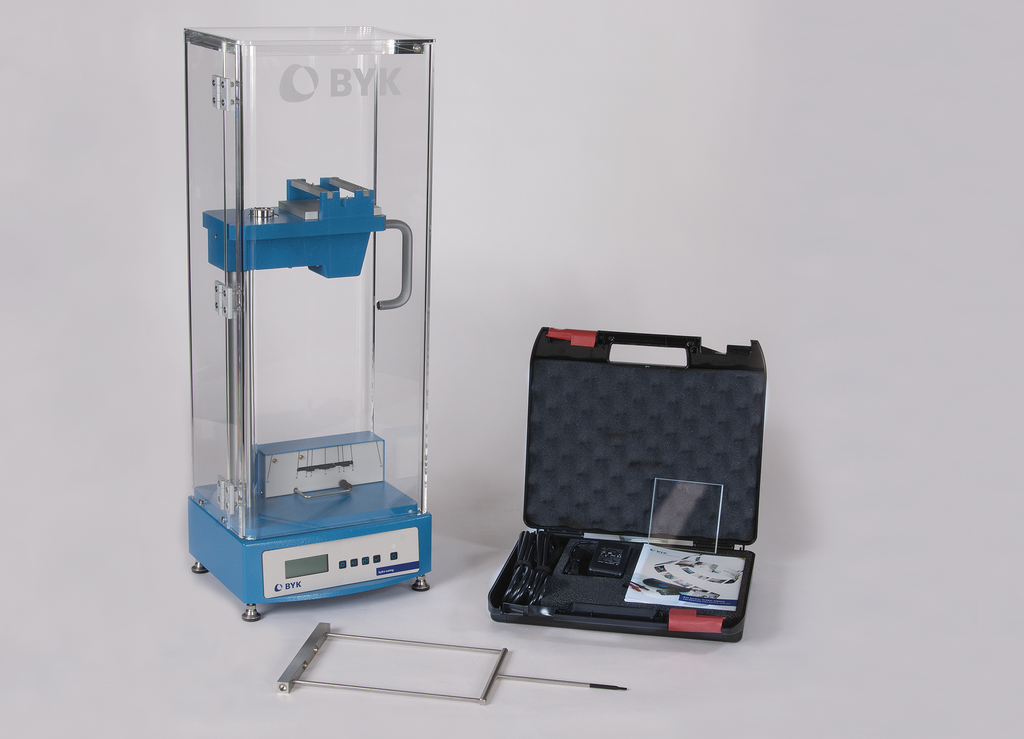

Pendulum hardness tester
Protective cover

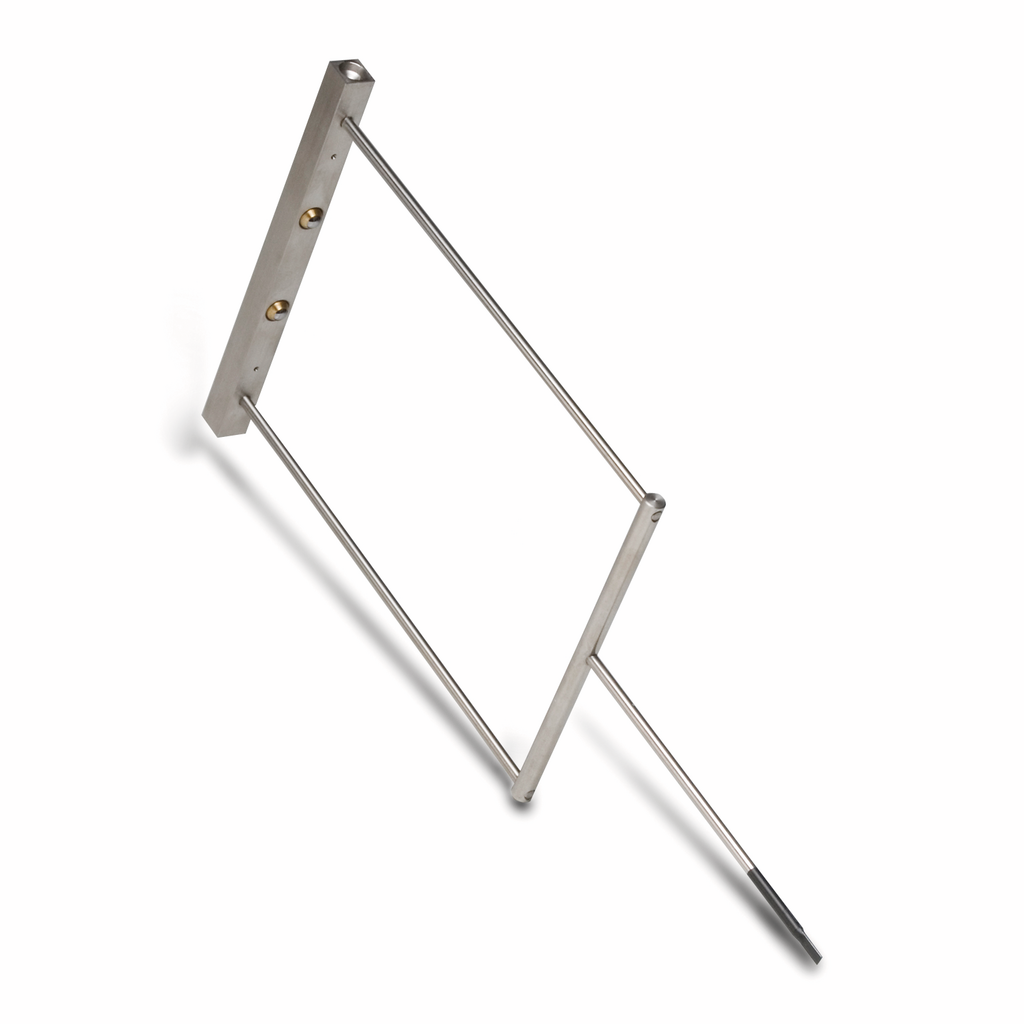

Pendulum Persoz (5857)

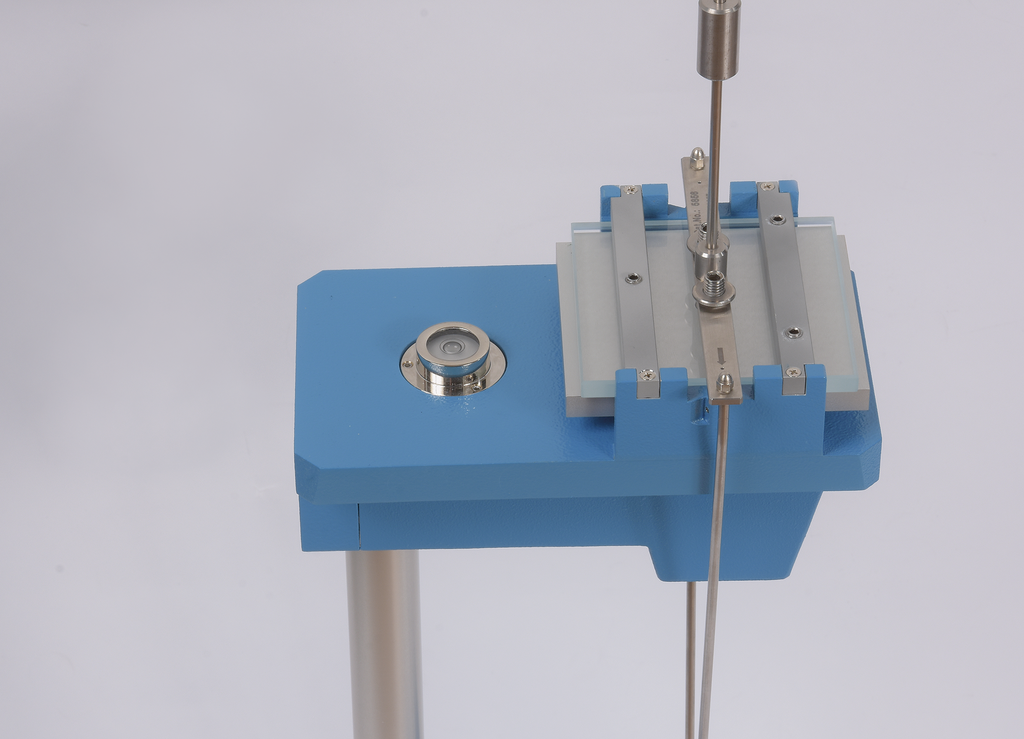

Glass calibration standard
Open-end wrench to adjust instrument feet
Power supply
Calibration certificate
Manual

Manuals

Short Instructions

Safety Instructions

Brochure

Pendulum Hardness Test

The hardness and flexibility of a coating are opposing functionalities that need to be optimized to achieve the right balance for a specific application. A coating should have a high hardness on the one hand and be elastic at the same time. The pendulum test is used to evaluate elasticity by measuring the damping time of an oscillating pendulum. Measurement principle, test method including sample preparation and expected measurement precision are explained with typical examples from the practice.
