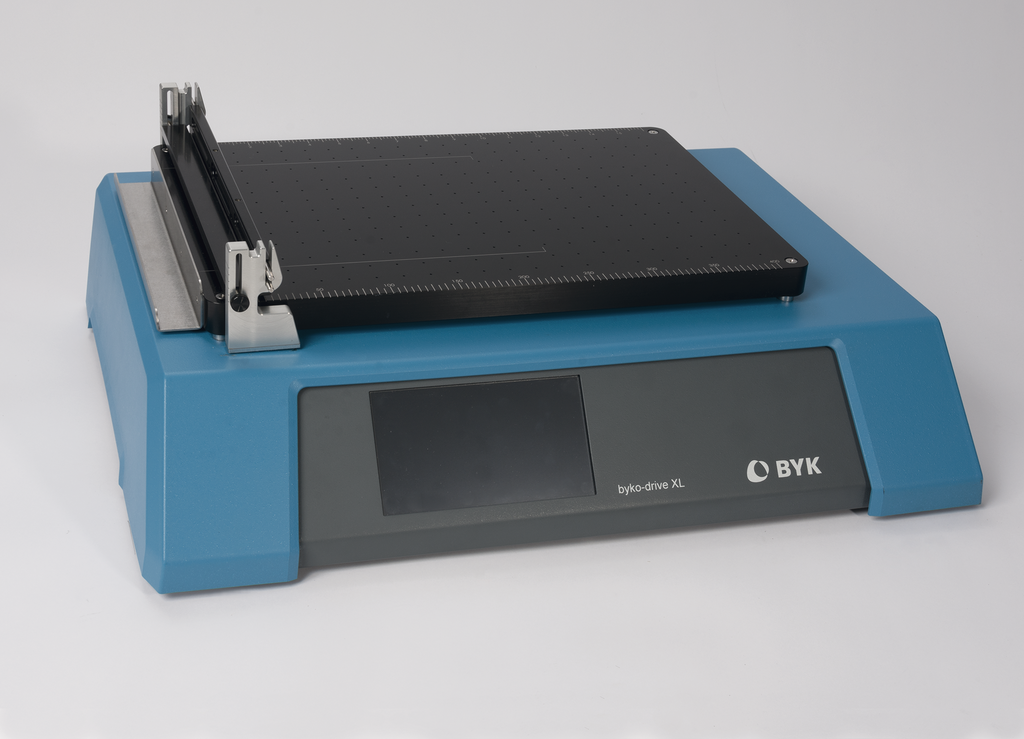

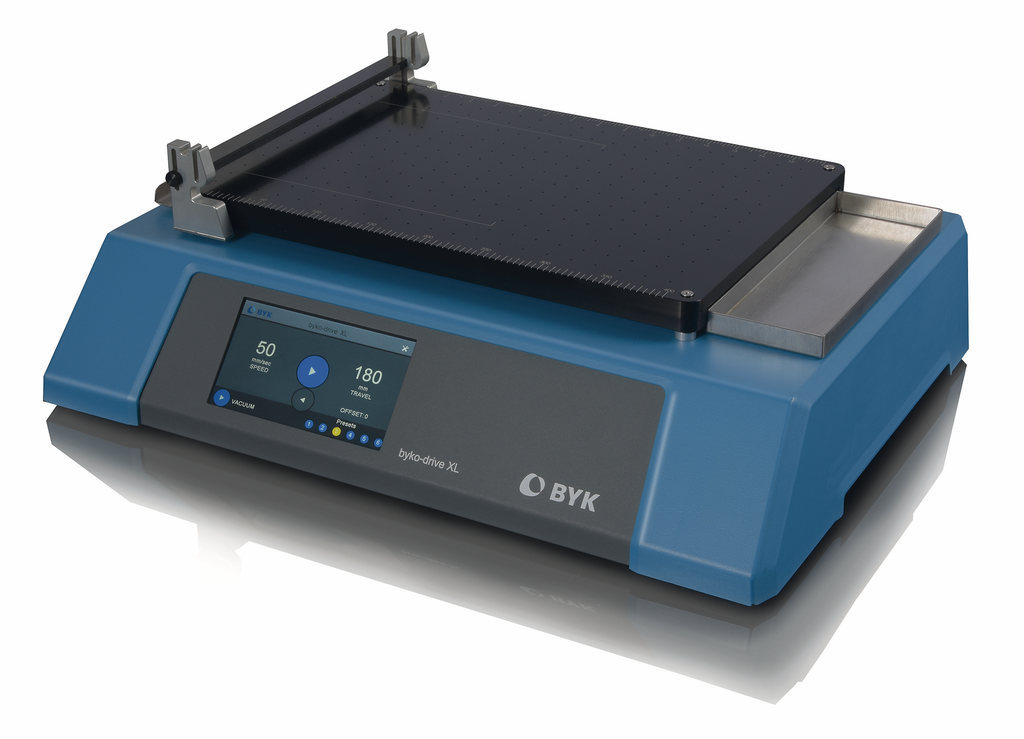

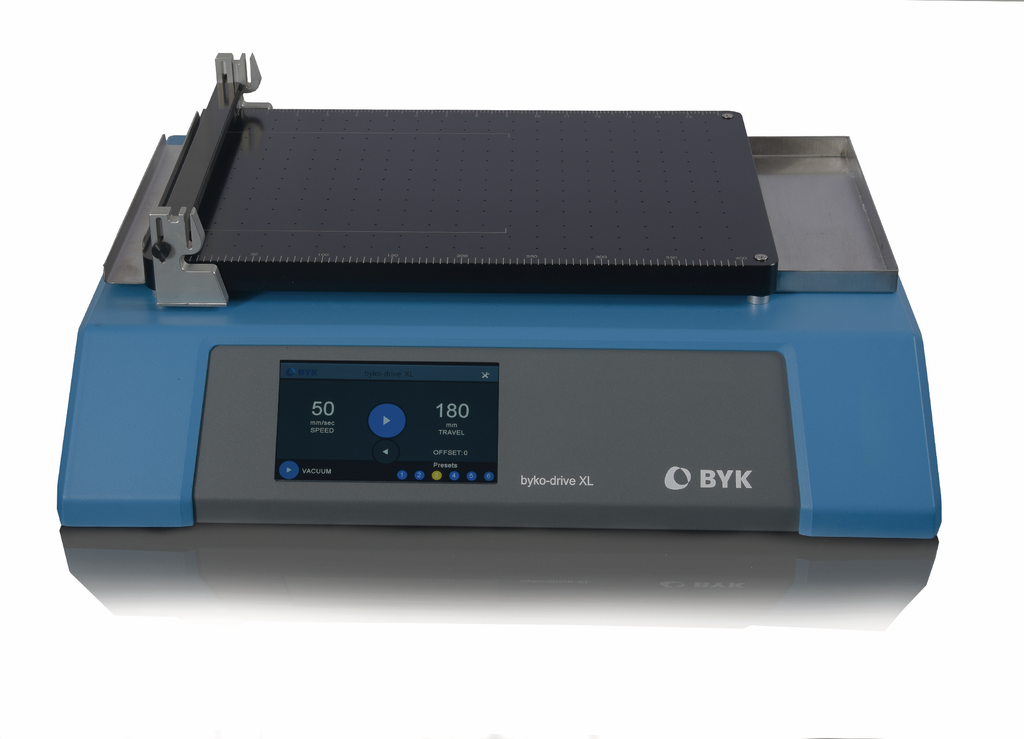

Byko-drive XL, V with vacuum plate from BYK-Gardner

Large Automatic Film Applicator

Art. No.: 2131

byko-drive XL, w/Vacuum plate
Automatic Film Applicator, large with vacuum plate

  • Two zone vacuum plate to fix and flatten substrates
  • Built in vacuum pump

Select your Model

$9,080.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

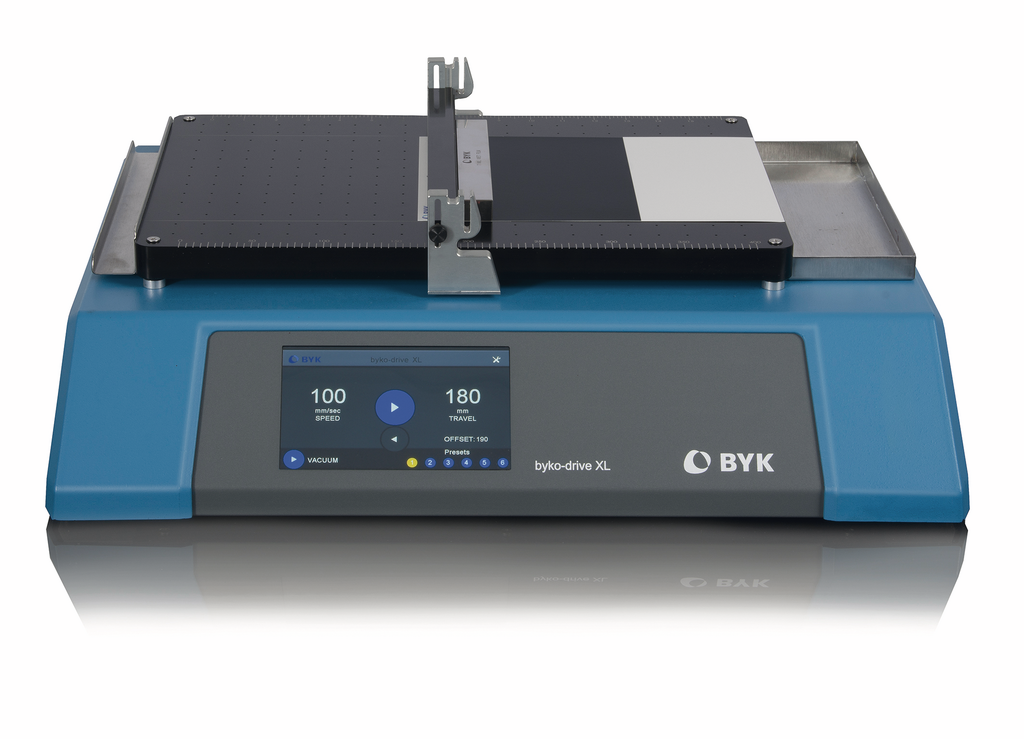

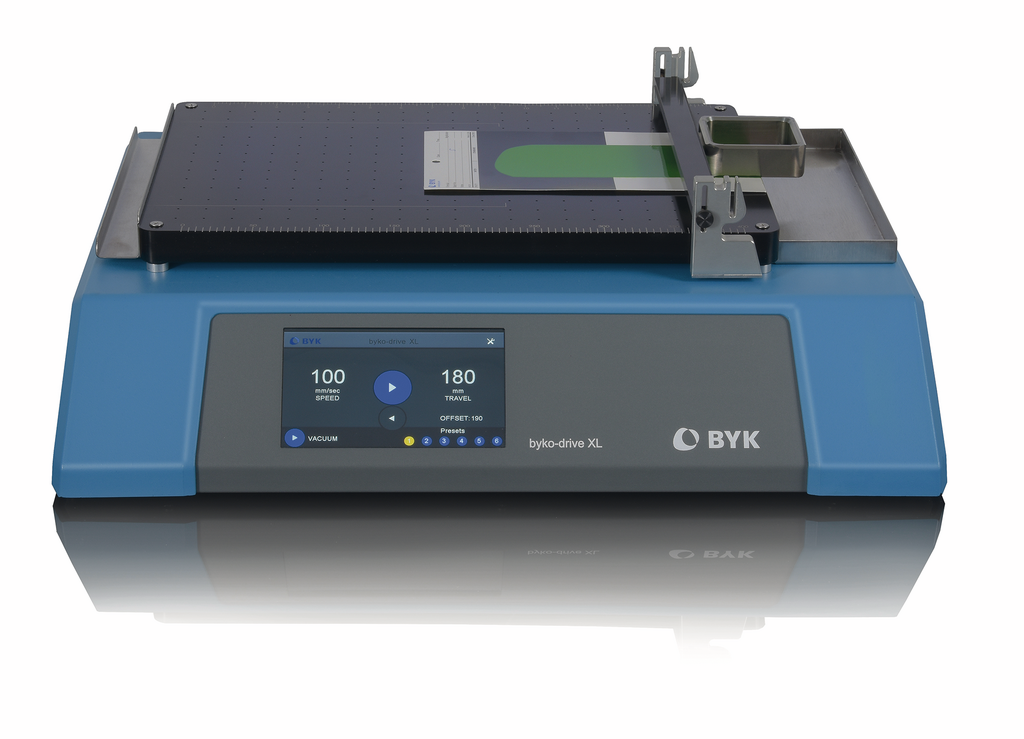

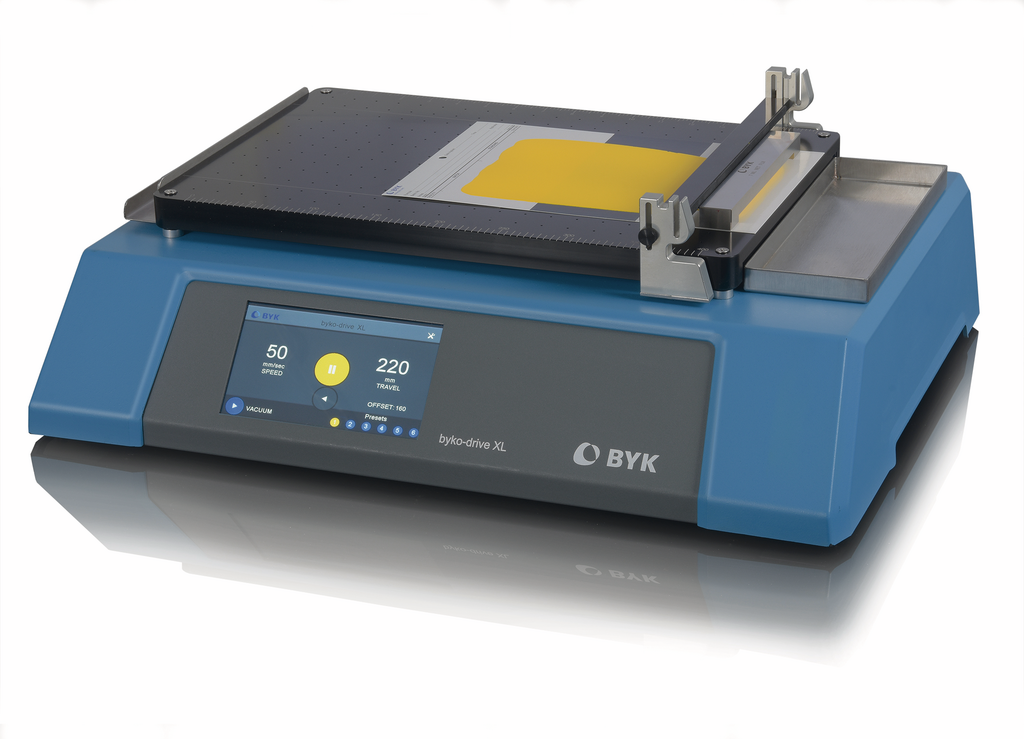

The byko-drive XL Automatic Film Applicator has a large vacuum plate or glass plate version to accommodate all drawdown chart sizes.

  • User selectable speeds 5 - 500 mm/s

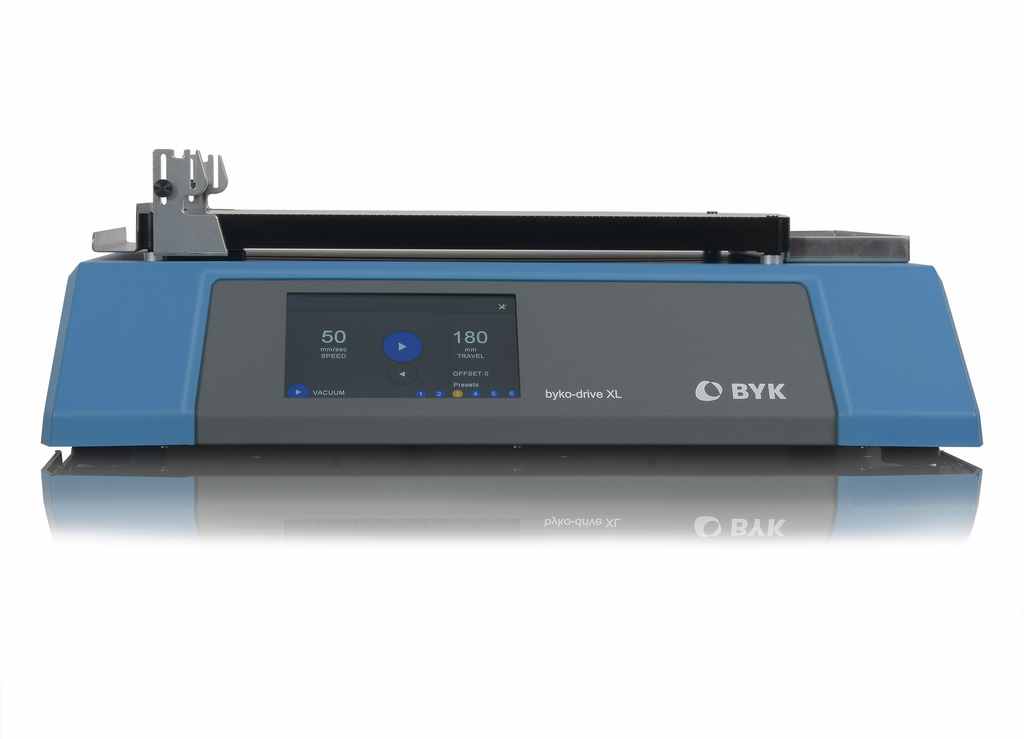

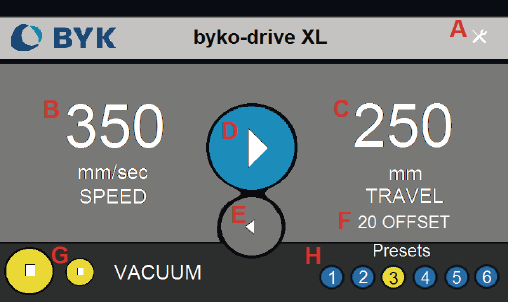

  • Touchscreen display for easy operation
  • User selectable start/stop positions
  • Memory to store set-up programs
We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net

View more videos

Technical Properties
Gap push-bar / plate0.08 - 1.54 in
Gap push-bar / plate2 - 39 mm
Maximum vacuum0.67 bar (20 inHg)
Platformwith vacuum plate
Push-bar Weight0.5 kg (up to 1.5 kg with optional weights)
Set-up Memory6
Test panel size maximum11.2 x 17.2 in
Test panel size maximum28.5 x 43.8 cm
Traverse speeds5 - 500 mm/s (0.2 - 19.6 in/s)
Traverse speed accuracy1% of set speed
Wire bar diametermax. 0.6 in
Wire bar diametermax. 15 mm
Wire bar length maximum24 in
Wire bar length maximum60 cm
Stroke lengthmax. 15.7 in
Stroke lengthmax. 40 cm
General
Power supply100 - 240 V, 50/60 Hz
Weight17 kg
Weight37.4 lb
Dimensions: L x W x H61 x 44.5 x 20.4 cm
Dimensions: L x W x H24 x 17.5 x 8 in
ASTM
D823
D4147
ISO
11998
byko-drive XL with vacuum plate
Push-bar weight, 500g (2135)
External Power supply
Power cords (US,EU)
Drip pan, XL (2137)
Manual

Manuals

Short Instructions

Safety Instructions

Brochure
