TQC Automatic Film Applicator Standard

Art. No.: 15236

Auto Film Applicator,Heated Vac Bed 115V

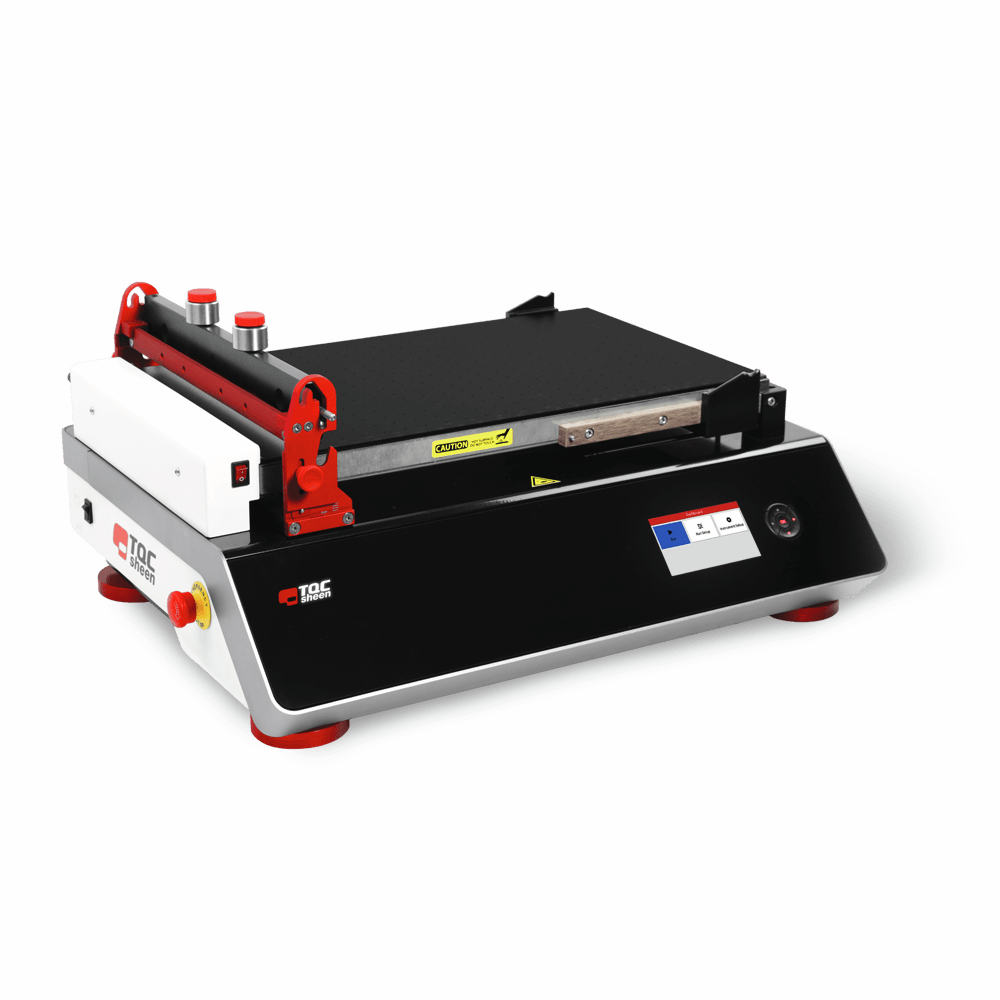

Automatic Film Applicator with Perforated Heated Vacuum Bed
Built-in heating mat which allows temperature of the table to be elevated up to +100°C above ambient temperature
The powerful heating device guarantees an even distribution of the temperature over the entire vacuum plate
115V

Select your Model

Paint Application

$14,340.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Provides a reliable basis to apply coating films to test charts, panels or foils in a uniform and reproducible way in order to eliminate variations caused by human factors
Eliminates variations in speed, pressure and direction of draw down that can cause irregularities
Charts up to A3 and scrub size max.
Compatible with a large range of application tools
Produce a large number of identical laboratory precision draw downs in a short period of time.
Drying Time Recorder option
Preset range option
Easy intuitive operating interface with Triple i Control (Intelligent Illumination Interface)
Paper Clamp / Vacuum manually operable
Full color display
Easy to update software
Great for: Coatings Laboratories, Paint Production, Surface Finishing and Powder Coating
Multiple types of automatic film applicators are available for either glass/paper/metal substrates or foils.

Technical Data Chart

Data

Traverse Speed:	0.1 - 500 mm/s
Traverse Speed Accuracy:	+/- 1% of set speed
Stroke Length:	50 – 430mm / 1.97 – 16.93 in
Stroke Length Accuracy:	+/- 2 mm / +/- 0.08 in
Max. Test Chart Size:	515 x 300 mm / 20.28 x 11.81 in
Max. Test Chart Thickness:	9 mm / 0.35 in
Max. Thickness of Test Substrate:	35 mm / 1.38 in incl. coating
Max. Vacuum Area:	DIN A3 / Scrub
Automatic Vacuum Areas:	DIN A5, DIN A4, DIN A3, Scrub
Wire Bar Spiral Area:	max. 325 mm / max. 12.8 in
Min. Wire Bar Length:	345 mm / 13.58 in
Max. Wire Bar Diameter:	10 mm / 0.39 in at fixation points
Width Alternative Applicators:	max. 300 mm / max. 11.81 in
Height Alternative Applicators:	10 -80 mm / 0.39 - 3.15 in
Dimensions and Weight	Depth: 490 mm / 19.29 in Width: 640 mm / 25.2 in Height: 290 mm / 11.42 in Net weight: 33 kg
Power Supply:	100 - 240 V / 50 - 60 Hz
Power Consumption:	max. 50 W
Display:	480 x 272 pixel TFT display
Controls:	5-key Navigation Switch, Mouse and Keyboard (optional)
Menu Languages:	English, Spanish, Chinese, Polish, German, French, Italian, Japanese, Russian
