NAR Abbe Refractometers

Art. No.: 13006

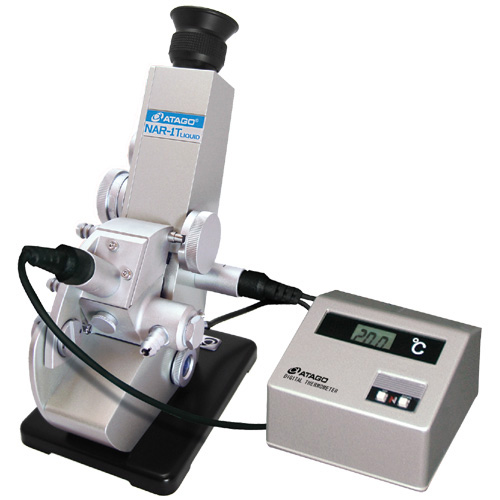

Atago NAR Abbe Refractometer

The NAR Abbe Rerfactometer for liquid sample measurement only. It has the Refractive Index Scale and the BRIX scale, and it comes with D line (589nm) light source.

Select your Model

$5,566.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • Calibration can be done with distilled water.
  • The NAR-1T-Liquid is an Abbe refractometer designed for customers who will only be measuring liquid samples at temperatures below 50°C.
  • This unit cannot be used to measure solid samples or calculate dispersion values.

Technical Data Chart
Data
Refractive Index Range:nD 1.3000 - 1.7000
R.I. Min. Scale:nD 0.001
Brix Percentage Range:0.0 - 95.0%
Brix Min. Scale:0.5%
Accuracy of R.I. & Brix:±0.0002, ±0.1%
Digital Thermometer:0.0 - 50.0°C (±0.2°C) / Min. Indication 0.1°C
Power Supply:100 -120, 220 - 240VAC / (Select one when ordering)
Size and Weight:
Refractometer:13 x 18 x 23cm, 3.4g
Thermometer:8 x 10 x 11cm, 0.8kg
Atago NAR Abbe Refractometer
  • NAR-1T-Liquid - Main prism for IT Liquid
  • Secondary prism for IT Liquid
  • Thermo sensor unit C
  • Lamp for illuminator LED
  • Lamp cable
  • Tube band
