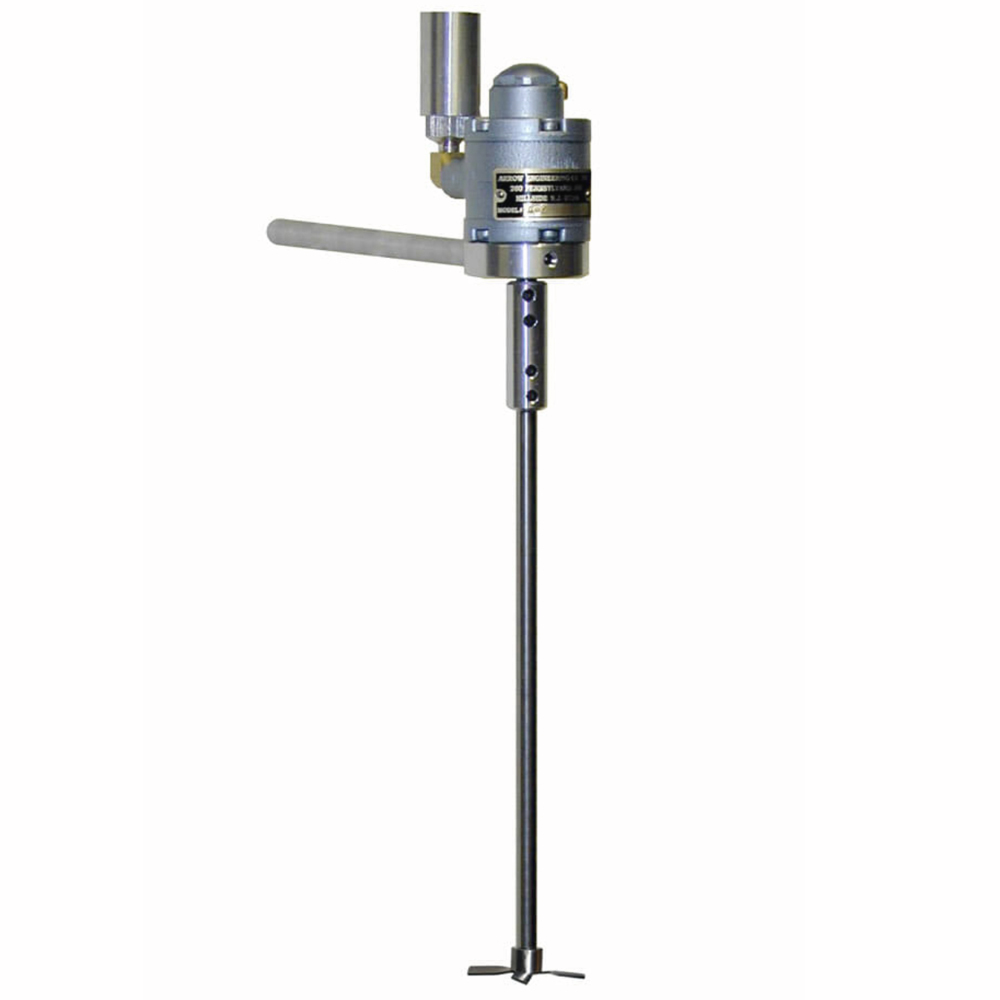

Arrow Air Mixer A-5

Arrow Air Mixers

Art. No.: 12294

Arrow Lt/Med/Heavy Mixer, Model A-5

  • Arrow Model A-5 Light/Medium/Heavy Air Mixer
  • 1/2 horsepower
  • 100 liter
  • 7,000 RPM

Select your Model

$691.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Air-Powered Mixers are explosion proof which eliminates the possibility of spark ignition when working with volatile chemicals, solvents, lacquers, and other flammable solutions. This makes Arrow's industrial stirrers perfect for laboratory use. Both reversible and non-reversible air mixers which are capable of handling your high speed, high torque mixing applications. These overhead stirrers come equipped with a needle valve to control your mixing speed. We recommend using a filter/regulator in your air supply and an air-line lubricator for a long and trouble-free motor life in our pneumatic mixers. All explosion proof air driven mixers come standard with an aluminum support rod, a four-foot air hose, and a 316 stainless steel shaft and propeller.

  • All Arrow Mixer models are state of the art in laboratory stirrers
  • Specifically designed with the workplace in mind
  • High-quality, affordable, industry-leading industrial and laboratory mixers, stirrers and machine accessories.
  • Used in a wide array of industries, including the pharmaceutical, food, cosmetic, chemical and agricultural industries.
  • All mixers will work with both stand options, clamps required (neither included).
  • The Universal Clamp 1/2-3/4” (12485) and the Swivel Clamp (12515) will work with both stands.
  • The Universal Clamp 3/8-5/8” (12484) will only work with the 5/8” Support Stand (12300)

Technical Data Chart
Data
Air Mixer:12294
Model:A-5
Horsepower:1/2
Batch Size Water:100 liters
Description:Light/Medium duty
Gear Ratio:Direct
Max. RPM:7,000
Torque:*6 in-lbs
Air Input psi:30 to 100
Air Consumption:*27 cfm
Motor Shaft Diameter.:3/8"
Shipping Weight:5 lbs (2.3 kg)
*Torque values and air consumption given at air pressure of 80 psi and motor speed 6,000 rpm and 2,000 rpm for Type 750 and Type 1500.
CSA
C22.2 NO. 1010.1
UL
3101-1
Arrow Lt/Med/Heavy Mixer, Model A-5

3/8" dia x 12" propeller shaft, 2-1/2" dia propeller, Aluminum Coupling, 9/16" dia x 10" mounting rod, 4 foot hose, 3/8" dia x 12" propller shaft, 2-1/2" dia propeller, muffler (#19)
