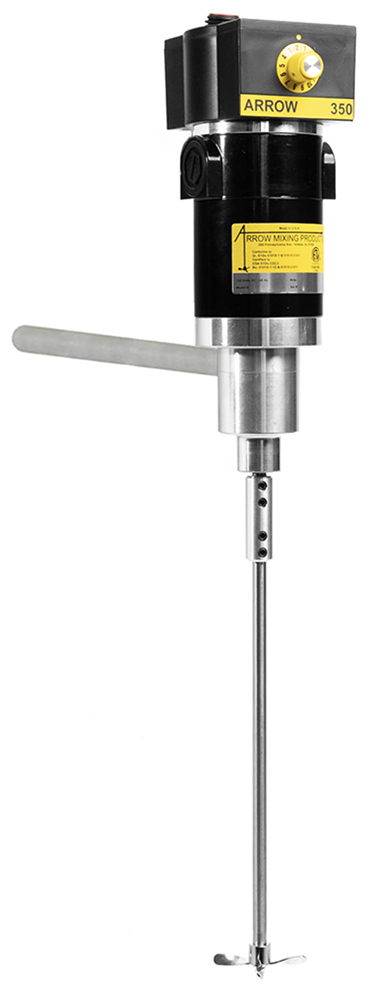

Arrow 350 Mixer

Arrow Stirrers and Mixers

Art. No.: 12214

Arrow Heavy Duty Mixer, Model 350

  • Arrow Model 350 Heavy Duty Electric Mixer
  • 1/15 horsepower
  • 50 liter
  • 350 RPM

Select your Model

$1,129.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Laboratory Electric Stirrers and mixers feature a totally enclosed non-ventilated mechanical motor that keeps dust and corrosive fumes out for a longer, more trouble-free service life. These overhead electric motorized stirrers allow for easy electronic regulation of the mixing speed and all models come equipped with overload protection. These electric mixers & stirrers also come equipped with an enclosed control box which safely guards vital components from corrosive splashes or spills. All electric stirrer models come standard with an aluminum support rod, a three wire cord with grounded plug, and a 316 stainless steel shaft and propeller which resist most acids and chemicals.

  • All Arrow Mixer models are state of the art in laboratory stirrers
  • Specifically designed with the workplace in mind
  • High-quality, affordable, industry-leading industrial and laboratory mixers, stirrers and machine accessories.
  • Used in a wide array of industries, including the pharmaceutical, food, cosmetic, chemical and agricultural industries.
  • All mixers will work with both stand options. Stands and clamps required, not included.
  • The Universal Clamp 1/2-3/4” (12485) and the Swivel Clamp (12515) will work with both stands.
  • The Universal Clamp 3/8-5/8” (12484) will only work with the 5/8” Support Stand (12300)

Technical Data Chart
Data
Electric Mixers:122291220912238122141220812211
Model:6000175085035012002000RV
Horsepower:1/101/151/101/151/81/9
Batch Size Water:20 liter20 liter100 liter50 liter100 liter200 liter
Description:Light DutyMedium DutyMedium/Heavy dutyHeavy DutyHeavy DutyHeavy Duty
Gear Ratio:DirectDirect7 to 17 to 1DirectDirect
Max. RPM:6,0002,0001,0003501,2002,000
Torque:1.05 in-lbs2.43 in-lbs7.35 in-lbs14.5 in-lbs6.6 in-lbs4.6 in-lbs
Power:120 VAC 60 Hz or 230 VAC 50 Hz120 VAC 60 Hz or 230 VAC 50 Hz120 VAC 60 Hz or 230 VAC 50 Hz120 VAC 60 Hz or 230 VAC 50 Hz120 VAC 60 Hz120 VAC 60 Hz
Consumption Amp:0.80.81.40.81.51.3
Motor Shaft Diameter:3/8"3/8"3/8"3/8"3/8"3/8" (Propellar Diameter: 4 1/2")
Weight:9 lbs (4.0 kg)9 lbs (4.0 kg)11 lbs (5.0 kg)11 lbs (5.0 kg)11 lbs (5.9 kg)11 lbs (4.5 kg)
CSA
C22.2 NO. 1010.1
C22.2 NO 68
UL
3101-1
Arrow Heavy Duty Mixer, Model 350

3/8" dia. x 12" Propeller Shaft, 2-1/2" dia. Propeller, Aluminum Coupling, 9/16" dia. x 10" Mounting Rod, and 6ft Power cord w/grounded plug
