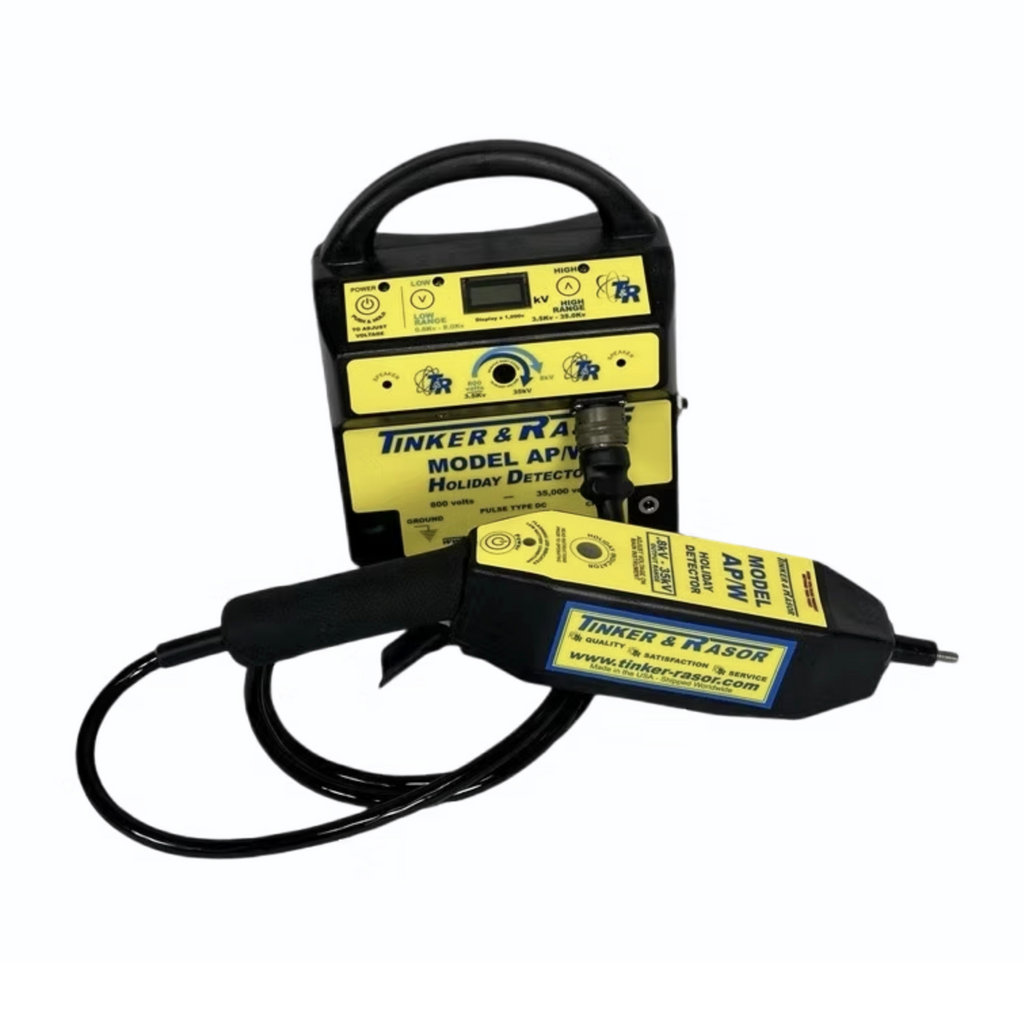

AP/W Holiday Detector

AP/W Holiday Detectors

Art. No.: 11848

AP/W Holiday Detector Kit, 8" Wire Brush

The AP/W Holiday Detector is high voltage holiday detector kit with an 8" wire brush electrod, providing holiday detection with the application flexibility to move from pipe, to tank, to concrete and beyond.

Select your Model

$4,279.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • 800 volts to 35,000 volts in 100 volt increments
  • Safety cutoff switch
  • LCD output meter
  • Audible and visual holiday indcators
  • Mil-spec, locking PowerPak cable
  • Ergonomic rugged design - reduces user fatigue
  • Integrated belt loop system
  • Portable and designed for wearing on hip or over the shoulder
  • Internal 6v LiFeP04 Battery
  • Environment - 14°F to 122°F (-10°C to 50°C)
  • Great for pipelines (internal and external), tanks, concrete, sewers, manholes
  • Specified and Approved on specs around the world Conforms to NACE International RPO188, RP0274, RP0490

Technical Data Chart
Data
Range:800 - 35,00 Volts
Environment:14°F to 122°F (-10°C to 50°C)
Instrument Dimensions:6.75” x 8.5” x 3.5”, (171.5mm x 216mm x 89mm)
Instrument Weight:8 lbs (3.62kg)
Shipping with Carrying Case Dimensions:41” x 18” x 8”, (1040mm x 457mm x 203mm )
Shipping Weight:35 lbs (15.87kg)
NACE
RP0274
RP0490
SP0188
AP/W Holiday Detector Kit, 8" Wire Brush
  • AP/W Instrument and Battery
  • Battery Charger - 115V or 230V AC (selectable)
  • PowerPak
  • Ground Cabl - 20'
  • Electrode
  • Wand Handle - 18" with full circle spring electrode connector
  • Screwdriver
  • Wand Extension Handle - 18"
  • Carrying Case
  • Instruction manual
  • Certificate of Calibration

Manuals

AP/W Holiday Detector Silicone Pipe Extension

4" Circle Silicone Pipe Electrode

Article No: 11818

Price: $200.00

AP/W Holiday Detector Silicone Pipe Extension

6" Circle Silicone Pipe Electrode

Article No: 11820

Price: $251.00

AP/W Holiday Detector Silicone Pipe Extension

8" Circle Silicone Pipe Electrode

Article No: 11822

Price: $301.00

AP/W Holiday Detector Silicone Pipe Extension

10" Circle Silicone Pipe Electrode

Article No: 11824

Price: $404.00

AP/W Holiday Detector Silicone Pipe Extension

12" Circle Silicone Pipe Electrode

Article No: 11825

Price: $451.00

AP/W Holiday Detector Wire Brush

4" Wire Brush Electrode

Article No: 11828

Price: $96.00

AP/W Holiday Detector Circle Spring

6" Circle Spring Electrode

Article No: 11829

Price: $115.00

AP/W Holiday Detector Circle Spring

10" Circle Spring Electrode

Article No: 11832

Price: $136.00

AP/W Holiday Detector Wire Brush

12" Wire Brush Electrode

Article No: 11834

Price: $175.00

AP/W Holiday Detector Wire Brush

16" Wire Brush Electrode

Article No: 11835

Price: $237.00
