Portable Hydrometer Density & Specific Gravity Meter

Art. No.: 14528

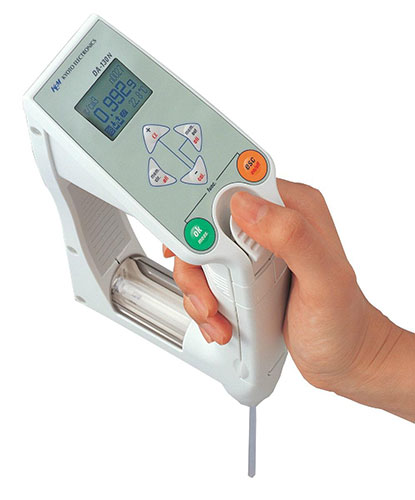

Portable Density Hydrometer

The Portable Hydrometer Density (PHD) Meter is ideal for obtaining liquid property information such as Density, Specific Gravity, Brix%, on-site quickly and accurately. It is lightweight and features easy one hand operation.



Special Limited Time Discount - Was $2,949

Select your Model

$2,495.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost



    • Ideal for obtaining liquid property information such as Density, Specific Gravity, Brix%, on-site quickly and accurately
    • Diverse range of scales with temperature compensated density and Specific Gravity (SG) measurement
    • Backlit display enables you to perform measurement in a dark place
    • Clock function equipped
    • ID code can be entered
    • Sampling volume and speed can easily be adjusted in one hand. (Patent No. 3330580)
    • Status of measuring cell can be monitored even while measurement is going on
    • Lightweight and fatigue-free design
    • Capable of measuring samples of up to 2,000 mPa•s of viscosity
    • Display Items: Density, temp-compensated density, SG, temp-compensated SG, Brix%, alcohol concentration, sulfuric acid concentration, API degree, Baume degree, Plato degree, Proof degree, etc
    • Shows measurement results and temperature (°C/°F), sample No., auto determination of oscillation stability, auto save/auto output/deletion of data, battery level, etc.
    • Measurement time and operator name can be printed out
    • Battery life doubled compared with conventional model. Much longer operating time
    • The viscosity that the DA-130N can sample with the internal pump is up to about 1500 mPa*s.The required sample volume is 2 ml or more
    • Density, SG or Brix measurement of crude oil, fuel oil, lubricant oil, various beverages such as milk, soft drink, fruit drink, alcohol or extract concentration of beer, whisky, wine, shochu (Japanese distilled alcohol), Japanese sake (fermented alcohol), oils and fats such as vegetable oil, animal fat and oil,  and constituent concentration of food materials for quality control purposes etc.
    • Oscillation method is specified in ASTM D7777
    • Conforming to Japanese Pharmacopoeia
    • Concentration check of etching solution or acid pickling solution for electronic parts. or flux or plating solution

    Technical Data Chart
    Data
    Measuring Method:Resonant frequency oscillation
    What to Measure:Liquid samples
    Measuring Range:0.0000 to 2.0000g/cm3
    Accuracy:±0.001g/cm3
    Resolution:0.0001g/cm3
    Temperature Range:0 to 40.0°C (32 to 104°F)
    Backlit Display:Density, temp-compensated density, SG, temp-compensated SG, Brix%, Alcohol wt%, Alcohol vol%, %H2SO4, API degree, Baume degree, Plato degree, Proof degree, Temperature in °C/°F, Sample No., Stability, Data storage, Data output, Data deletion, Battery level, etc.
    Temperature Compensation:Up to 10 coefficients for temperature compensation can be entered.
    Materials in Contact with Sample:PTEE, borosilicate glass, polypropylene (PP), Fluoro Rubber *May not be resistant to every sample and cleaning solution.
    Auto Calibration:Density of water at each temperature, required for calibration of measuring cell, is pre-installed.
    Sampling by:Syringe-type hand pump
    Data Storage:Up to 1,100 samples
    Power Supply:Alkaline battery LR03 (AAA) 1.5V 2pcs
    External Output:Infrared communications port (conforming to IrDA Ver. 1.2) Conversion to RS-232C output (Optional parts required)
    Battery Life:Approx. 90 hours
    WeightApprox. 360g (0.794 lbs)
    ASTM
    D777
    Portable Density Hydrometer
    • Meter
    •  Carrying case
    • Cleaning cloths
    • Density standards
    • 50 mL plastic samples bottles (2)
    • Transfer pipettes (2)
    • AAA batteries (2)
    • Operating instructions
