17025 Certified Dry Film Thickness Shims

Name: 17025 Certified Shim 76.2µm (3.0mil)
SKU: 000000000000014582
Price: 89 USD

Art. No.: 14582

17025 Certified Shim 76.2µm (3.0mil)

Select your Model

Thickness Gauges

$89.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Dry film thickness standards used for calibration
Verify calibration of dry film thickness gauges on a routine basis as required by SSPC PA2 and ASTM D7091

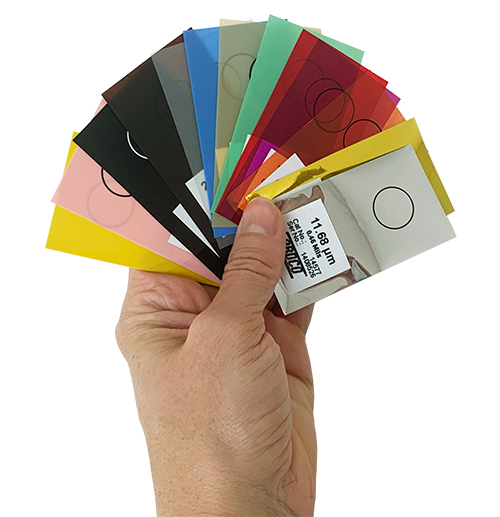

Color coded certified shims
Marked in both mils and microns
Each shim is packaged in its own plastic protective case
They are 1.5" x 2.75" with a specific measuring area locater

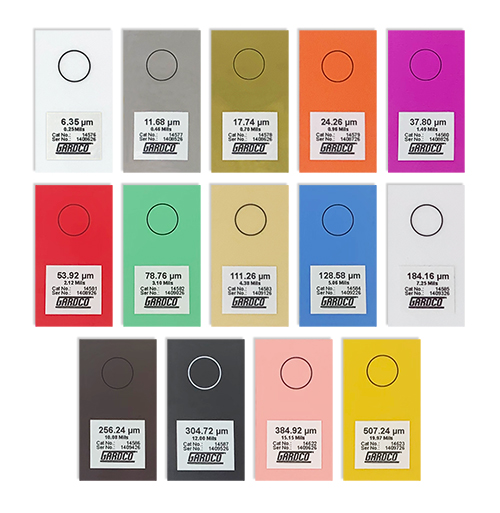

Certified Plastic Shims 14 different sizes available
All thickness are approximate - actual certified thickness varies and is noted on individually certified shims

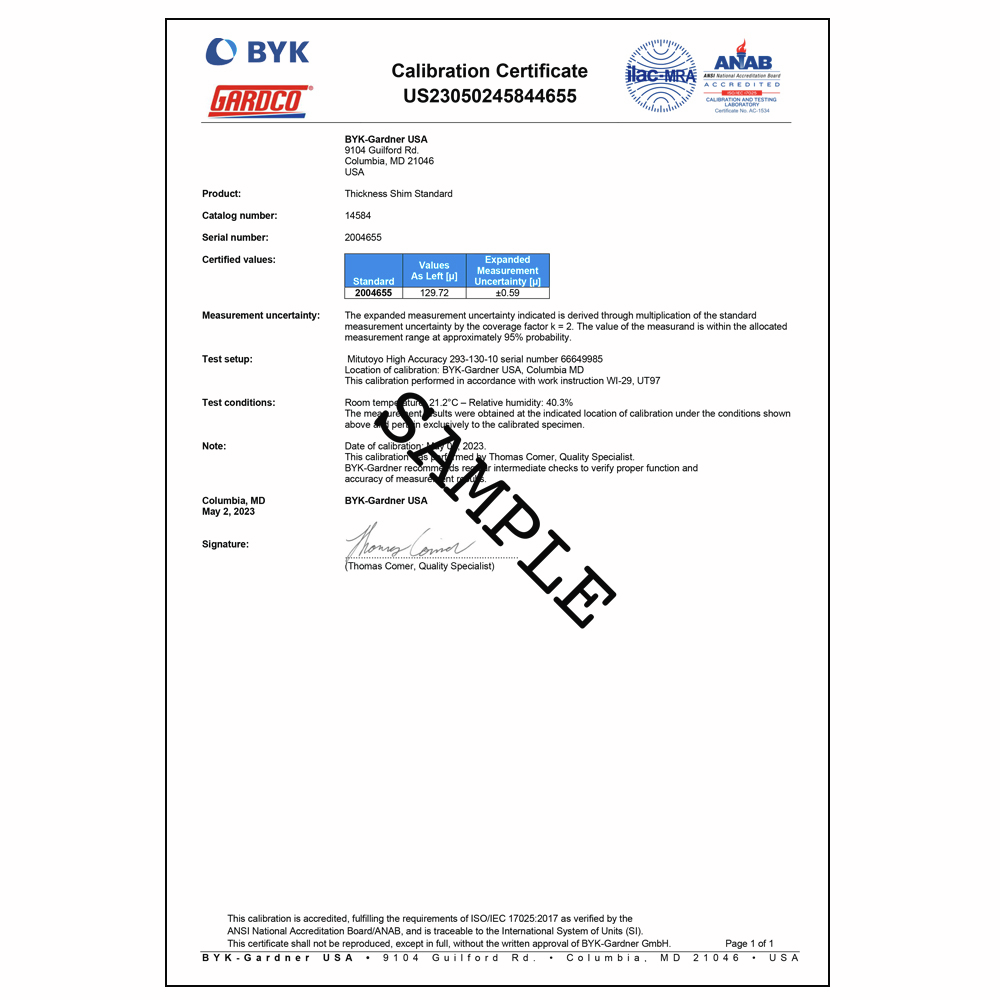

17025 Certificate included with each shim
All 17025 Certified Dry Film Thickness Standards are serialized

Technical Data Chart

Data

Part No.	Approximate Thickness Range	Color
14576	6.35 µm (.25 mil)	Clear
14577	12.70 µm (.50 mil)	Silver
14578	19.05 µm (.75 mil)	Gold
14579	25.4 µm (1.0 mil)	Amber
14580	38.1 µm (1.5 mil)	Purple
14581	50.8 µm (2.0 mil)	Red
14582	76.2 µm (3.0 mil)	Green
14583	101.6 µm (4.0 mil)	Tan
14584	127 µm (5.0 mil)	Blue
14585	190.5 µm (7.5 mil)	Transmatte
14586	254 µm (10 mil)	Brown
14587	317.5 µm (12.5 mil)	Black
14622	381 µm (15 mil)	Pink
14623	508 µm (20 mil)	Yellow
