Taber Abrasion Test 1700/1750

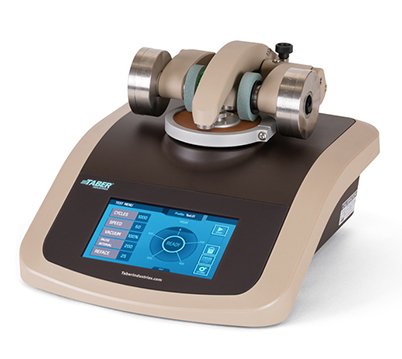

1700 Taber Single Abrasion Test, 230V
- 1700 Single Abrasion Tester
- 230 Voltage
Select your Model
Enter a value between 1 and 100000000 in increments of 1.
excl. taxes & shipping cost
- Calibration Certificate Included
- Delivers reliable data in minutes and are used to evaluate a material's resistance to wear
- Supplied with 8 mm sized nozzles, if testing transparent materials and following a test method like ASTM D1044 or required, 11 mm nozzles are available and sold separately under accessories (1750 requires 2 kits, the 1700 requires 1 kit)
- Referenced in more than 100 international test standards and specifications
- Specified by numerous industries as the standard for wear and abrasion research, quality and process control, materials evaluation, and product development.
- LCD operator touch screen
- Easy to operate
- Quick release wheel mounting hub
- Critical componentd easy to replace
- Compact abraser arm assemblies
- Redesigned support frame and housing
- Direct flow vacuum nozzel with precision height
- Selectable display options (including language) store test profiles
- Available in either 115/230 V and 50/60Hz
- Genuine taber abrading wheels and test accessories offer enormous versatility
- Its field of application includes tests of painted, lacquered, powder coated, and electroplated surfaces; textile fabrics ranging from sheer silks to heavy upholstery and carpeting; solid materials such as metals, stone and ceramics; plus plastics, leather, rubber, linoleum, laminates, glass, paper, and many others.
| AATCC | Method 8 Method 165 |
|---|---|
| ASTM | A975 D6279 F3300 |
| CFFA | 7 STM2013 |
| ECCA | T-11 |
| EN | 13523-11 16268 3475-503 6059-403 |
| Ford | BI 161-01 BN 107-01 |
| General Motors | GM9150P GMW14130 GMW14327 GMW14664 GMW16740 |
| ISO | 105X12 15184 6722 8980-5 |
| JASO | D611 |
| JIS | L 0849 |
| MIL | C-675C |
| SAE | J861 |
- Taber Abraser
- Auxiliary Weights provide 500g & 1000g load
- Specimen Holder
- Hold Down Ring
- Vacuum Unit with Suction Hose
A flat specimen is mounted to a turntable platform that rotates on a vertical axis. As the turntable rotates, contact of the specimen against the sliding rotation of two abrading wheels cause wear while a vacuum system removes loose wear debris during the test. The resulting abrasion marks form a pattern of crossed arcs in a circular band that cover an area approximately 30 cm2.
