Rotavisc Accessories

Article No. 14796

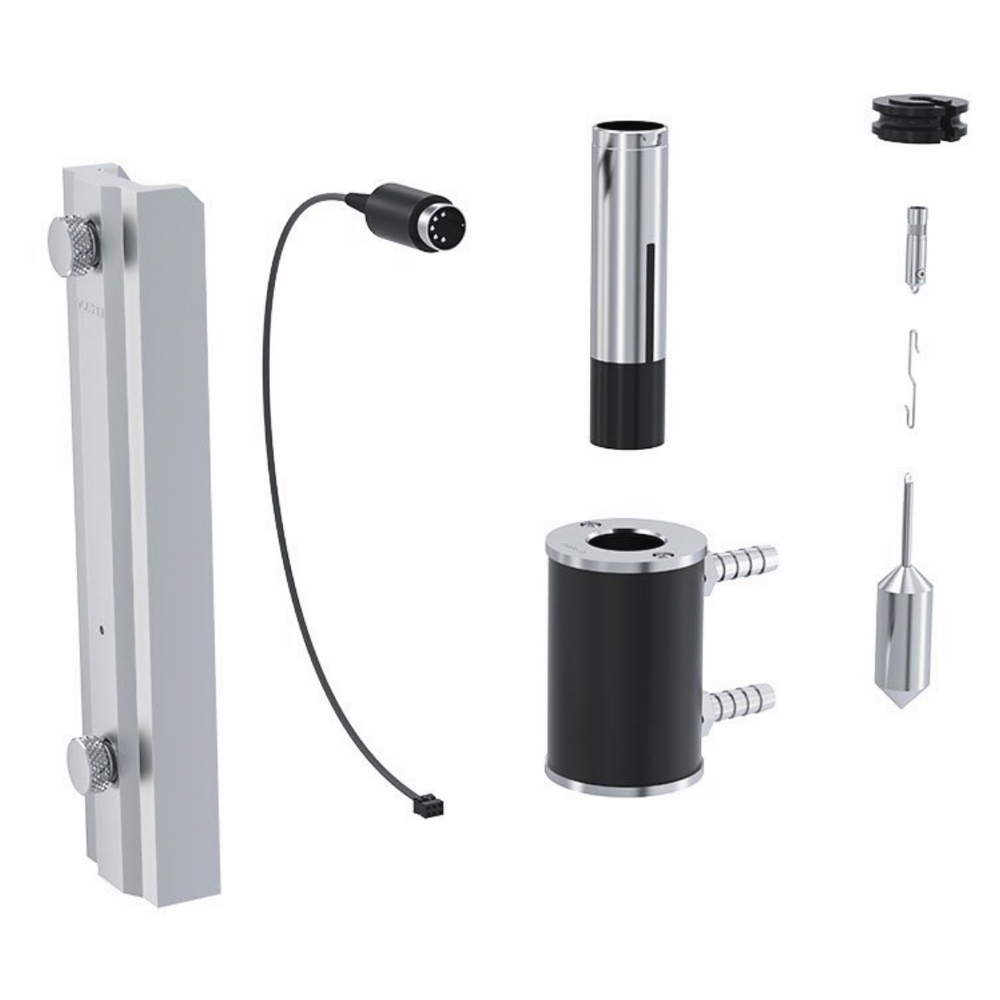

Extremely low viscosity adapter set

The extremely low viscosity adapter spindle set ELVAS-1 includes a double jacket to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress. This 16 ml spindle is commonly used with the ROTAVISC lo-vi and allows measurements from 1 mPas (water temperature at 20 °C). The spindle without the water jacket can also be used in customer-specific vessels. The maximum measurable viscosity is 2000 mPas.

Select your model

$1,355.00 excl. taxes & shipping cost

Technical Attributes

  • Data
    Adapter SetDINS-1O DIN S-1ELVAS-1VOLS-1ELVAS-C-1
    Spindle Geometry:Cylinder
    Connection:Thread M2.5 LH
    Flow Jacket:yes
    Sample Container:Specified chamber
    Working Temperature Max.:100 °C
    Viscosity Accuracy (FSR):2%
    Viscosity Repeatibility (FSR):0.2%
    Sample Volume:2 ml - 17 ml---16 ml6.7 ml16 ml
    Min. FSR Match ROTAVISC lo-vi:0.6 mPa.s6 mPa.s1 mPa.s1.5 mPa.s10 mPa.s
    Mounting Bracket:yesyesyesyes---
    Max. FSR Match ROTAVISC lo-vi:50000 mPa.s50000 mPa.s2000 mPa.s30000 mPa.s600 mPa.s
    Min. FSR Match ROTAVISC me-vi:6.1 mPa.s61 mPa.s3.2 mPa.s16 mPa.s32 mPa.s
    Max. FSR Match ROTAVISC me-vi:50000 mPa.s50000 mPa.s2000 mPa.s20000 mPa.s2000 mPa.s
    Min. FSR Match ROTAVISC hi-vi I:12.2 mPa.s122 mPa.s6.4 mPa.s32 mPa.s64 mPa.s
    Max. FSR Match ROTAVISC hi-vi I:50000 mPa.s50000 mPa.s2000 mPa.s640000 mPa.s2000 mPa.s
    Min. FSR Match ROTAVISC hi-vi II:48.8 mPa.s488 mPa.s25.6 mPa.s128 mPa.s256 mPa.s
    Max. FSR Match ROTAVISC hi-vi II:50000 mPa.s50000 mPa.s2000 mPa.s2600000 mPa.s2000 mPa.s
    Material in Contact w/Medium:stainless steel 1.4404 / LDPEstainless steel 1.4404stainless steel 1.4404 / LDPEstainless steel 1.4404AISI 316L / 1.4571
    Dimensions (W x H x D):390 x 102 x 310 mm390 x 102 x 310 mm300 x 110 x 275 mm300 x 110 x 275 mm32 x 133 x 32 mm
    Weight:2.5 kg1.919 kg1.753 kg1.656 kg0.117 kg
    Diameter:------25.15 mm---25.2 mm
    Spindle Length:------161 mm---161 mm
    Hook connector:---------yes---
    Immersion Depth:------------90.7 mm
