Rotavisc Accessories
Article No. 14790

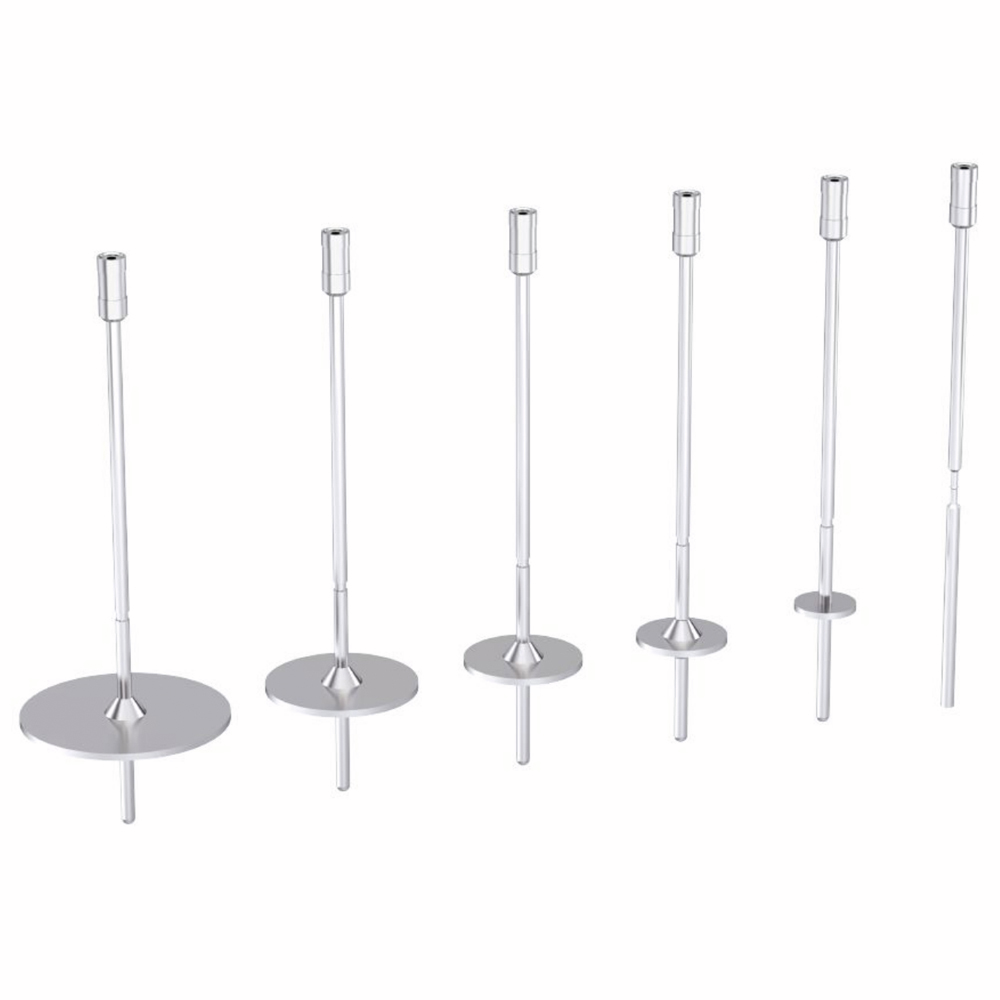

Standard Spindle Set 2
The standard spindle set SP set-2 includes six spindles (SP7, SP8, SP9, SP10, SP 11, SP12). It is particularly suitable for viscosity determination in combination with the rotary viscometers ROTAVISC me-vi, hi-vi I or hi-vi II Complete or ROTAVISC me-vi, hi-vi I or hi-vi II Advanced.
Technical Attributes
-
- Data
-
Spindle Sets Spindle Set 1 Spindle Set 2 T Bar Spindle Set Spindle Geometry: Cylinder Disc T-bar Connection: Thread M2.5 LH Spindle Length: 115 mm 135 mm --- Sample Volume: 500 ml Sample Container: 600mL beaker low Working Temp. Max.: 300 °C Viscosity Accuracy (FSR): 1% 1% 2% Viscosity Repeatability (FSR): 0.2% Min. FSR Match ROTAVISC lo-vi:* 15 mPa.s 15 mPa.s 93.75 mPa.s Max. FSR Match ROTAVISC lo-vi:* 6000000 mPa.s 3750000 mPa.s 936000 mPa.s Min. FSR Match ROTAVISC me-vi: 100 mPa.s 100 mPa.s 1000 mPa.s Max. FSR Match ROTAVISC me-vi: 64000000 mPa.s 40000000 mPa.s 10000000 mPa.s Min. FSR Match ROTAVISC hi-vi I: 200 mPa.s 200 mPa.s 2000 mPa.s Max. FSR Match ROTAVISC hi-vi I: 128000000 mPa.s 80000000 mPa.s 20000000 mPa.s Min. FSR Match ROTAVISC hi-vi II: 800 mPa.s 800 mPa.s 8000 mPa.s Max. FSR Match ROTAVISC hi-vi II: 512000000 mPa.s 320000000 mPa.s 80000000 mPa.s Material in Contact with Medium: stainless steel 1.4404 stainless steel 1.4404 AISI 316L Dimensions (W x H x D): 160 x 82 x 270 mm Weight: 0.449 kg 0.469 kg 0.45 kg Quick Plug Connector: --- yes yes Hook Connector: --- yes yes *1-15mPas range can only be achieved using the ELVAS-1 (Extremely Low Viscosity Adapter)
