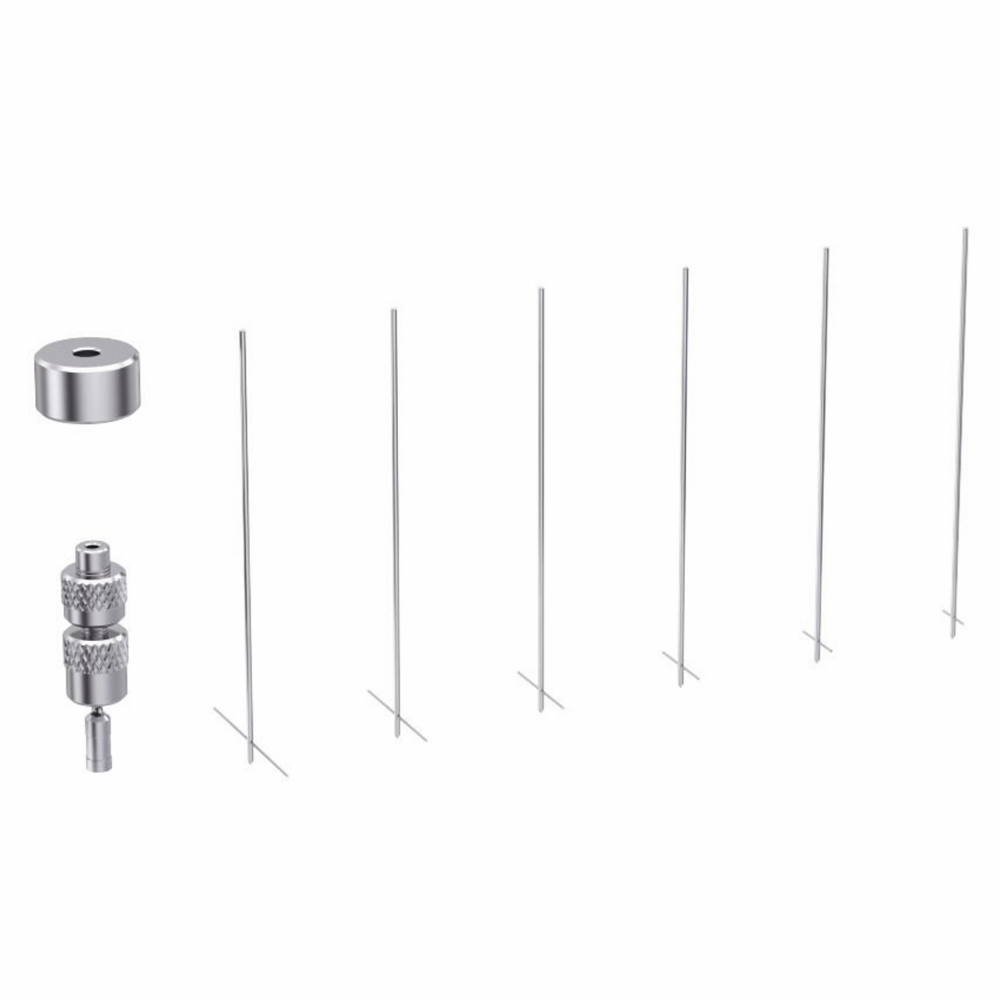

T Bar Spindle Set - The T-spindle set is particularly suitable for the measurement of non-flowing samples, such as creams, pastes or gelatin. The set is the right accessory for electrical HELISTAND.
Technical Attributes
Spindle Sets | |||
Spindle Sets | Spindle Set 1 | Spindle Set 2 | T Bar Spindle Set |
Spindle Geometry: | Cylinder | Disc | T-bar |
Connection: | Thread M2.5 LH | Thread M2.5 LH | Thread M2.5 LH |
Spindle Length | 115 mm | 135 mm | - |
Sample Volume: | 500 ml | 500 ml | 500 ml |
Sample Container: | 600mL beaker low | 600mL beaker low | 600mL beaker low |
Working Temperature max.: | 300 °C | 300 °C | 300 °C |
Viscosity Accuracy (FSR): | 1 % | 1 % | 2 % |
Viscosity Repeatibility (FSR): | 0.2 % | 0.2 % | 0.2 % |
Min. FSR Match ROTAVISC lo-vi:* | 15 mPa.s | 15 mPa.s | 93.75 mPa.s |
Max. FSR Match ROTAVISC lo-vi:* | 6000000 mPa.s | 3750000 mPa.s | 936000 mPa.s |
Min. FSR Match ROTAVISC me-vi: | 100 mPa.s | 100 mPa.s | 1000 mPa.s |
Max. FSR Match ROTAVISC me-vi: | 64000000 mPa.s | 40000000 mPa.s | 10000000 mPa.s |
Min. FSR Match ROTAVISC hi-vi I: | 200 mPa.s | 200 mPa.s | 2000 mPa.s |
Max. FSR Match ROTAVISC hi-vi I: | 128000000 mPa.s | 80000000 mPa.s | 20000000 mPa.s |
Min. FSR Match ROTAVISC hi-vi II: | 800 mPa.s | 800 mPa.s | 8000 mPa.s |
Max. FSR Match ROTAVISC hi-vi II: | 512000000 mPa.s | 320000000 mPa.s | 80000000 mPa.s |
Material in Contact with Medium: | stainless steel 1.4404 | stainless steel 1.4404 | AISI 316L |
Dimensions (W x H x D): | 160 x 82 x 270 mm | 160 x 82 x 270 mm | 160 x 82 x 270 mm |
Weight: | 0.449 kg | 0.469 kg | 0.45 kg |
Quick Plug Connector: | - | yes | yes |
Hook Connector: | - | yes | yes |
*1-15mPas range can only be acheived using the ELVAS-1 (Extremely Low Viscosity Adapter) |
