Re-Circulating Chiller Unit

Article No. 13303

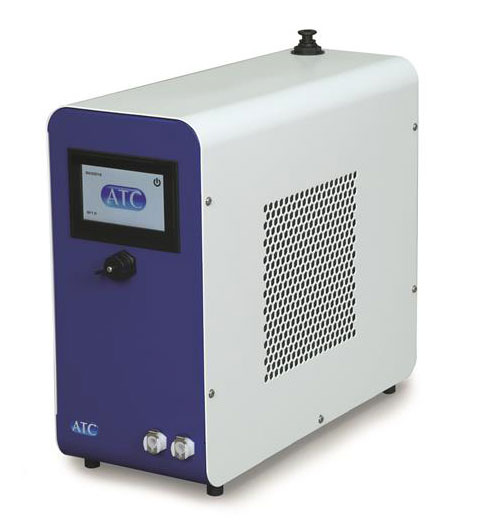

MFFT Re-Circulating Chiller, 100-240 Vac

The Re-Circulating Chiller is used with the MFFT and it is Plug and play,  simple to install and  no programming required.

$7,695.00 excl. taxes & shipping cost

Features

  • For use with Rhopoint MFFT
  • Ultra-compact design
  • 0.5kW at 20°
  • Simple Operation
  • Low cost of purchase and operation
  • Universal 90-264 VAC input voltage and 50/60Hz input frequency
  • Automatic overcurrent fault-cleared restart mode
  • Vapor compression technology
  • Brazed plate heat exchanger evaporator technology
  • Continuous running, duty settable, low temp fridge cutoff control methods

Technical Attributes

  • Data
    Physical Attributes
    Physical Dimensions (LxWxH): 435 x 180 x 380mm
    Weight: Dry 20kg, wet 21kg
    Noise level (dB(A)): 64 (optional manual adjustment)
    Cooling Capacity (Setpoint 20, ambient 20): 0.5kW
    Temperature Control Attributes
    Duty at +20°C ambient, Setpoint +20°C (kW): 500
    Duty at +20°C ambient, Setpoint +15°C (kW): 300
    Refrigerant & Charge: R134a, 360g
    Temperature Range (standard): +4°C to +35°C (Setpoint dependent on load)
    Temperature Stability (with constant load): ±0.1°C
    Maximum THR (Total Heat Rejection): 850W
    Maximum Ambient Air Temperature: +35°C
    Water Circuit Attributes:
    System Volume (L): 0.64
    Pump Type: Sanso 24VDC brushless centrif pump 1.9bar(d/h) 3L/min (o/f)
    Pump Capability: 3.5L/min @1 bar
    Standard Fittings: Pushfit 12mm
    Standard Chemical Compatibility: Tap Water, DI-water
    Electrical Attributes
    115-230 Vac, (50-60 Hz): 2A @ 115 Vac, 1A @230 Vac
