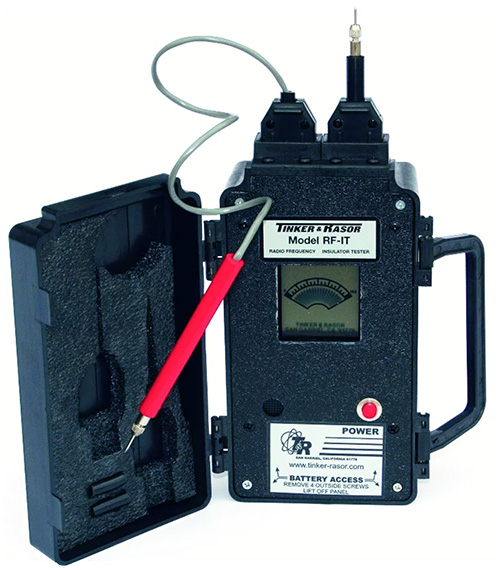

RF-IT Insulator Tester
Article No. 10898
Radio Frequency Insulation Tester
The Model RF-IT Insulator Tester is a highly sensitive device used to test above ground pipeline insulators. This affordable unit is also fantastic for flange bolts shorts, and allows the operator to pinpoint the precise contact point.
Features
Hand Held Instrument
Easily locates shorted bolts, replaces bolt to bolt
Use on structure with or without CP
Uses Radio Frequency to test effectiveness of above ground insulators
Auto Shut-Off feature
Emits an audible beep, when the operator gets closer to the point of contact the unit starts beeping faster. At the same time, the sliding scale LCD meter moves from right to left.
Technical Attributes
-
- Data
-
Dimensions: 8" length x 4" width x 3" depth Operating Weight: 2 lbs. Shipping Weight: 3 lbs. Battery Operated: 6 Alkaline "AA" batteries (replaceable) Cables and Probes: Included
Procedure
- The RF-IT uses Radio Frequency to operate.
- Place one probe on each side of the insulator/pipe.
- The RF-IT will apply radio fenquency between the two probes, if a signal is able to travel between the probes easily, the device will receive a strong signal.
- An alert tells you that there is a short somewhere betweeen the two probes.
Delivery Content
6 AA Batteries (installed), Probe (red with lead wire and needle point tip), Probe (black with needle point tip), Additional needle tips (stored in small black vinyl tubes), Instruction manual and Warranty Card
