PosiTector DPM Dew Point Meter

Article No. 14001

PosiTector Dew Point Meter DPMA, Std

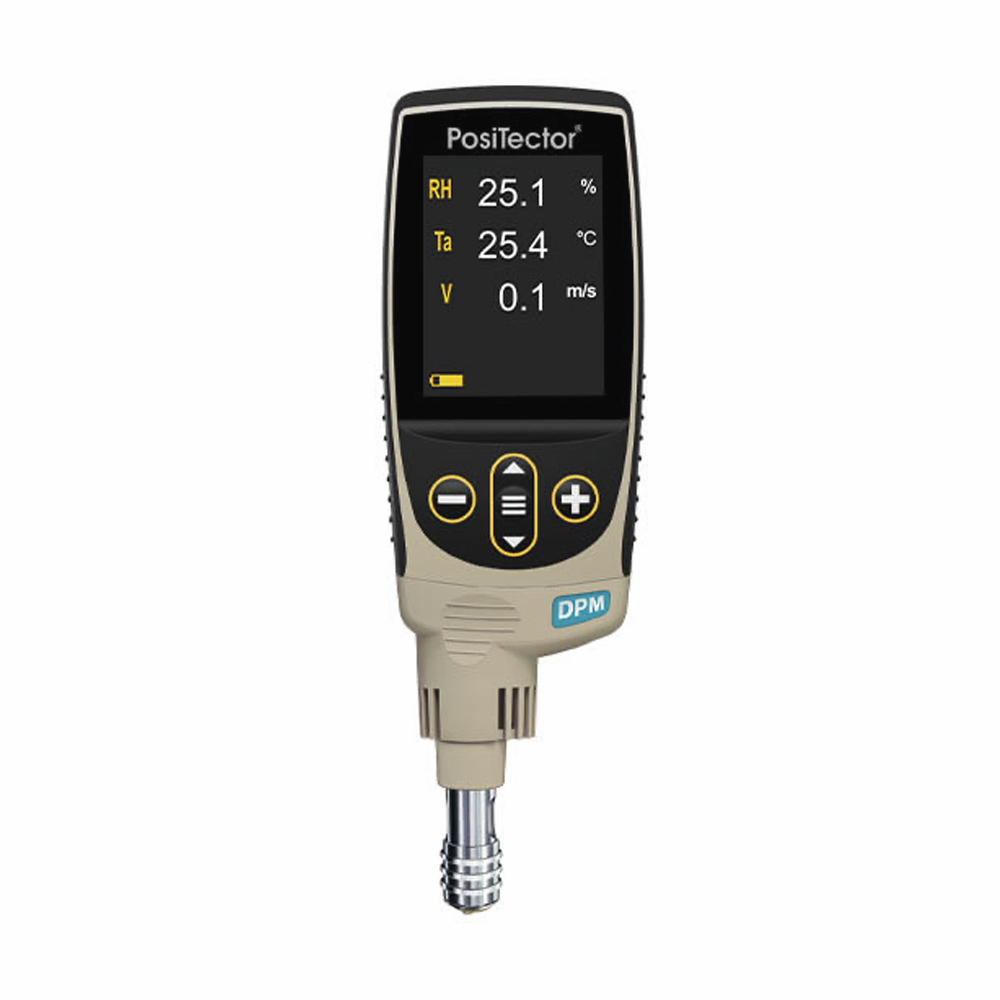

PosiTector DPM Standard Gauge with DPMA Probe
Integral Probe with Wind Speed Sensor
Measured Surface Temperature, Air Temperature, Relative Humidity Dew Point Temperature Surface Temperature minus, Dew Point Temperature, and Wind Speed
Anemometer mode measures air temperature, relative humidity and wind speed
Auto-rotating display for inverted use
Wind Speed Range: 0-20 m/s, 0-44 mph, 0-65 ft/s, 0-3900 ft/m, 0-72 km/h, 0-38 knots
Wind Speed Accuracy: ± 3% Full Scale

Select your model

excl. taxes & shipping cost

Features

The PosiTector DPM is a Dew Point Meter great for environmental monitoring, as it measures and records climatic conditions including: relative humidity, air temperature, surface temperature, dew point temperature, wind speed, and difference between surface and dew point temperatures
Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7, and US Navy NSI 009-32
All readings are constantly updated/displayed simultaneously and every stored measurement is date and time stamped
Alarms indicate when climate conditions are unsuitable for painting
Large 2.8" impact resistant color touchscreen with keypad and auto rotating display with Flip Lock
Ergonomic design with durable rubberized grip and shock-absorbing, protective rubber holster are weatherproof, dustproof, and water-resistant, IP65-rated
Fast response precision sensors provide accurate, repeatable readings, no need to consult complex tables or use a slide rule calculator
SmartTrend™ Indicators identify rising, falling, or stable readings
Certificate of Calibration included showing traceability to NIST - Conforms to national and international standards including ISO and ASTM
Screen Capture saves 100 screen images for record keeping and review and on-gage help explains menu items at the touch of a button
Up to 30% longer battery life and instant-on feature quickly powers up the gage if recently powered down
USB port for fast, simple connection to a PC and to supply continuous power, cable included - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers (no software required)
Includes PosiSoft suite of software for viewing and reporting data, and software updates via web keep your gage current
Auto Log mode records environmental parameters at user selected time intervals
PosiTector DPM L attaches to steel structures to measure and record environmental parameters independently for up to 200 days. Stored datasets can be downloaded using a PosiTector Advanced gage body or Apple/Android smart device.
Celsius/Fahrenheit switchable
Selectable display languages
Two year warranty on gage body AND probe

Technical Attributes

Data

Specifications	Range	Accuracy	Resolution
Surface Temperature:	-40° to 80°C	±0.5°C	0.1°C
	80° to 190°C	±1.5°C	0.1°C
	-40° to 175°F	±1°F	0.1°F
	175° to 375°F	±3°F	0.1°F
Infrared Surface Temperature:*	-70° to 380°C	±1°C + (0.01°C/°C)**	0.1°C
Infrared Surface Temperature:*	-94° to 716°F	±2°F + (0.01°F/°F)**	0.1°F
Air Temperature:	-40° to 80°C	±0.5°C	0.1°C
Air Temperature:	-94° to 716°F	±1°F	0.1°F
Humidity:	0 to 100%	±3%	0.1%
Wind Speed:†	0 to 20 m/s	±3% Full Scale	0.1 m/s
Wind Speed:†	0 to 44 mph	±3% Full Scale	0.1 mph
Dew Point:	-60° to 80°C	±3°C‡	0.1°C
Dew Point:	-76° to 175°F	±5.4°F‡	0.1°F
Size & Weight:	6.25 x 2.4 x 1.2 in. (159 x 61 x 31 mm) 5.3 oz. (150 g) without batteries
* DPM IR models only ** At = 23°C † DPM A models only ‡ Dependent on RH

Probe Style	DPM Built-In Probe with Direct Contact Surface Temperature Sensor	DPMIR Built-In Probe with Infrared Surface Temperature Sensor	DPMS Built-In Probe with K-type Cabled Surface Temperature Sensor	DPMA Built-In Probe with Wind Speed Sensor	DPMD Cabled Probe with 1/2” NPT Threads
Comparison Chart:
Surface Temperature:	•	•	•	•
Air Temperature:	•	•	•	•	•
Wet Bulb Temperature:*	•	•	•	•
Relative Humidity:	•	•	•	•	•
Dew Point Temp.:	•	•	•	•	•
Surface Temp. minus Dew Point Temperature:	•	•	•	•
Wind Speed:				•
*Wet Bulb Temperature is displayed/recorded on Advanced models only

Standards

Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

Delivery Content

Humidity and temperature sensors, Protective rubber holster, Wrist strap, 3 AAA batteries, Instructions, Nylon carrying case with shoulder strap (DPM/DPMA/DPMD), Hard shell carrying case (DPMS), Protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, Two (2) year warranty.

Accessories
