PosiTector DPM Dew Point Meter

• Data

  Specifications	Range	Accuracy	Resolution
  Surface Temperature:	-40° to 80°C	±0.5°C	0.1°C
  	80° to 190°C	±1.5°C
  	-40° to 175°F	±1°F	0.1°F
  	175° to 375°F	±3°F
  Infrared Surface Temperature:*	-70° to 380°C	±1°C + (0.01°C/°C)**	0.1°C
  	-94° to 716°F	±2°F + (0.01°F/°F)**	0.1°F
  Air Temperature:	-40° to 80°C	±0.5°C	0.1°C
  	-94° to 716°F	±1°F	0.1°F
  Humidity:	0 to 100%	±3%	0.1%
  Wind Speed:†	0 to 20 m/s	±3% Full Scale	0.1 m/s
  	0 to 44 mph		0.1 mph
  Dew Point:	-60° to 80°C	±3°C‡	0.1°C
  	-76° to 175°F	±5.4°F‡	0.1°F
  Size & Weight:	6.25 x 2.4 x 1.2 in. (159 x 61 x 31 mm) 5.3 oz. (150 g) without batteries
  * DPM IR models only ** At = 23°C † DPM A models only ‡ Dependent on RH

  Probe Style	DPM Built-In Probe with Direct Contact Surface Temperature Sensor	DPMIR Built-In Probe with Infrared Surface Temperature Sensor	DPMS Built-In Probe with K-type Cabled Surface Temperature Sensor	DPMA Built-In Probe with Wind Speed Sensor	DPMD Cabled Probe with 1/2” NPT Threads
  Comparison Chart:
  Surface Temperature:	•	•	•	•
  Air Temperature:	•	•	•	•	•
  Wet Bulb Temperature:*	•	•	•	•
  Relative Humidity:	•	•	•	•	•
  Dew Point Temp.:	•	•	•	•	•
  Surface Temp. minus Dew Point Temperature:	•	•	•	•
  Wind Speed:				•
  *Wet Bulb Temperature is displayed/recorded on Advanced models only

Standard Models - Includes ALL features previously listed plus...

• Storage of 2,500 datasets - stored readings can be viewed or downloaded
• Auto Log mode runs unattended on batteries for up to 60 hours or continuously via USB

Advanced Models - Includes ALL features previously listed plus...

• Storage of 250,000 datasets in up to 1,000 batches
• Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals.
• User defined limits for all parameters - visible and audible warnings. Receive email alerts when connected to WiFi.
• Trend Charts graph readings in real-time
• Touchscreen keyboard for quickly renaming batches, adding notes, and more
• Wet bulb temperature can be displayed and recorded
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols



Probe Options

Built-in Probe (DPM)

• Integral probe with Direct Contact Surface Temperature Sensor
• Measures dew point, relative humidity, air temperature and surface temperature

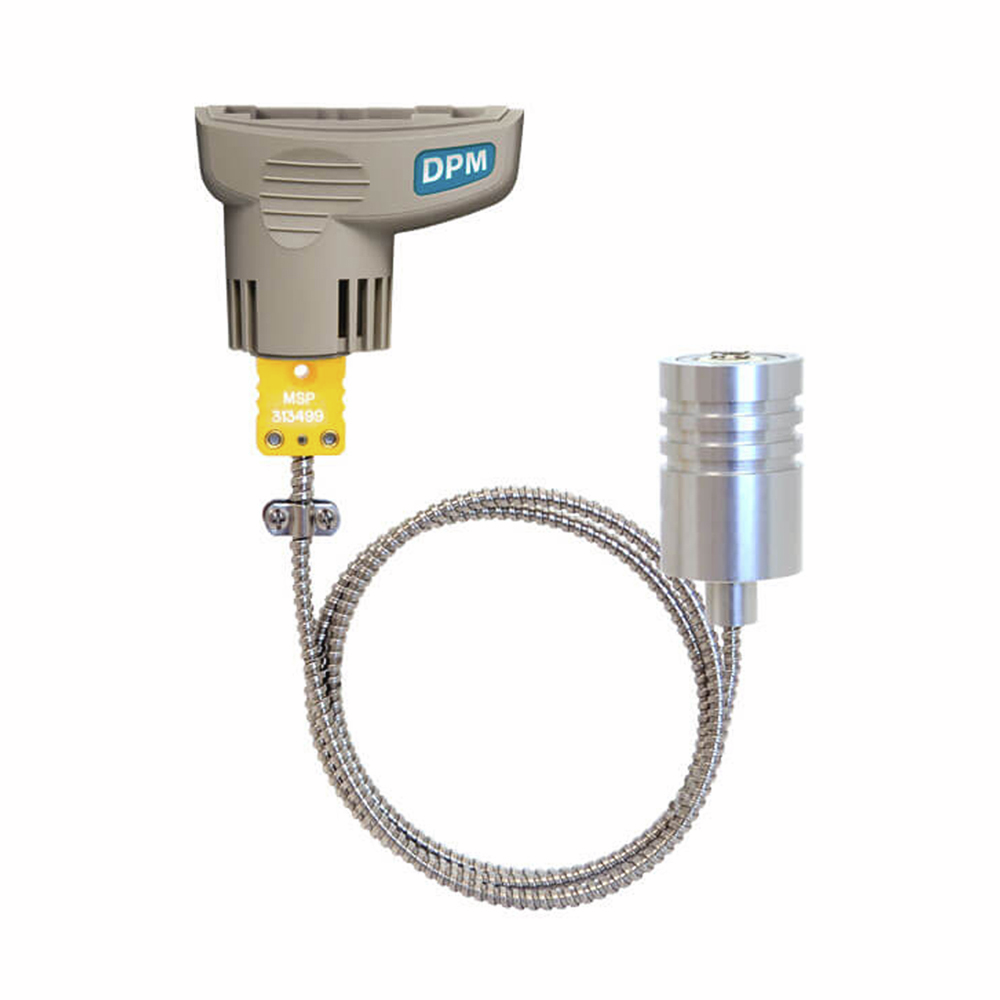

Built-in Probe w/Cabled Surface Temperature Sensor (DPMS)

• Includes built-in air temperature/humidity sensor and K-type connector

• Magnetic surface temperature sensor with armored cable and locking device to prevent accidental disconnection from the instrument during unattended operation.

• Includes magnetic tab to attach the gage body onto steel structures

• Additional Sensors for DPMS Probe (K-Type Thermocouple Sensors)

  • A. Hand-held Surface Temperature Sensor - for spot checking hard-to-reach surfaces

  • B. Self-adhering Surface Temperature Sensor - sticks to solid materials including aluminum, wood, concrete, etc. Ideal for unattended monitoring

  • C. Liquid Temperature Sensor - general purpose sensor with stainless steel shaft

    Easily converts to accept other optional K-type sensors.

Built-in Probe with Wind Speed Sensor (DPMA)

• Includes the ambient temperature, surface temperature, and humidity sensors from PosiTector DPM Built-in Probe plus a hot wire anemometer

• Anemometer mode measures air temperature, relative humidity and wind speed

• Auto-rotating display for inverted use

• Wind Speed Range: 0-20 m/s, 0-44 mph, 0-65 ft/s, 0-3900 ft/m, 0-72 km/h, 0-38 knots

• Wind Speed Accuracy: ± 3% Full Scale

Cabled Probe with 1/2" NPT Threads (DPMD)

• Measures dew point, relative humidity and air temperature (shown)
• Sintered aluminum housing protects sensors
• 1/2" NPT threads for insertion into tanks and pipes (max 200 psi/ 1.3 MPa)

PosiTector DPM IR Probe (DPMIR)

• Includes the ambient temperature and humidity sensors from the PosiTector DPM Integral Probe plus an infrared surface temperature sensor.
• Measures and records environmental conditions including RH, air temperature, surface temperature, dew point temperature, the difference between surface and dew point temperatures.
• Non-contact surface temperature sensor
• Measures hard to reach areas and moving parts
• 4:1 Distance to spot ratio (D:S), optimized for measuring large surfaces, ideal for quickly scanning large structures.
• Pre-programmed and user adjustable emissivity options

Humidity, air & surface temperature sensors, Protective rubber holster with belt clip, Wrist strap, 3 AAA alkaline batteries, Instructions, Nylon carrying case with shoulder strap, Protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, Two (2) year warranty.
