PosiTector DPM Dew Point Meter

Article No. 13999

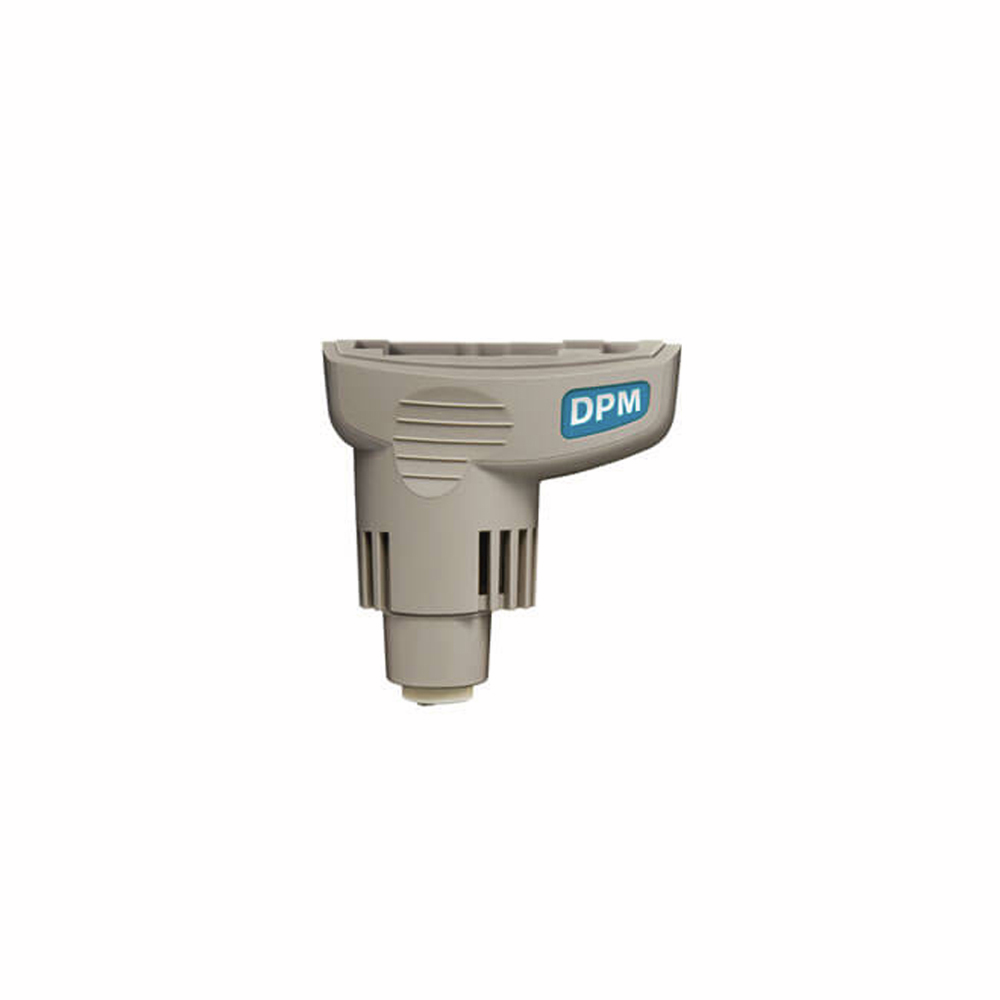

PosiTector DPM Probe Only

  • PosiTector DPM Probe Only
  • Integral Probe
  • Measures Surface Temperature, Air Temperature, Wet Bulb Temperature (displayed on advanced models only), Relative Humidity, Dew Point Temperature, and Surface Temperature minus Dew Point Temperature

Select your model

$445.00 excl. taxes & shipping cost

Features

  • The PosiTector DPM is a Dew Point Meter great for Environmental Monitoring.
  • It Measures and records climatic conditions including: relative humidity, air temperature, surface temperature, dew point temperature, wind speed, and difference between surface and dew point temperatures.
  • Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7, and US Navy NSI 009-32.All readings are constantly updated and displayed simultaneously
  • Alarms indicate when climate conditions are unsuitable for painting
  • Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • On-gage help explains menu items at the touch of a button
  • No need to consult complex tables or use a slide rule calculator
  • Weatherproof, dustproof, and water-resistant. IP65-rated enclosure
  • Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe
  • Fast response precision sensors provide accurate, repeatable readings
  • SmartTrend™ Indicators identify rising, falling, or stable readings
  • Certificate of Calibration included showing traceability to NIST
  • Conforms to national and international standards including ISO and ASTM
  • Screen Capture, save 100 screen images for record keeping and review
  • Instant-on feature quickly powers up the gage if recently powered down
  • Up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drive, stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Includes PosiSoft suite of software for viewing and reporting data
  • Software Updates via web keep your gage current
  • Every stored measurement is date and time stamped
  • Auto Log mode records environmental parameters at user selected time intervals
  • Auto rotating display with Flip Lock
  • PosiTector DPM L attaches to steel structures to measure and record environmental parameters independently for up to 200 days. Stored datasets can be downloaded using a PosiTector Advanced gage body or Apple/Android smart device.
  • Celsius/Fahrenheit switchable
  • Selectable display languages

Technical Attributes

  • Data
    SpecificationsRangeAccuracyResolution



    Surface Temperature:
    -40° to 80°C±0.5°C
    0.1°C
    80° to 190°C±1.5°C
    -40° to 175°F±1°F
    0.1°F
    175° to 375°F±3°F
    Infrared Surface Temperature:*-70° to 380°C±1°C + (0.01°C/°C)**0.1°C
    -94° to 716°F±2°F + (0.01°F/°F)**0.1°F
    Air Temperature:-40° to 80°C±0.5°C0.1°C
    -94° to 716°F±1°F0.1°F
    Humidity:0 to 100%±3%0.1%
    Wind Speed:†0 to 20 m/s
    ±3% Full Scale
    0.1 m/s
    0 to 44 mph0.1 mph
    Dew Point:-60° to 80°C±3°C‡0.1°C
    -76° to 175°F±5.4°F‡0.1°F
    Size & Weight:6.25 x 2.4 x 1.2 in. (159 x 61 x 31 mm)
    5.3 oz. (150 g) without batteries
    * DPM IR models only
    ** At = 23°C
    † DPM A models only
    ‡ Dependent on RH
    Probe StyleDPM
    Built-In Probe with Direct Contact Surface Temperature Sensor
    DPMIR
    Built-In Probe with Infrared Surface Temperature Sensor
    DPMS
    Built-In Probe with K-type Cabled Surface Temperature Sensor
    DPMA
    Built-In Probe with Wind Speed Sensor
    DPMD
    Cabled Probe with 1/2” NPT Threads





    Comparison Chart:
    DPM ProbeDPMIR ProbeDPMS ProbeDPMA ProbeDPMD Probe
    Surface Temperature:
    Air Temperature:
    Wet Bulb Temperature:*
    Relative Humidity:
    Dew Point Temp.:
    Surface Temp. minus Dew Point Temperature:
    Wind Speed:
    *Wet Bulb Temperature is displayed/recorded on Advanced models only

More Information







Standards

Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

Delivery Content

Humidity and temperature sensors, Protective rubber holster, Wrist strap, 3 AAA batteries, Instructions, Nylon carrying case with shoulder strap (DPM/DPMA/DPMD), Hard shell carrying case (DPMS), Protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, Two (2) year warranty.
