EasyView™ Dual Input Thermometers

Article No. 14007

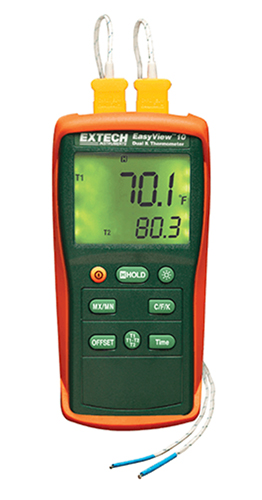

Easyview Datalogger Type K

EasyView Dual Input Thermometers have a wide temperature range. There are two model choices, one with a Basic Type K Probe, and a Datalogger model that is compatible with 7 types of thermocouples.

Select your model

$324.00 excl. taxes & shipping cost

Features





  • Temperature range: -200 to 1999°F (-200 to 1360°C) with 0.1°/1° resolution
  • Compact and rugged design features large backlit display
  • Displays [T1 plus T2] or [T1-T2 plus T1] or [T1-T2 plus T2]
  • Timer function displays elapsed time plus the time when MIN and MAX readings are taken
  • Data Hold, Auto power off, low battery and overrange indication
  • Records Max/Min readings for later recall
  • OFFSET key used for zero function to make relative measurements
  • Complete with built-in stand, protective holster, two Type K bead wire temperature probes and batteries
  • Addtional EA15 Features:
    • Dual input thermometer accepts Types J, K, E, T, R, S, and N thermocouples
    • Built-in datalogger stores up to 8800 data sets
    • RS-232 port to transfer data to PC for analysis (PC software and cable included)
    • Includes Windows® compatible software and data cable

Technical Attributes

  • Data
    Thermocouple TypeEA10EA15
    J:-200 to 1994°F (-150 to 1090°C)
    K:-200 to 1999°F (-200 to 1360°C)-200 to 1999.9°F (-150 to 1370°C)
    T:-200 to 752°F (-150 to 400°C)
    E:-200 to 1598°F (-150 to 870°C)
    R:35 to 1999.9°F (2 to 1767°C)
    S:35 to 1999.9°F (2 to 1767°C)
    N:-200 to 1999.9°F (-150 to 1300°C)
    Resolution:0.1°
    Basic Accuracy:±0.3% (+2°F/+1°C)±0.05% rdg (+1.5°F/+0.75°C) Types J, K, E, T, N
    ±0.05% rdg (+4°F/+2°C) Types R, S
    Dimensions:6 x 2.8 x 1.5” (152 x 72 x 37mm)6 x 2.8 x 1.5” (152 x 72 x 37mm)
    Weight:8.3 oz (235g)8.3 oz (235g)

Delivery Content

Complete with built-in stand, protective holster, two Type K bead wire temperature probes and batteries.
