Rotational Viscometers

Article No. 8349

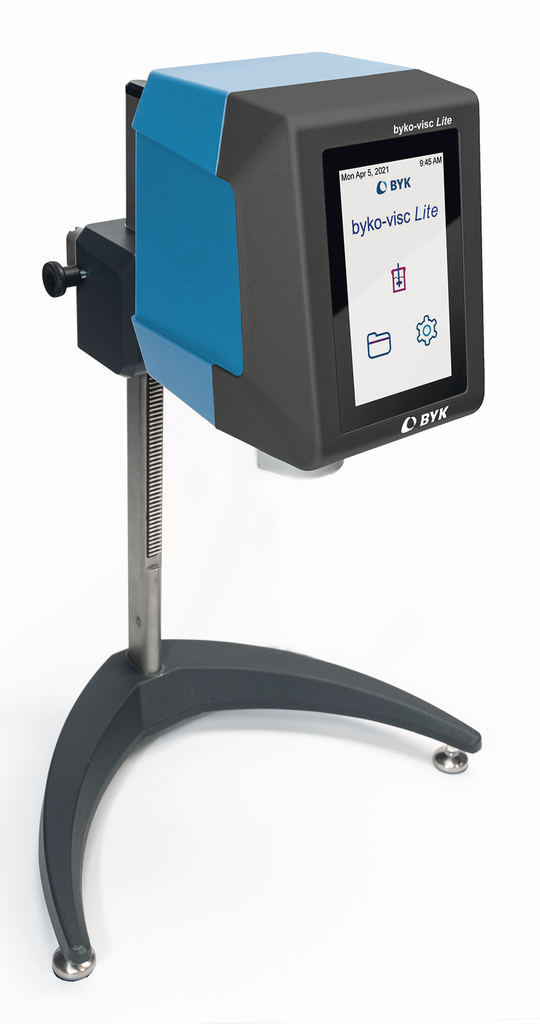

byko-visc RT Lite H, base
Rotational viscometer - Base model for high viscosity

  • Viscosity range: 240-106 Mio. cP
  • 21 Predefined speeds from 0.3 to 200 rpm
  • Test Modes: Time to Torque, Time to stop
  • Optional Temperature probe
  • Includes no Spindles
  • Available Spindles and ranges:
  • Spindle R2 240 -1.06 Mio. cP
  • Spindle R3 600 - 2.66 Mio. cP
  • Spindle R4 1200 - 5.33 Mio. cP
  • Spindle R5 2400 - 10.66 Mio. cP
  • Spindle R6 6000 - 26.66  Mio. cP
  • Spindle R7 24000 - 106 Mio. cP

Viscosity ranges of R-spindles defined by instrument sensitivity and speed range

More options

No. of Speeds
Model Type
$3,095.00 excl. taxes & shipping cost

Features

As a manufacturer, viscosity specifications need to be developed and defined by R&D for the products used in specific conditions – often customization of recipes is required. To ensure a stable viscosity performance in production tests need to be run daily. The new byko-visc RT rotational viscometer provides you all the flexibility needed for any measurement task.

  • Measure a wide range of viscosities - Choose your model and enjoy flexibility in measurements
  • Electronic bubble leveling with adjustable feet
  • Brilliant 5" color touch display
  • Test Modes: Time to Torque, Time to stop
  • USB memory stick / direct to PC connecting
  • Quick disconnect spindles with an easy snap-on attachment
  • Dymo Label Writer output for sample labeling
  • Spindles made of high-quality 316 stainless steel
  • CE/UL/CSA Approved
  • 17025 certificate included

Note: To ensure consistency between measurements, we recommend the usage of a 600 mL glass beaker (see accessories).

Technical Attributes

    Technical Specifications

  • Measuring Range
    240 - 106 Mio. cP
  • No. of Speeds
    21
  • No. of Spindles
    none
  • Speed Range
    0.3 - 200 rpm
  • Repeatability
    0.2%
  • Accuracy
    1.0% full scale range
  • Model Type
    Lite High Viscosity (without spindles)
  • Max Spring Torque
    5.7498 mNm
  • General

  • Languages
    English German French Italian Spanish Russian Japanese Chinese
  • Power supply
    Worldwide power supply, 24v voltage DC input / Separate 24 VDC power supply
  • Weight
    6.5 kg
  • Weight
    14.3 lb
  • Dimensions: L x W x H
    25 x 31 x 47 cm
  • Dimensions: L x W x H
    9.8 x 12.2 x 18.5 in

Standards

ISO

2555 1652

ASTM

D2196

Delivery Content

Viscometer with stand
Certificate
Power supply (8360)
Manual
