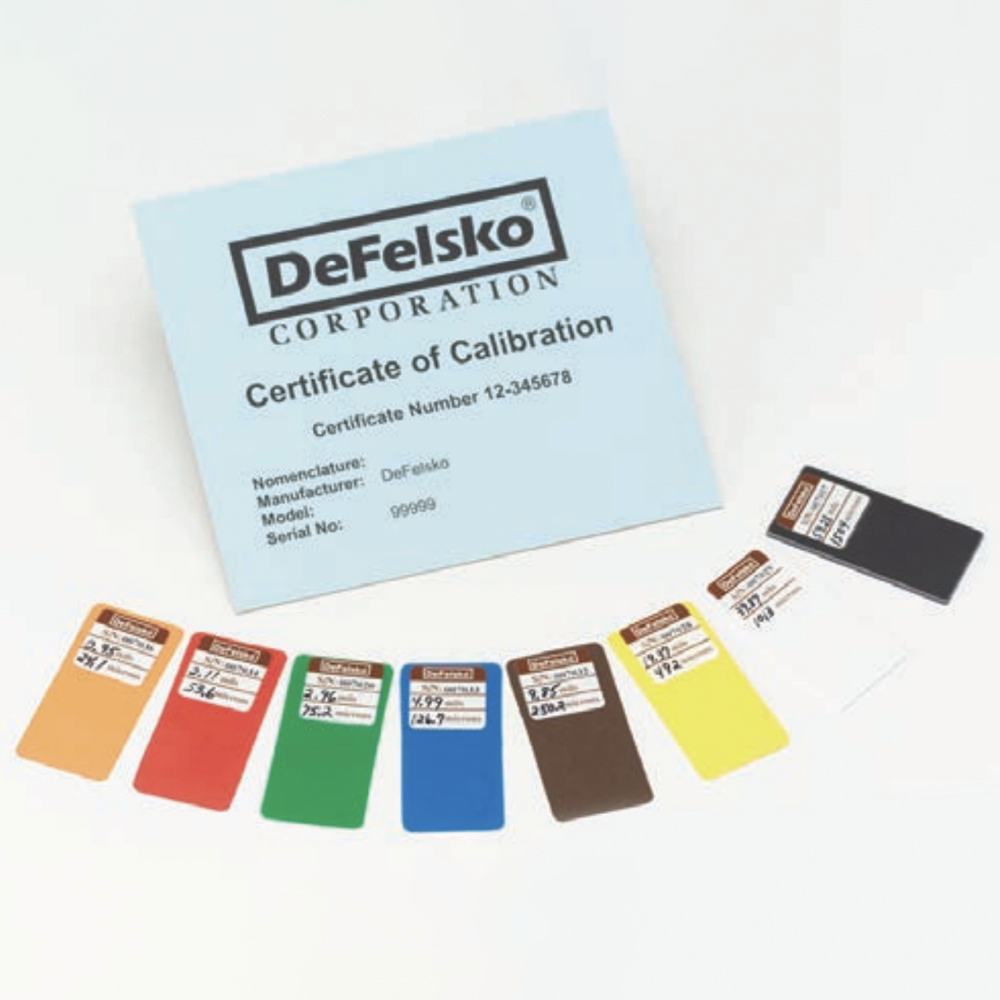

Defelsko Certified Plastic Shims

Article No. 11243

Certified Plastic Shims

The Defelsko Certified Plastic Shims simulate a coating over a particular substrate material or shape. They are for use with all Type 2, electronic coating thickness gauges, and protect the probe from damage or premature wear when placed over hot or abrasive surfaces. They can be placed on top of soft or tacky coating films to obtain thickness measurements without the gauge probe depressing the coating film.

$225.00 excl. taxes & shipping cost


  • Each shim is packaged in their own plastic protective pouch
  • Certificate of Calibration showing traceability to NIST is included with each shim or set of shims
  • Certified and labeled in both Metric and Imperial units
  • Certified shims provide an economical alternative to Coated Metal Plates but have a reduced accuracy
  • Certified Plastic Shims are available in the following thicknesses below (all thicknesses are approximate)
  • Gauge performance can be conveniently verified on a regular basis as required by some international test methods.

Technical Attributes

  • Data
    Part No.Product CodeApproximate ThicknessColorAccuracy
    11243CS125 μm (1 mil)Orange±2 μm (±0.08 mil)
    CS250 μm (2 mil)Red
    CS375 μm (3 mil)Green
    CS5125 μm (5 mil)Blue
    CS10250 μm (10 mil)Brown
    CS20500 μm (20 mil)Yellow
    CS401000 μm (40 mil)White
    CS601500 μm (60 mil)Black
    CSSComplete set of 8

Delivery Content

Set includes: CS1 - 25 µm (1 mil), CS2 - 50 µm (2 mil), CS3 - 75 µm (3 mil), CS5 - 125 µm (5 mil), CS10 - 250 µm (10 mil), CS20 - 500 µm (20 mil), CS40 - 1000 µm (40 mil), CS60 - 1500 µm (60 mil)
