Temperature data logger for QC

Article No. 3345

temp-gard basic C
Oven recorder with 6 clamp thermocouples for QC

  • 6 clamp probes: one air probe, 5 object probes
  • easy-to-read color display
  • temp-chart basic software included
  • light weight thermal barrier included
  • ideal solution for industrial coating applications

More options

Probe Type
$5,400.00 excl. taxes & shipping cost

Features

Small Logger, Big Display

  • Small, modern data logger
  • Large color screen for mea­su­rement setup direct on logger
  • 6 high-quality type "K" probes can be connected
  • Detection of connected probes
  • Temperature profile on display
  • USB interface provides easy data transfer for on-site evaluation
  • Long battery life with 2 AA Alkaline batteries
  • Certified high accuracy for long-term reliable results

Recommendation:
Get a 2nd cooling element to allow more frequent oven runs – especially of benefit when you need to check the oven performance at a customer site or after new settings.

Technical Attributes

    Technical Specifications

  • Probe Type
    clamp
  • Temperature Range
    0 - 400 °C
  • Temperature Range
    32 - 752 °F
  • Sampling Interval
    0.1 sec up to 5 min
  • Thermal Barrier Dimensions
    27 x 21,5 x 14 cm (10,6 x 8,5 x 5,5 in)
  • Maximum Duration
    at 100 °C, 8.5 hrs; at 200 °C, 2.5 hrs; at 250 °C, 2.0 hrs
  • Resolution
    0.1 °C (0.18 °F) from 0 - 400°C (32 - 752 °F)
  • No. of Channels
    6
  • Accuracy
    ± 0.5 °C
  • Probes
    6 clamp probes = one air probe, 5 object probes
  • General

  • Memory
    240,000 readings
  • Interface
    USB 2.0
  • Display
    Color, 7.9 x 6 cm (3.1 x 2.4 in)
  • Battery Capacity
    0.5 sec interval = 25 hrs (AA Alkaline)
  • Weight
    4.3 kg
  • Weight
    9.5 lb

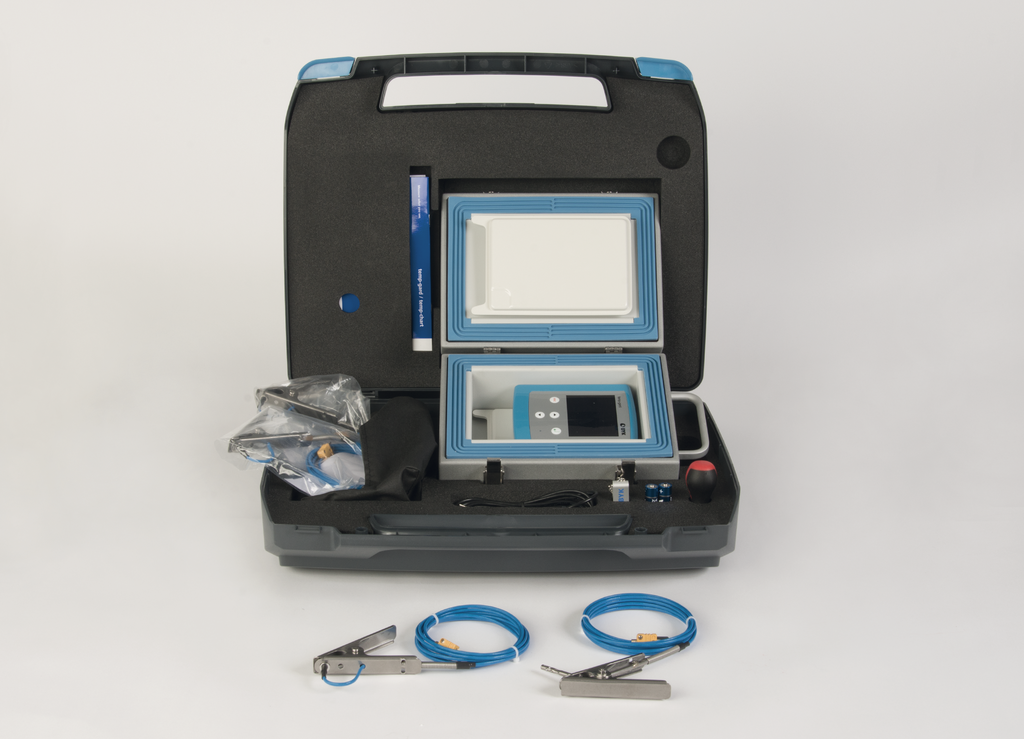

Delivery Content

Temperature logger (3318)
6 clamp probes: Air probe C, 3 m (3128), 5x Object probe A, 3 m (3122)
Thermal barrier basic (3342)
Heat sink basic (3343)
USB interface cable (6337)
2 AA batteries
Software temp-chart basic (3344)
Certificate
Manual
Carrying case
1/2 day training
