Temperature data logger for QC and Analysis

Art. No.: 3309

temp-gard pro 12p C
Oven recorder - 12 clamp probes for QC & Optimization

  • temp-gard 12p with 11 clamp object probes (3122), 1 clamp air probe (3128)
  • easy-to-read color display
  • temp-chart-software included
  • light weight thermal barrier included
  • ideal solution for industrial coating applications

Select your Model

$12,950.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

Small Logger, Big Display

  • Small, modern data logger
  • Large color screen for mea­su­rement setup direct on logger
  • 6 or 12 high-quality type "K" probes can be connected
  • Detection of connected probes
  • Temperature profile on display
  • USB interface provides easy data transfer for on-site evaluation
  • Long battery life with 2 AA Alkaline batteries
  • Certified high accuracy for long-term reliable results

Recommendation:

Get a 2nd cooling element to allow more frequent oven runs – especially of benefit when you need to check the oven performance at a customer site or after new settings.

We need your approval
This content is provided by YouTube. By enabling this content, your personal data may be processed by the vendor and cookies may be set.
Accept
Cookie Banner powered by consentmanager.netconsentmanager.net

View more videos

Technical Specifications
Probe Typeclamp
Temperature Range0 - 400 °C
Temperature Range32 - 752 °F
Accuracy± 0.5 °C
Maximum Durationat 100 °C, 8.5 hrs; at 200 °C, 2.5 hrs; at 250 °C, 2.0 hrs
No. of Channels12
Probes12 clamp probes = one air probe, 11 object probes
Resolution0.1 °C (0.18 °F) from 0 - 400°C (32 - 752 °F)
Sampling Interval0.1 sec up to 5 min
Thermal Barrier Dimensions25.5 x 21.5 x 13.5 cm (10.0 x 8.5 x 5.3 in)
General
Memory240,000 readings
InterfaceUSB 2.0
DisplayColor, 7.9 x 6 cm (3.1 x 2.4 in)
Battery Capacity0.5 sec interval = 25 hrs (AA Alkaline)
Weight3.6 kg
Weight7.8 lb

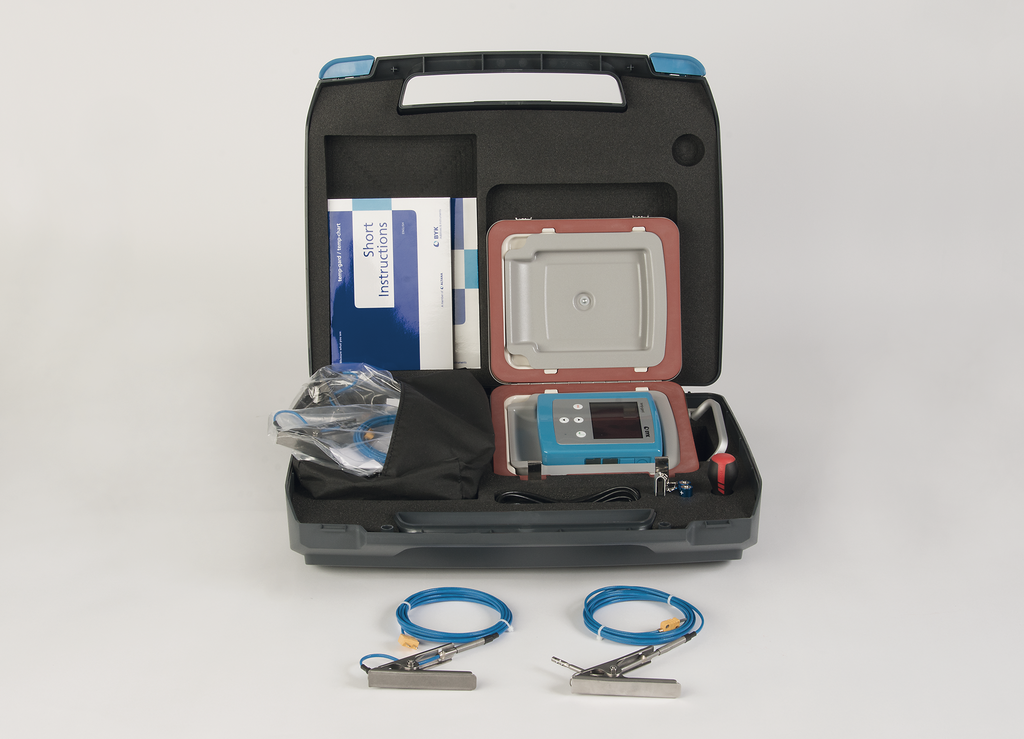

Temperautre logger (3320)
12 clamp probes: Air probe C, 3 m (3128), 11x Object probe A, 3 m (3122)
Thermal barrier pro (3325)
Heat sink pro (3326)
USB interface cable (6337)
2 AA batteries
Software temp-chart pro (3311)
Certificate
Manual
Carrying case
1/2 day training

Manuals

Short Instructions

Safety Instructions

Brochure

Object Probe A, 1.5 m

Article No: 3121

Price: $286.00

Object Probe A, 1.5 m

Article No: 3121

Price: $286.00

Object Probe A, 3 m

Article No: 3122

Price: $312.00

Object Probe A, 3 m

Article No: 3122

Price: $312.00

Object Probe A, 8 m

Article No: 3123

Price: $390.00

Object Probe A, 8 m

Article No: 3123

Price: $390.00

Object Probe B, 1.5 m

Article No: 3124

Price: $321.00

Object Probe B, 1.5 m

Article No: 3124

Price: $321.00

Object Probe B, 3 m

Article No: 3125

Price: $347.00

Object Probe B, 3 m

Article No: 3125

Price: $347.00

Object Probe B, 8 m

Article No: 3126

Price: $390.00

Object Probe B, 8 m

Article No: 3126

Price: $390.00

Air Probe C, 1.5 m

Article No: 3127

Price: $250.00

Air Probe C, 1.5 m

Article No: 3127

Price: $250.00

Air Probe C, 3 m

Article No: 3128

Price: $286.00

Air Probe C, 3 m

Article No: 3128

Price: $286.00

Air Probe C, 8 m

Article No: 3129

Price: $321.00

Air Probe C, 8 m

Article No: 3129

Price: $321.00

Air Probe D, 1.5 m

Article No: 3130

Price: $321.00

Air Probe D, 1.5 m

Article No: 3130

Price: $321.00

Air Probe D, 3 m

Article No: 3131

Price: $347.00

Air Probe D, 3 m

Article No: 3131

Price: $347.00

Air Probe D, 8 m

Article No: 3132

Price: $390.00

Air Probe D, 8 m

Article No: 3132

Price: $390.00

Foil Probe, 1.5 m

Article No: 3133

Price: $186.00

Foil Probe, 1.5 m

Article No: 3133

Price: $186.00

Open Probe F, 1.5 m

Article No: 3134

Price: $103.00

Open Probe F, 1.5 m

Article No: 3134

Price: $103.00

Open Probe F, 3 m

Article No: 3135

Price: $119.00

Open Probe F, 3 m

Article No: 3135

Price: $119.00

Open Probe F, 8 m

Article No: 3136

Price: $224.00

Open Probe F, 8 m

Article No: 3136

Price: $224.00

Extension 3 m

Article No: 3137

Price: $238.00

Extension 3 m

Article No: 3137

Price: $238.00

Extension 5 m

Article No: 3138

Price: $264.00

Extension 5 m

Article No: 3138

Price: $264.00

IR Probe H, 3 m

Article No: 3143

Price: $392.00

IR Probe H, 3 m

Article No: 3143

Price: $392.00

IR Probe I, 3 m

Article No: 3144

Price: $354.00

IR Probe I, 3 m

Article No: 3144

Price: $354.00

Object Probe G, 1.5m

Article No: 3146

Price: $252.00

Object Probe G, 1.5m

Article No: 3146

Price: $252.00

Special Open Probe (0.3 mm)

Article No: 3147

Price: $203.00

Special Open Probe (0.3 mm)

Article No: 3147

Price: $203.00

Washer Probe J,3m

Article No: 3149

Price: $235.00

Washer Probe J,3m

Article No: 3149

Price: $235.00

Adhesive Tape for foil probe

Article No: 3038

Price: $177.00

temp-gard logger 12p

Article No: 3320

Price: $5,280.00

Thermal Barrier pro

Article No: 3325

Price: $3,025.00

Heat Sink pro

Article No: 3326

Price: $377.00

USB Interface Cable for BYK-mac

USB Interface Cable for 6360, 6072-6075

To connect the docking station to the PC

Article No: 6337

Price: $80.00

temp-gard pro 6p C

Oven recorder - 6 clamp probes for QC & Optimization

Article No: 3307

Price: $9,400.00

temp-gard pro 12p, no probes

Oven recorder - 12 measure points for QC & Optimization

Article No: 3308

Price: $10,250.00

temp-gard pro 6p, no probes

Oven recorder - 6 measure points for QC & Optimization

Article No: 3306

Price: $8,400.00

temp-gard pro 6p

Oven recorder - 6 magnetic probes for QC & Optimization

Article No: 3317

Price: $9,400.00

temp-gard pro 12p

Oven recorder - 12 magnetic probes for QC & Optimization

Article No: 3319

Price: $12,950.00
