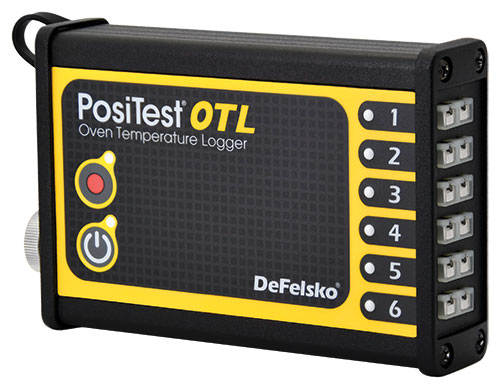

PosiTest OTL Oven Temperature Logger

Article No. 14659

Positest OTL Oven Temp Logger Kit

The PosiTest OTL Oven Temperature Logger measures and records oven temperature profiles up to 40,000 datasets (240,000 readings) into 6 independent batches. The high temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures and contains no silicone. There are 6 K-type thermocouple ports (channels).

Select your model

$2,295.00 excl. taxes & shipping cost

Features

  • Simple, easy-to-use interface

  • 6 K-type thermocouple ports (channels)

  • Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches

  • Records measurements every 2 seconds for up to 22 hours of recording time

  • Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.

  • Cure Index compares supplier's cure specifications to actual oven and part temperatures to ensure a proper cure

  • Bright LEDs indicate logger status at a glance

  • High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.

  • Certificate of calibration showing traceability to NIST included

  • FREE powerful desktop software (PC/Mac) for downloading, viewing, printing, and storing measurement data. Add batch annotations, label individual channels, set threshold temperatures, and compare datasets to reference batches. Includes a customizable, templated PDF Report Generator. No internet connection required.

Technical Attributes

  • Data
    Channels:6 K-type non-grounded thermocouples
    Thermocouple Measurement Range:-148 to 1832°F (-100 to 1000°C)
    Logger Operating Temperature Range:
    (PosiTest OTL without Holder or Barrier Box)
    32 to 158°F (0 to 70°C)
    Logger Accuracy:±0.9°F (±0.5°C)
    Resolution:0.1°F (0.1°C)
    Memory:40,000 Datasets. Each Dataset consists of up to 6 channels.
    Sample Interval:2 seconds (Fixed) - Maximum recording time is 22 hours
    Power Source:2 AAA batteries
    Battery Life:30 hours (recording time)
    Size:2" x 10" x 6" (30.5 x 25.5 x 15 cm)
    Weight:20 lbs.(9 kg) - Weight includes the PosiTest OTL Holder, and Barrier Box. Holder XT increases weight to 25 lbs. (11 kg)
    Temperature Probes
    Clamp Surface Probe:-148 to 930°F
    (-100 to 500°C)
    Clamp Air Probe:
    Magnetic Surface Probe:-148 to 570°F
    (-100 to 300°C)
    Magnetic Air Probe:
    Washer Surface Probe:-148 to 930°F
    (-100 to 500°C)
    OTL Kit Comparison
    Part No.:1465914660
    302°F (150°C)90 minutes300 minutes
    392°F (200°C)65 minutes200 minutes
    482°F (250°C)50 minutes140 minutes
    572°F (300°C)not recommended100 minutes
    The chart and table above represent the combined thermal characteristics of the PosiTest OTL, Barrier Box and choice of Holder/Holder XT.

Delivery Content

LOGGER KITS COME with temperature logger, stainless steel high temperature barrier box, choice of holder, 6 engraved probe ID tags, two AAA batteries, instructions, Long Form Certificate of Calibration traceable to NIST, carrying case, USB cable, PosiSoft Desktop software, and two year warranty.

Accessories

14671
OTL Temp Probe Tags (6)
$22.00
14670
OTL Washer Surface Temp Prb 12’ (3.6m)
$149.00
14669
OTL Washer Surface Temp Prb 6’ (1.8m)
$138.00
14668
OTL Magnetic Air Temp Prb 12’ (3.6m)
$149.00
14667
OTL Magnetic Air Temp Prb 6’ (1.8m)
$138.00
14666
OTL Magnetic Surface Temp Prb 12’ (3.6m)
$171.00
14665
OTL Magnetic Surface Temp Prb 6’ (1.8m)
$160.00
14664
OTL Spring Clamp Air Temp Prb 12’ (3.6m)
$149.00
14663
OTL Spring Clamp Air Temp Prb 6’ (1.8m)
$138.00
14662
Spring Clamp Surface Temp Prb 12’ (3.6m)
$149.00
14661
Spring Clamp Surface Temp Prb 6’ (1.8m)
$138.00
