Magnet Surface Thermometers

Article No. 13391

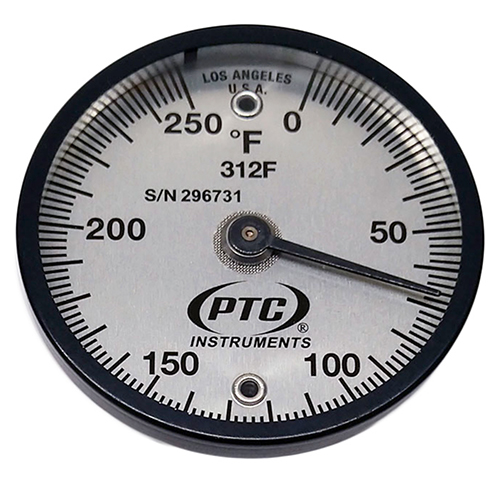

Magnetic Surface Thermometer, 0-250°F

The PTC Dual Magnet Surface Thermometers are designed for hospitals and industrial applications such as: pipe surfaces, weld preheats, boilers, cylindrical tanks, motors, generators, engines, bearings, hot plates, griddles, die-cast dies, foundry core boxes and annealing ovens.

Select your model

$90.00 excl. taxes & shipping cost


  • PTC® Quality - Made in the U.S.A.
  • Accuracy of ±2% of Full Scale Range
  • NIST Certification Available
  • Every Unit Individually Calibrated
  • Dual Scale Models Available
  • Single or Dual Max-Min Hands Available
  • Aluminum Dial
  • Dual Magnets

Technical Attributes

  • Data
    Accuracy:±2% of full scale range
    Time constant:from 0.06 to 1 minute(depending on the range)
    Range:0 to 250 (312F) / -20 to +120 (312C) / 0 to 150 (315F)
    Div.:2° (312F) / 1° (312C and 315F)
    Diameter:2" (5.1 cm)
    Height:1/2" (1.3 cm)
    Weight:1-1/2 oz. (43 g)
    Shipping Weight:1 lb. (454 g)
    Ancillary Hand:optional
    Max-Min Hands:optional
