Digital Handheld Contact Tachometers
Article No. 13272

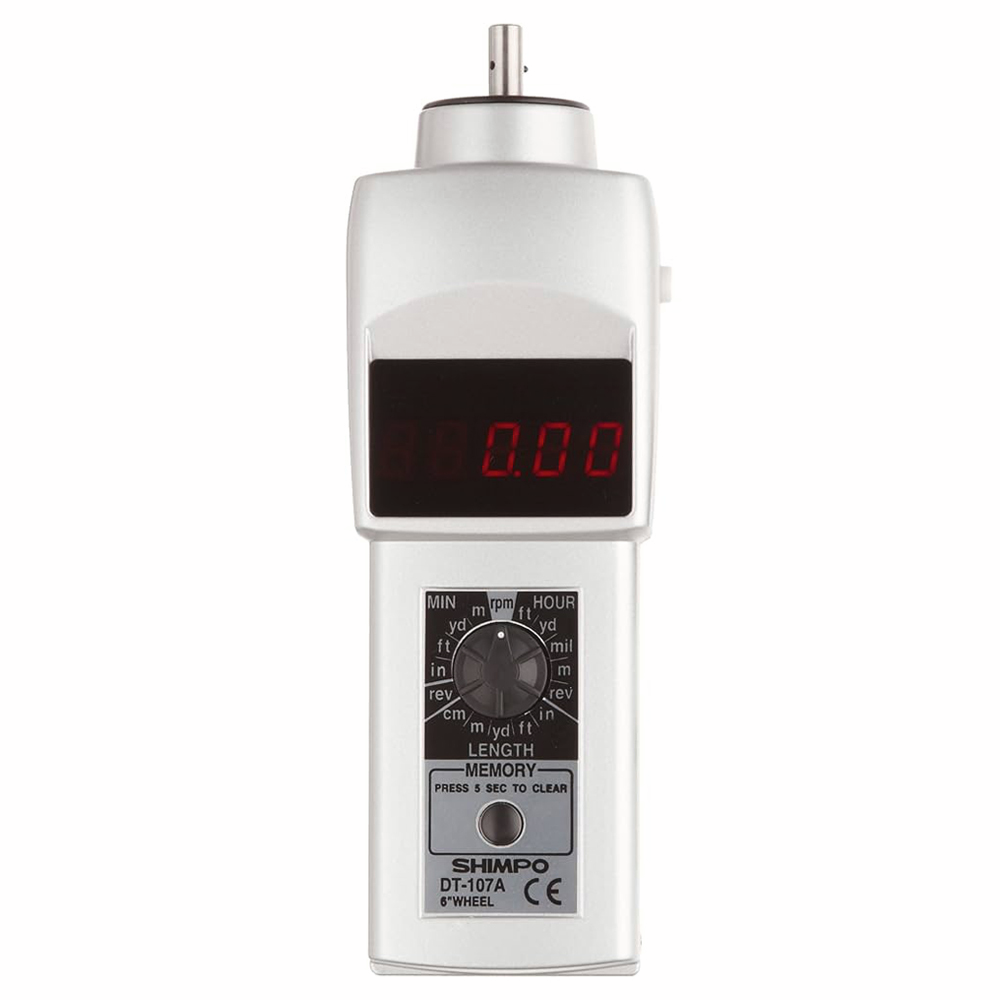

LED Contact Tachometer w/6” Wheel
- Digtial Tachometer DT-107A
- 5 digit 0.4" (10mm) high LED
- Approx. 40 hours battery life
Features
- The Digital Handheld Contact Tachometers is a microprocessor controlled digital handheld tachometer
- Comes with NIST Certification.
- These hand-held tachometers offer total length in meters, centimeters, inches, feet and yards.
- In addition, total revolutions can be displayed, the speed of ten individual machines can be stored and retained in memory for 5 minutes or longer.
Technical Attributes
-
- Data
-
Part No.: 13271 13272 Measuring Range: 0.10 to 25,000 rpm with floating decimal Accuracy: ±0.06 rpm: 0.10 to 999.99 rpm
±0.6 rpm: 1,000 to 9,999.9 rpm
±0.006% of reading ± 1 digit (or ±2rpm max.) :10,000 to 25,000 rpmDisplay: 5 digit 0.47" (12mm) high LCD 5 digit 0.4" (10mm) high LED
Measuring Units:Revolutions: RPH, RPM Feet; FPH, FPM Miles; MPH
Yards: YPH, YPM
Inches: IPM
Meters: mPH, mPM
Length: m, cm, inches, feet, yards
Total revolutions: REVMemory: 13 readings are stored in memory and retained for 5 minutes (last, max., min. and 10 extra measurements) Display Update Time: 1 second typical Detection: Optical Coupler, 60 pulses/rev. System Control: Single-chip C-MOS microprocessor Over Range Indicator: Flashing numerals Voltage Requirement: Size: 2 AA 1.5V Battery Life: Life: Approx. 65 hours Life: Approx. 40 hours Low Battery Indicator: Flashing "LO BAT" display "B" display Auto Power Shut-Off Yes Operating Temperature: 32° to 113°F (0 to 45°C) Decimal Point: Floating Construction: Die-cast aluminum housing Weight: 0.9 pounds (400g) Dimensions: 7.2"L x 2.4"W x 1.8"H Warranty: 1 year Optional Accessories: Wire/ Yarn Fixture, 12” Grooved Wheel also available
Multi-Mode Speed Selection:Per Minute RPM, FPM, mPM, YPM, IPM, MPH Per Hour RPH, FPH, mPH, YPH, IPH
Delivery Content
2 Cone Adapters, 1 Funnel Adapter, 3-1/2" Extension Shaft, Carrying Case, 1 Master Wheel (6" cir.), NIST traceable certificate.
