CDT Tachometers

Article No. 13275

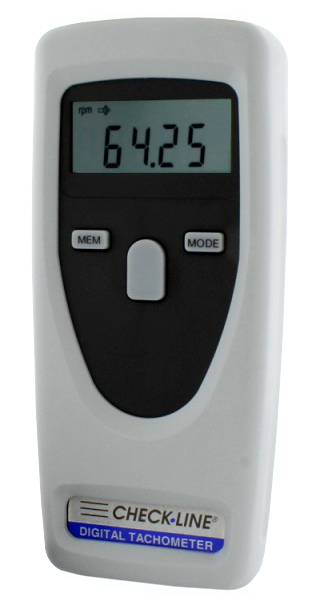

CDT-1000HD Tachometer

The CDT Tachometer is a non-contact hand-held digital tachometer that accurately measures rotational speed (RPM) using a visible beam of light and is great for heavy-duty applications.  Its rugged construction, portability and outstanding features make it an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

$233.00 excl. taxes & shipping cost


  • Includes DAkkS Traceable calibration Certificate
  • Measures speeds from as low as 1.00 rpm up to 99,999 rpm
  • Can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element
  • Built-in memory stores maximum, minimum, average and last reading for recall to the display
  • Accuracy of 0.02% with a resolution of 0.01 RPM
  • Molded Rubber Shell Provides Additional Physical & Environmental Protection
  • Low Battery Indicator alerts the operator if the batteries are low.
  • On-Target Indicator confirms that the measurements are reliable.
  • Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing

Technical Attributes

  • Data
    Measuring Range:1.00 - 99,999 rpm
    Resolution:.01 from 0 - 100
    .1 from 100 - 1,000
    1 from 1000 - 99,999
    Accuracy:± 0.02% of reading or 0.01 digit (under 50)
    Display:5 - Digit LCD, 10mm high
    Decimal Point:Automatic
    Memory System:Maximum, minimum, and last reading (retained in memory for the life of the batteries)
    Measurement System:Visible LED light beam
    Sensing Distance:Up to 24 inches (60 cm)
    Display Update Time:0.5 seconds or one measuring
    Auto Power Off:After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
    Battery Life:40 hours continuous use
    Battery:2 AA (1.5 V) or rechargeable
    Weight:6 ounces (170 grams)
    Housing Material:ABS Plastic housing with removable protective rubber shell
    Housing Rating:IP40
    Operating Temperature:32 to 122° F (0 to 50° C)
    Storage Temperature:-4 to 150° F (-20 to 70° C)
    Accessories included:10 Strips of 1/2 x 4 inch reflective tape
    Warranty:5 years
    Calibration Certificate:Included

Delivery Content

The CDT-1000HD complete kit includes the Tachometer, Reflective Tape, Two (2) AA Batteries (1.5 V), Operating Instruction Manual and Traceable certificate all supplied in a foam-fitted, hard-plastic Carrying Case.
