Testex Tape

Name: Testex Coarse Tape 0.8 - 2.5 Mil
SKU: 000000000000013163
Price: 42 USD

Art. No.: 13163

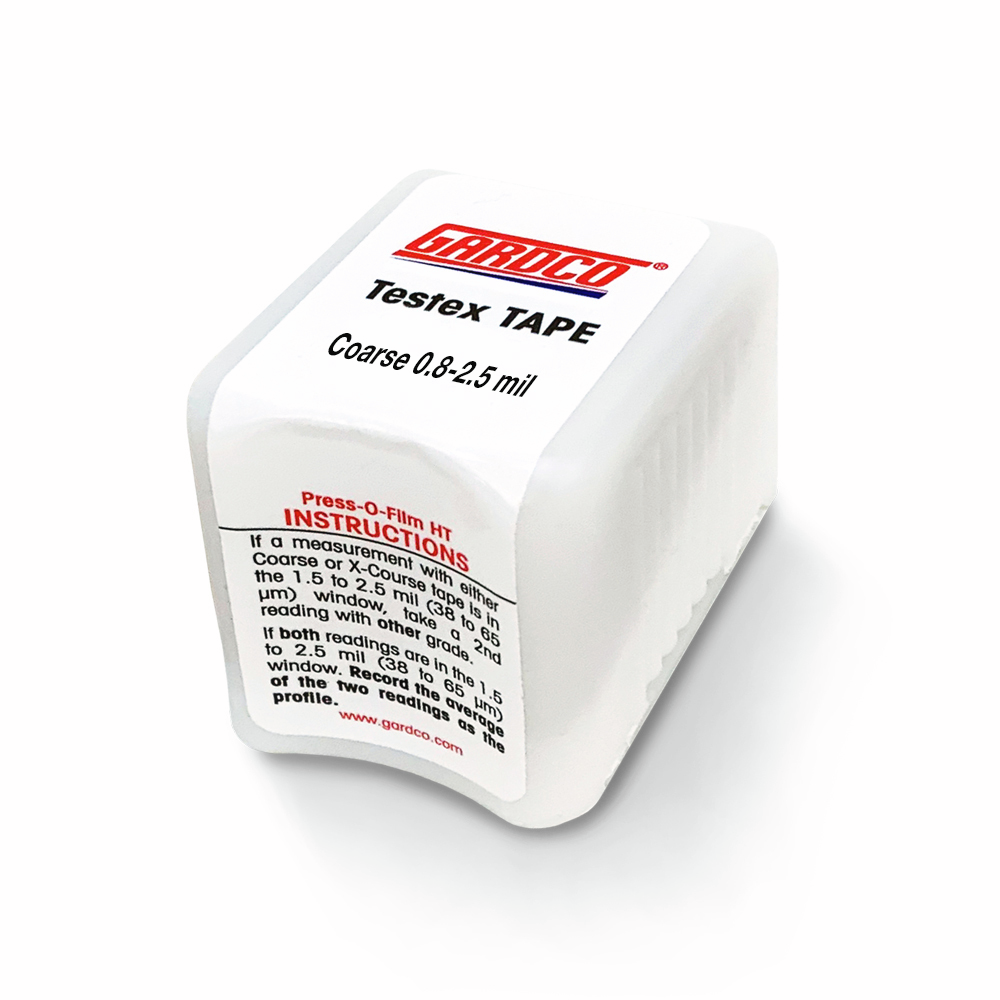

Testex Coarse Tape 0.8 - 2.5 Mil

Select your Model

Surface Profile Testers

$42.00

QTY

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

The Testex replica tape can be used with the gauge to measure the surface roughness (“profile”) of blast-cleaned steel in the roughness range 0.8 to 4.5 mils (or 20 to 115 micrometers).
Each roll of tape is labeled with a manufacturing code and date for tracking purposes.
The tape does not expire and will last for years if kept in a relatively clean, dry environment.
Temperatures above 120°F (50°C) will degrade the sticky tapes that hold the Press-O-Film. Temperatures above 140°F (60°C) will degrade the actual Press-O-Film.
Petroleum products will degrade the Press-O-Film and should be kept away from the tape.
Each roll is 50 impressions.
Because inspectors, as a rule, have a target profile in mind, it is always best to start measurements with the grade of tape that has the target profile closest to the center of its range.
Each grade of replica tape is most accurate near the center of its specified range.
Always confirm measurements near the ends of a given grade’s range using the next higher or lower grade of tape.
Press-O-Film Tape is also used with the Positector RTR - Replica Tape Reader

Technical Data Chart

Data
