Surface Roughness Standards Set
Article No. 13121
Surface Roughness Standards Set

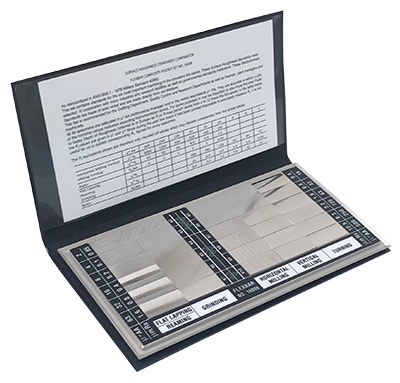

The Surface Roughness Standards Set is ideal for use in the Drafting Room, Engineering Department or in the small shop. The scale conforms to S.A.E. and military specifications for visual and tactile inspection. This set has 30 specimens, each are 7/8" x 3/8 of electroformed solid nickel.
Features
By means of this set, or one of our individual (larger) standards specimen scale sets, quick and easy comparisons can be made, thus eliminating costly checking methods, saving valuable production time, and stopping the production of scrap caused by poor finishes.
Surface finish type: flat lapping, reaming, grinding, horizontal milling, vertical milling, and turning,
Truly and consistently reproduced so as to give the operator or designer a realistic idea of the feel, appearance, and texture of the machined components.
Made of solid electroformed nickel, a truly international set with markings in AA (microinches) and metric in Ra (micrometers).
Technical Attributes
-
- Data
-
Flat Lapping: 3 Specimens - 2, 4 and 8µ" AA Reaming: 3 Specimens - 16, 32 and 63µ" AA Grinding: 6 Specimens - 2, 4, 8, 16, 32 and 63µ" AA Horizontal Milling: 6 Specimens - 16, 32, 63, 125, 250 and 500µ" AA Vertical Milling: 6 Specimens - 16, 32, 63, 125, 250 and 500µ" AA Turning: 6 Specimens - 16, 32, 63, 125, 250 and 500µ" AA
Standards
Conforms to S.A.E. and military specifications for visual and tactile inspection.
Delivery Content
Includes Special Wallet, Instructions
and Graph which correlates CLA, AA, and Ra values plus I.S.O. "N" scale overall size of scale is 6" x 3"
