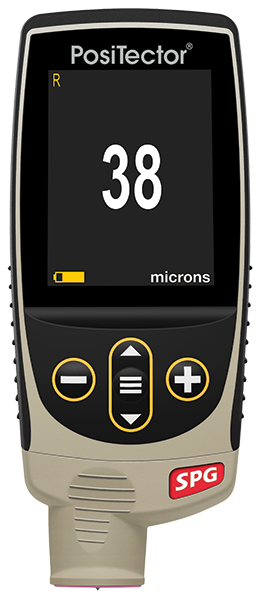

PosiTector® SPG Surface Profile Gauge

Article No. 13137

Positector SPG1-E Gauge, Std

The PosiTector SPG Surface Profile Gage measures and records peak to valley surface profile heights. It has a fast measurement rate of over 50 readings per minute - ideal for quickly and accurately measuring large surface areas. It has an ergonomic design with durable rubberized grip for comfortable, all-day inspection, and there are Standard and Advanced Models available.

Select your model

$720.00 excl. taxes & shipping cost


  • Fast measurement rate of over 50 readings per minute, ideal for quickly and accurately measuring large surfaces

  • Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation

  • On-gage help explains menu items at the touch of a button

  • RESET feature instantly restores factory settings

  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy, field replaceable tips

  • Weatherproof, dustproof, and water-resistant, IP65-rated enclosure

  • Ergonomic design with durable rubberized grip

  • Rugged, indoor/outdoor instrument, ideal for field or shop use

  • Shock-absorbing protective rubber holster for added impact resistance

  • Two year warranty on gage body AND probe

  • Certificate of Calibration showing traceability to PTB included

  • Built-in temperature compensation ensures measurement accuracy

  • Glass Zero Plate and metal check shim included

  • Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter

  • 30° angle interchangeable probe tip available for special surface profile applications

  • Cabled probes available for blasted steel, textured coatings, and concrete profile

  • Auto rotating display with Flip Lock

  • Selectable display languages

  • Mils/Microns switchable

  • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring

  • Screen Capture - save 100 screen images for record keeping and review

  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits

  • Instant-on feature quickly powers up the gage if recently powered down

  • Up to 30% longer battery life

  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included

  • PosiSoft USB Drive, stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.

  • Every stored measurement is date and time stamped

  • Includes PosiSoft Software for viewing and reporting data

  • Software Updates via web keep your gage current

Technical Attributes

  • Data
    Measuring Range:0 - 500 μm (0 - 20 mils)
    Accuracy:± (5 μm + 5%) ± (0.2 mil + 5%)
    Size:5.4” x 2.4” x 1.1” (137 x 61 x 28 mm)
    Weight:4.9 oz. (140 g) without batteries
    Conforms To:ASTM D 4417-B, AS-3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others

More Information

Standard Models - Includes ALL features previously listed plus...

  • Storage of 1,000 readings per probe - stored readings can be viewed or downloaded

Advanced Models - Includes ALL features previously listed plus...

  • Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • SmartBatch™ allows entry of user-defined parameters and criteria to for quick statistical analysis comply with standards such as ASTM D4417 and SSPC PA-17
  • Live graphing of measurement data
  • Touchscreen keyboard for quickly renaming batches, adding notes, and. More
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols


SPG Separate - Same measuring specifications as the built-in SPG probe but with a 3ft/1m cable for easier handling and greater accessibility onto a variety of surfaces.

SPG-C Separate - Similar in appearance to the SPG Separate probe but with an extended measuring range and rounder tip. Ideal for measuring the profile of textured coatings and other surface profile applications. Range: 0 to 60 mils/1500 microns, 60° tip with a 500 micron radius.

SPG-T Separate - The PosiTector SPG T Separate probe brings the ease and convenience of the PosiTector SPG family to concrete surface profile measurement. Measure up to 6 mm (250 mils) of profile without the hassle of replica putty or the vagueness of comparators. Ideal for measuring the surface profile of concrete created by blasting, scarifying, grinding, acid etching and more.

The PosiTector SPG OS probe is ideal for measuring the peak-to-valley surface profile height of convex abrasive blast cleaned surfaces such as pipes and tanks. It features two operating modes - OD (Outside Diameter) Mode (default) and Normal Mode. In OD Mode, it uses a proprietary sampling process to analyze multiple measurements for greater accuracy on convex surfaces. In Normal Mode, the instrument operates similarly to the PosiTector SPG and PosiTector SPG S making it ideal for flat surfaces too. It also features an integral V-groove and optional Large V-groove Adaptor to assist with proper probe positioning on cylindrical parts. Simply align the V-groove along the axis of the curved surface using the notches on the probe face and/or the indicator arrows on the face of the adaptor. It is available to assist with probe placement when measuring on pipes or tanks with an OD between 30 cm (12") and 46 cm (18").

  • Compatible with any Standard PosiTector gauge body with a color display and any Advanced PosiTector gauge body with S/N 730,000+.
  • Ideal for measuring on flat and curved surfaces with an OD greater than 3mm (0.125")
  • Proprietary OD Mode analyzes multiple measurements for greater accuracy on convex surfaces
  • Normal Mode is ideal for flat surfaces, and operates similarly to the PosiTector SPG and SPG S probes
  • Self-leveling probe foot ensures perpendicularity to the part being measured
  • Uses the proven V-groove design found on PosiTector 6000 coating thickness probes to stabilize the probe on any diameter
  • Available Large V-groove Adaptor for enhanced stability on 30 - 45 cm (12 - 18") OD pipes


ASTM D4417-B, AS-3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others

Delivery Content

Gage, Glass zero plate, Metal shim, Protective rubber holster with belt clip, Wrist strap, 3 AAA alkaline batteries, Nylon carrying case with shoulder strap, Protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, Two (2) year warranty, Instructions
