Pipe Thickness Gauge

Article No. 13174

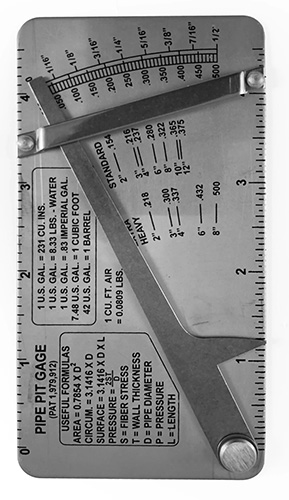

Pipe Pit Gage With Case

The Pipe Thickness Gauges are used for measuring wall thickness of pipe or plate and will serve as a constant guide for judging the condition of pipe. They can be used to great advantage by pipeliners, warehousemen, plumbers, pipe and plate fabricators, buyers or anyone required to measure the thickness of pipe or plate.

$89.00 excl. taxes & shipping cost


  • Easy to use, has only one moving part
  • Vest pocket size
  • Made from stainless steel
  • Useful formulas, tables, and data giving O.D., wall thickness, and weight per foot for various sizes of pipe are etched on the Gauge
  • Supplied with leather carrying case
  • The scale is graduated in both fractional and decimal inches and will measure thickness

Technical Attributes

  • Data
    Size:2-11/16" wide and 5-1/4" long
    Scale:0" - 1/2"
    Material:.050" highly polished Stainless Steel


  1. The indicator arm has a stylus which fits into the pits of pipe being measured.
  2. A guide is fastened to the Gauge to protect and guide the indicator arm.
  3. The scale on the right of the guide is shown as an arc and is expressed in sixteenths of an inch and in mils (thousandths of an inch)

Delivery Content

Comes complete with case
