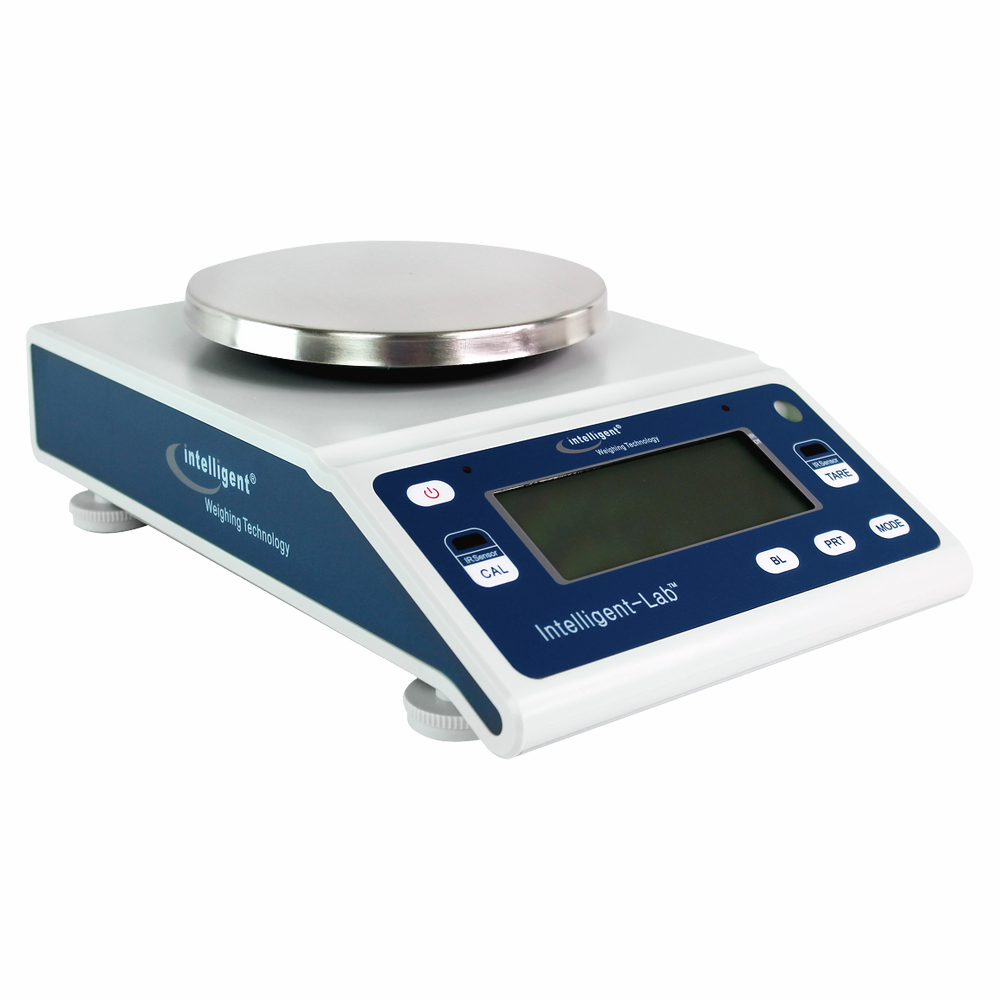

Intelligent PW Series 3,200g Balance

Intelligent Precision Balance Scale

Art. No.: 15481

PW-3200 Centigram 3,200g x 0.01g Balance

The PW-3200 Intelligent Weighing Balance is a centigram scale with hands free infrared tare and calibration.

Select your Model

$504.00

Enter a value between 1 and 100000000 in increments of 1.

excl. taxes & shipping cost

  • The PW-3200 is a centigram 3,200 g x 0.01 g balance
  •  Hands free infrared tare and calibration
  • Multiple weighing units reads in: g, oz, ct, lb, GN, ozt, dwt
  • Configurable RS 232 interface
  • Dry cell battery for portability
  • Filtering levels
  • CalQuick™ Single Button Calibration (weight supplied)
  • Adjustable Zero Tracking allows for evaporation applications
  • Counting program allows for piece counting application
  • Percentage program allows for formulation weighing
  • Dedicated print button
  • Large stainless-steel pan
  • Spill ring protects against damage to electronic components
  • Bright, backlit LCD display
  • Leveling feet w/4 points of adjustment and spirit level

Technical Data Chart
Data
Model:PW-3200
Capacity:3,200g
Readability:0.01g
Repeatability (Std. Dev.):± 0.02g
Linearity:± 0.02g
Weighing Units:g, oz, oz t, dwt, ct, lb, GN
Functions:Percentage and Counting
Tare Range:To capacity by subtraction
Power Source:120 VAC, 6 VDC, 60 Hz, 300 mA
Construction:Die cast aluminum base
Display:Large, easy to read 1.1” / 27mm LCD display w/backlight
Pan Size:6.2” / ø 157.5 mm
Dry Cell Battery Operation:8 x AA Batteries (Not Supplied)
Overall Dimensions:8.5” x 13.5” x 14.5” / 216mm x 343mm x 368mm
Operating Environment:41 to 95ºF / 5to 35ºC Temperature fluctuation ≤ 5ºC / hour humidity 50% to 85% RH
Connectivity:Rs-232 interface, selectable transmission modes
Net Weight:7 lb / 3.17 kg
Shipping Weight:9 lb / 4.08 kg
Options:Printer
