Sprayability / Paint Test Meter

Article No. 13065

Paint Test Meter, Leads, Probe

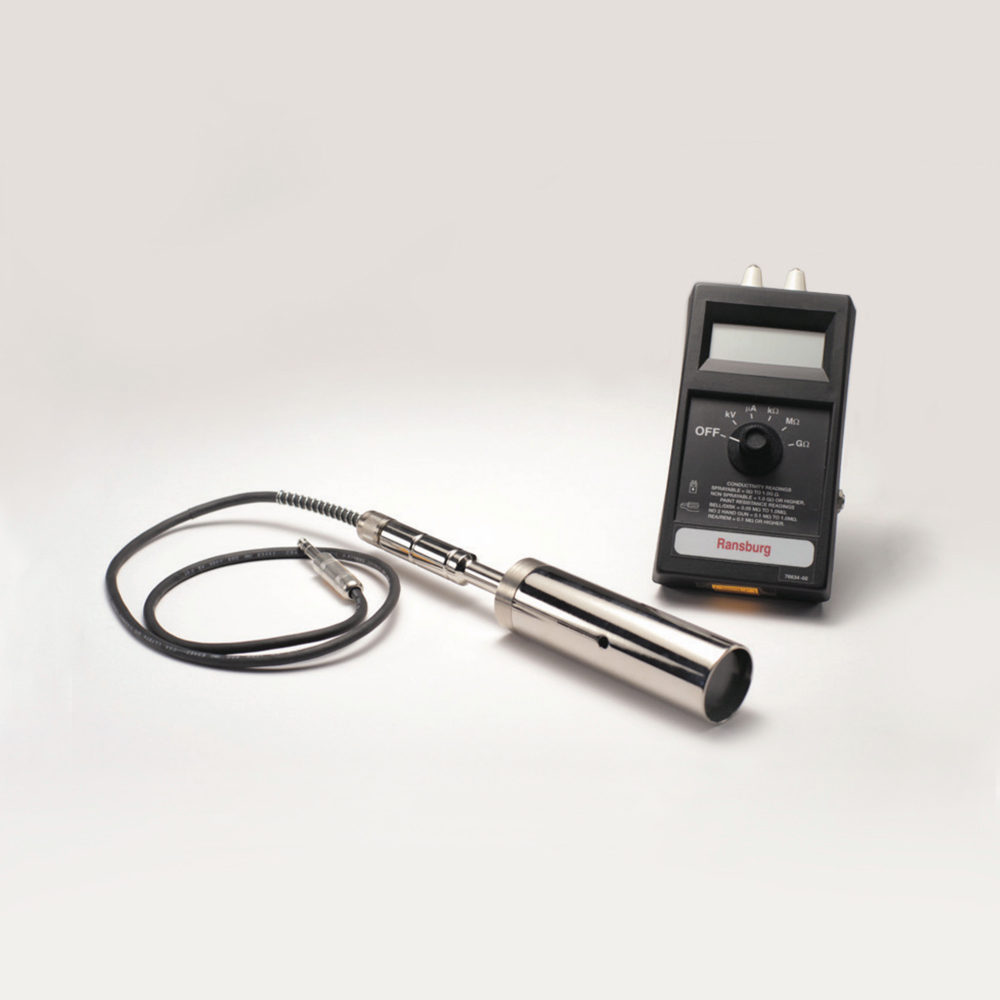

The Sprayability Paint Test Meter & Paint Probe provide a means of achieving an optimum coating finish - time after time. It is designed to provide measurement of the electrical resistance of paint formulations for all electrostatic applications as well as the short circuit current (SCI) of electrostatic applicators.

Select your model

$2,169.00 excl. taxes & shipping cost

Features

By measuring the surface resistance of materials normally considered to be electrically nonconductive and indicating the degree of sprayability on a standard scale, the Sprayability/Paint Test Meter can determine whether such materials can be electrostatically sprayed or whether they need to be treated to make them conductive.

  • Digital multi-scale meter with integrated Sprayability Meter
  • Compact and lightweight
  • Accurate digital readouts with per/second updates
  • It has an SCI scale (0 to 250 microampere's) and paint resistance scales (infinity to 0.01 and 2.0 to 0.001 in megohms).
  • Matching Paint Resistance Probe
  • Gun output test leads for short circuit current (SCI)
  • Sprayability Paint Test Meter Deluxe Kit Available:
    • A complete way to check all aspects of your system.
    • Multiple ohm scale for parts testing and checking components in gigohm range
    • Ground listing of conveyorized products

Standards

Conforms to ASTM Specification D5682

Delivery Content

Deluxe Package Includes: Paint Test Probe, Sprayability / Paint Test Meter, Gun Output Test Leads, kV Test Probe Kit, and Handy, protective carrying case

Accessories

13066
Paint Test Meter Carry Case
$125.00
13072
Paint Probe Only W/Cert
$879.00
