Large Automatic Film Applicator
Article No. 2132

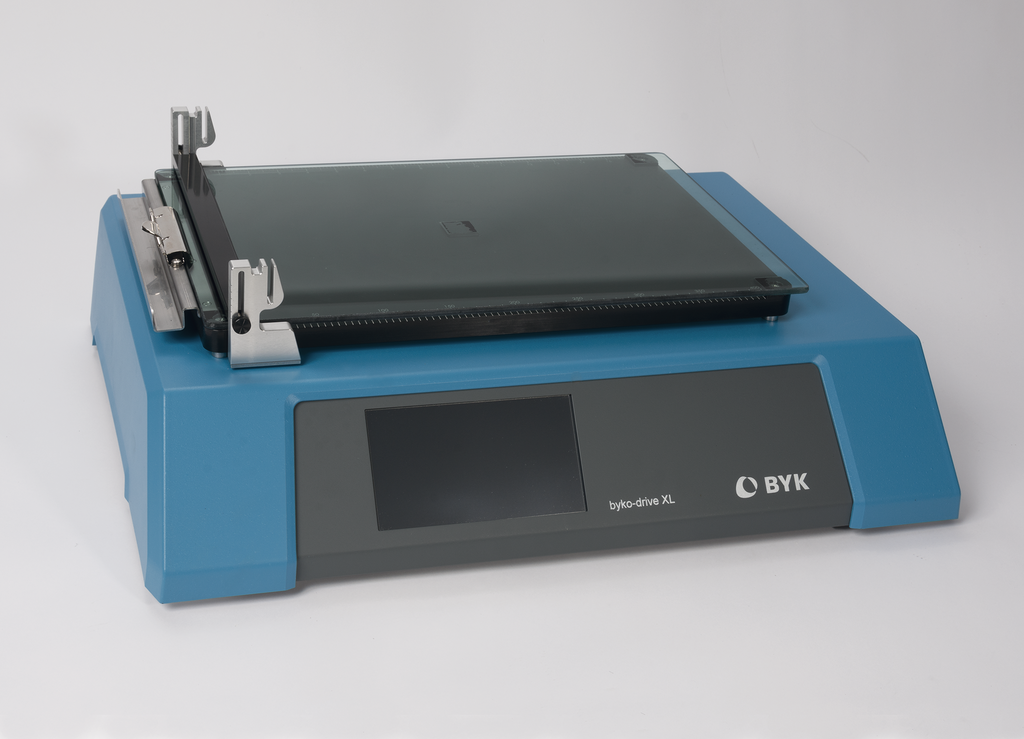

byko-drive XL, G
Automatic Film Applicator, large with glass plate
- Glass plate and clamp to fix a variety of substrates
Features
The byko-drive XL Automatic Film Applicator has a large vacuum plate or glass plate version to accommodate all drawdown chart sizes.
- User selectable speeds 5 - 500 mm/s
- Touchscreen display for easy operation
- User selectable start/stop positions
- Memory to store set-up programs
Technical Attributes
-
- Stroke length
- max. 40 cm
-
- Wire bar length maximum
- 60 cm
-
- Platform
- with glass plate
-
- Wire bar diameter
- max. 0.6 in
-
- Wire bar diameter
- max. 15 mm
-
- Wire bar length maximum
- 24 in
-
- Traverse speed accuracy
- 1% of set speed
-
- Maximum vacuum
- 0.67 bar (20 inHg)
-
- Traverse speeds
- 5 - 500 mm/s (0.2 - 19.6 in/s)
-
- Gap push-bar / plate
- 2 - 39 mm
-
- Gap push-bar / plate
- 0.08 - 1.54 in
-
- Stroke length
- max. 15.7 in
-
- Set-up Memory
- 6
-
- Test panel size maximum
- 28.5 x 43.8 cm
-
- Push-bar Weight
- 0.5 kg (up to 1.5 kg with optional weights)
-
- Test panel size maximum
- 11.2 x 17.2 in
-
- Power supply
- 100 - 240 V, 50/60 Hz
-
- Weight
- 17 kg
-
- Weight
- 37.4 lb
-
- Dimensions: L x W x H
- 61 x 44.5 x 20.4 cm
-
- Dimensions: L x W x H
- 24 x 17.5 x 8 in
Technical Properties
General
Standards
Delivery Content
byko-drive XL with glass plate
Push-bar weight (2135)
Power supply for byko-drive (2124)
Drip pan, XL (2137)
Manual
Push-bar weight (2135)
Power supply for byko-drive (2124)
Drip pan, XL (2137)
Manual
