Hand Ink Proofer

Article No. 10450

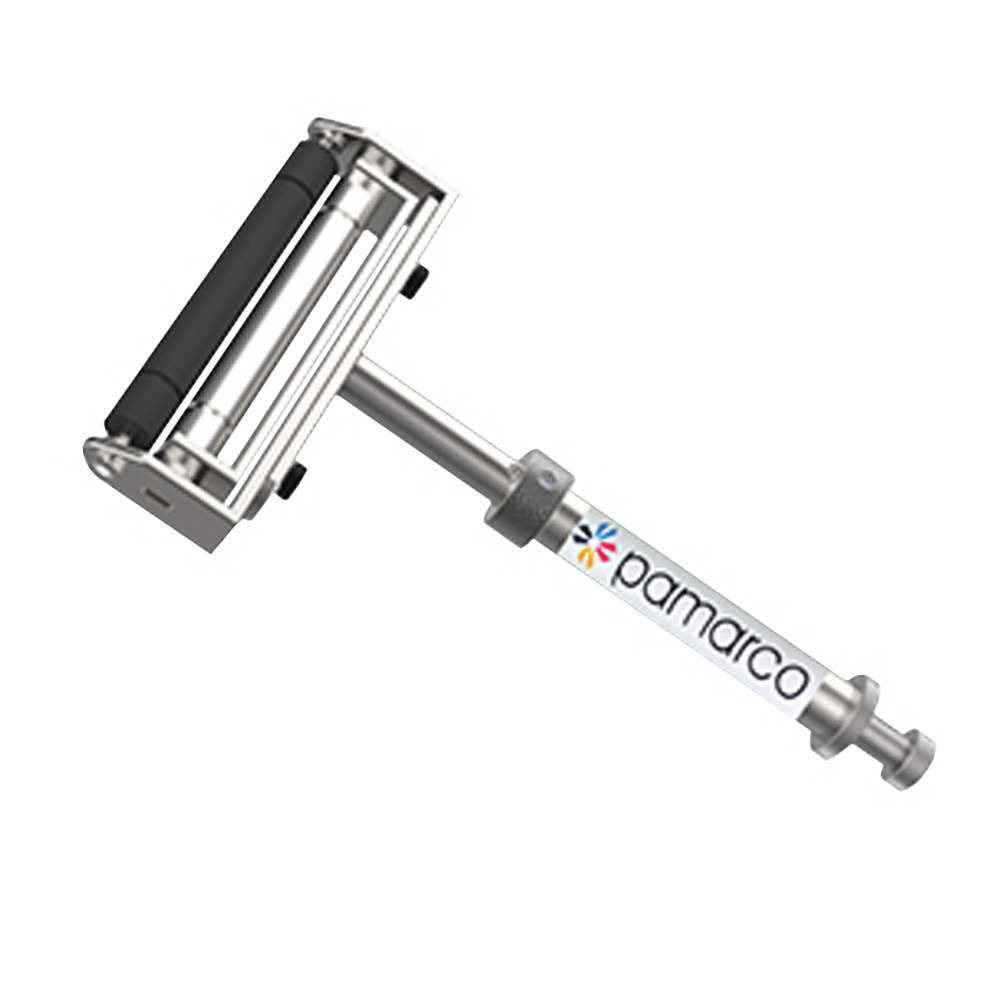

Pamarco Hand Proofer w/Std Rolls

  • Pamarco Standard Hand Proofer
  • With engraved pyramid roll, used for high solid applications where coating wettability is important
  • 180 cell count
  • #49 anilox roll
  • 7.8 BCM
  • Rubber transfer roll
$1,095.00 excl. taxes & shipping cost

Features

  • The Pamarco Hand Proofer gives you more options for testing on polyethylene, cellophane, glassine, metallic foils, plastic films, paper and paperboard.
  • Precision design with precise advantages, with the Pamarco Hand Proofer, accuracy is the first priority.
  • The unit features both a unique locking device and a nip control switch that maintains a constant nip pressure, even when the nip is being engaged/disengaged.
  • With stainless steel bearings on both the anilox and rubber rolls, draw-downs are smooth, even at high speeds and pressures.
  • “Open” design, the Hand Proofer is easy to clean and maintain.
  • Each Pamarco Hand Proofer includes the Hand Proofer, rubber transfer roll and a spring-adjustable mechanically engraved anilox roll, (with a Path Width of 4-3/4”).
  • Many anilox roll options available, see More Info section, and call for pricing

Technical Attributes

  • Data

    Pyramid Pattern for Anilox Roll - Mechanically engraved for high solid applications where coating wettability is important
    Proofer Pyramid Pattern Image
    Cell CountTool RefBCMCell CountTool RefBCM
    6001292.8110915.5
    55022.71008817
    400272.8884120.9
    3601133.775925.3
    360445755625
    360986.270520.5
    300874.5653030.2
    250203.3608935.1
    250397.1556432.7
    220536.3502536
    204325.5448146.5
    200666.8427449.8
    180497.8361565.3
    180703.4285976.8
    165149.4248280
    150619.32035106.3
    14076162016180.1
    1305011.11651144.2

    120

    80

    14.7
    1260186.5
    7.536286.9

More Information

Other options of engraved anilox rolls avaialble, see below, call for pricing.



Roto-Flo Quad Pattern for Anilox Roll - Mechanically engraved for lower solid applications where wettability and appearance are important.
Proofer Roto-Flo Quad Pattern Image
Cell CountTool RefBCMCell CountTool RefBCM
2801495.114014319.8
2801457.514013815
2501708.512014627.2
2501656.410013423.9
2001567.18516434.4
20010610.48516031.9
20017316.85514848.2
1801398.85514037.3
16514212.44510761.2
15016914.64512452.3
15017116.82517595.1

Roto-Flo Pyramid Pattern for Anilox Roll - Mechanically engraved for high solid applications where coating wettability is important.
Proofer Roto-Flo Pyramid Pattern Image
Cell CountTool RefBCMCell CountTool RefBCM
4201683.518011710.2
3601506.916512613.6
3601164.615016714.4
3601583.314013013.3
280137712015122.3
2501628.210013123.8
20012010.28515721.1

Quad (Quadragravure) Pattern for Anilox Roll - Mechanically engraved for lower solid applications, tight coat-weight tolerances.
Proofer Quad (Quadragravure) Pattern Image
Cell CountTool RefBCMCell CountTool RefBCM
3601556.912017213.2
30034.51104625.5
250917.295729.8
2501544.99510130.4
220289.38517732.8
200639.58515234.6
2001037.9855528.8
2001745.3721741.6
1901476.4653340.3
1809010.3557744.9
1804512.4456560.4
1651317.34515354.7
15012210.2352481.7
1507118.63515966.9
1403721.3307391.9
1401813.7251194.7
14012317.92068154.6
1307923.31742156.7

120

21

22.6
1078215.3
1086168.9

Trihelical Pattern for Anilox Roll - Mechanically engraved for high solid large particle applications, offers highest transfer characteristics.
Proofer Trihelical Pattern Image
Cell CountTool RefBCMCell CountTool RefBCM
360957.7954728.1
36010410908526.8
23045.9857230.7
200161280836.2
2001187.7706236.8
1809610.3648440.2
1805812.2602944.1
18011413.5554349.5
18010217.7503862.4
1503414.7451264.8
1459724.1385280.6
14510826.4358384.8
1406713.5307598.5
1202223.22823114.2
11069232454137.6

LaserFlo Laser Engraving Chart for Anilox Roll - Cleaner, sharper and consistent ink transfer.
Proofer LaserFlor Pattern Image
LinescreenVolume
Per Inch(per CM)BCM/in2(cm3/m2)
165(65)10.5(14.57)
180(70)9.5(10.54)
200(80)8.5(12.25)
250(100)7.2(11.16)
300(120)5.3(6.98)
360(140)4.3(7.75)
400(160)3.9(5.74)
550(220)3.0(4.19)
600(240)2.7(3.88)
700(280)2.3(3.41)
800(320)2.1(2.79)

Procedure

  1. To produce a sample proof: Start with a flat, clean sheet of the stock to be used.
  2. Adjust the anilox roller against the rubber roller by gradually turning the single vernier knob at the base of the hand proofer.
  3. A spring mechanism inside the handle makes it simple to position the rollers to get just the right amount of pressure.
  4. Put about 1/2 teaspoon of ink in the nip, rest the rubber roller on the stock, and draw the hand proofer toward you, smoothly and evenly.
  5. That's all there is to it. What you see on the proof is what you'll get on your flexo press.

Delivery Content

Pamarco Precision Hand Proofer with Standard engraved pyramid, 180 cell count, #49 anilox roll and rubber transfer roll
