Film Applicator with 2 Gaps, bar-shaped
Article No. 5308
Double Bar 5", 6&10 mils
Double Gap Drawdown Bar
- Gap Clearance: 6 & 10 mils
- Film Width: 5 in
Certificate:
Features
The double bar film applicator has two gap clearances.
- Large selection of film widths
- Stainless steel construction for long life
Technical Attributes
-
- Gap Clearance
- 6 mil 10 mil
-
- Gap Clearance
- 152 µm 254 µm
-
- Film Width
- 5 in
-
- Film Width
- 12.7 cm
Technical Properties

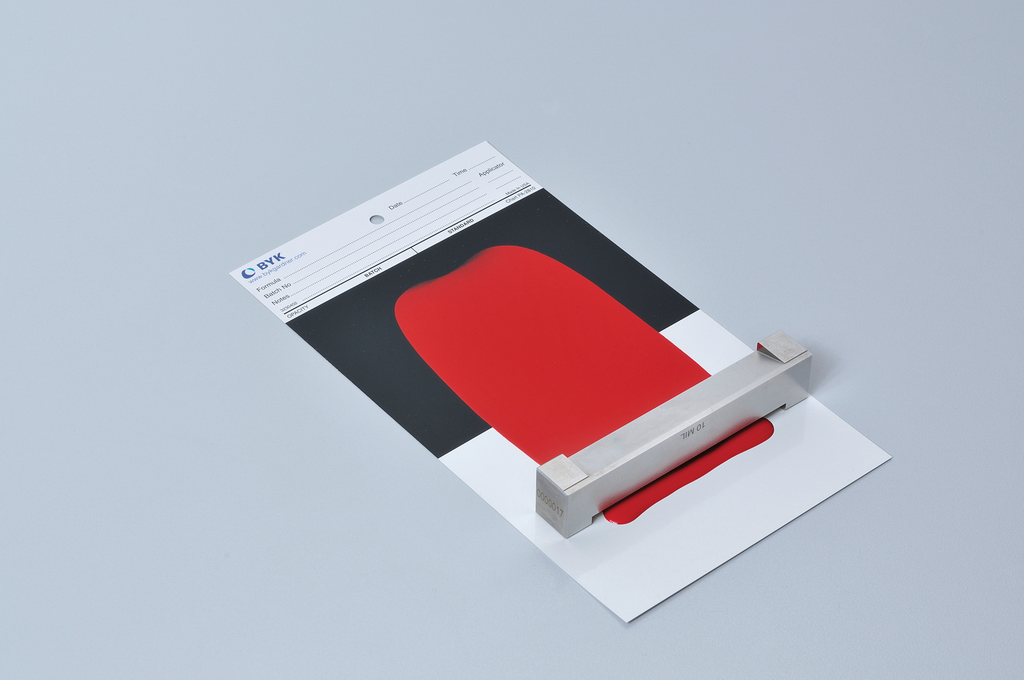

Procedure
- Place substrate to be coated on smooth surface
- Place film applicator with desired gap depth on substrate
- Pour coating in front of gap in pulling direction
- Pull at uniform speed (approx. 25 mm/s)
- Put applicator immediately into diluted cleaning solvent and clean with brush
