Anti-Sag Meter

Article No. 5404

Anti-Sag Meter 4-24 mils
Drawdown Bar

  • Range 4 to 24 mils
  • Total film width 3 3/8 inches

More options

Sagging Gap Clearance Range

Certificate:

$595.00 excl. taxes & shipping cost

Features

The Anti-sag applicators are designed to assess paint sag in compliance with ASTM methods D3730 and D4400.

  • Designed to assess paint sag in compliance with ASTM methods D3730 and D4400
  • U-shaped bar design to channel the coating under the applicator blade

  • a series of 1/4 inch wide notches of varying clearances, spaced 1/16 inch apart

  • The bar is 5 inches wide and produces a total film width of 3 3/8 inches

  • The applicator is made of stainless steel

Technical Attributes

    Technical Properties

  • Sagging Gap Clearance Range
    4 - 24 mil
  • Gap Clearance Range
    4 - 24 mil
  • Gap Clearance Range
    102 - 610 µm
  • Film Width
    3.4 in
  • Film Width
    8.6 cm
  • General

  • Weight
    0.3 kg
  • Weight
    0.625 lb
  • Dimensions: L x W x H
    12.7 x 3.8 x 2.5 cm
  • Dimensions: L x W x H
    5 x 1.5 x 1 in

Standards

ASTM

D3730 D4400

Procedure

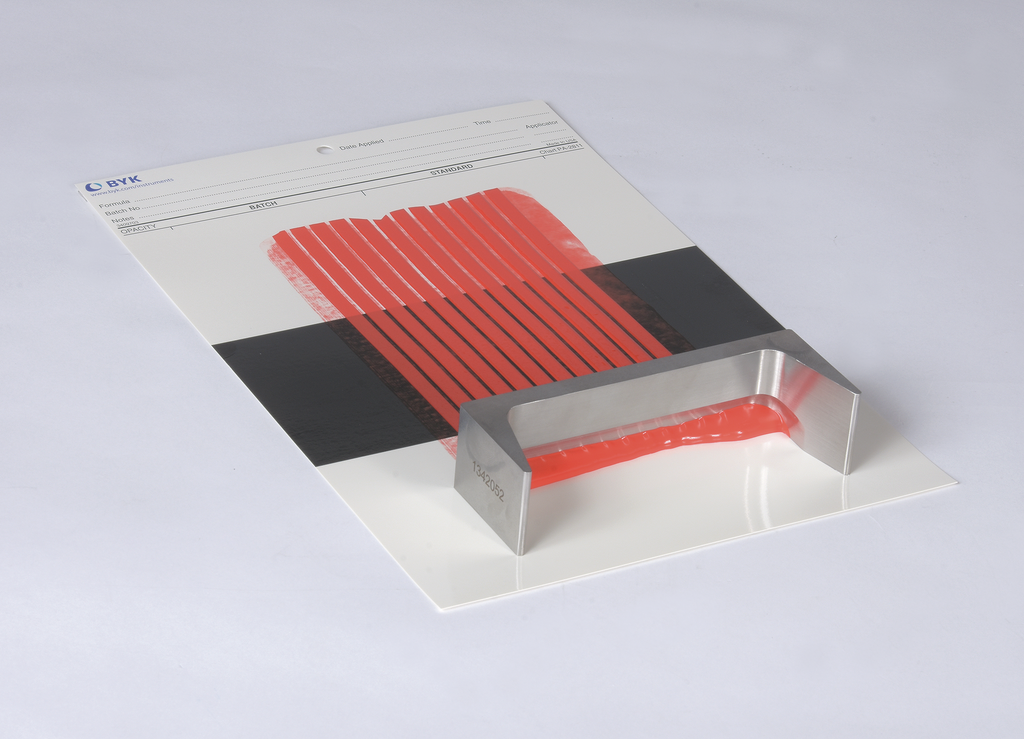

When a drawdown is made, a series of parallel stripes of different wet film thickness will be formed. This panel is placed on a vertical surface with the stripes horizontal and the thickest stripe lowest. As the film stripes sag downward, some of the uncoated 1/16 inch (1.6 mm) spaces may become entirely covered. The clearance of the gap that produces the thickest film stripe, not sagging completely to the stripe below, is the anti-sag index of the coating.
