Permeability Cups

Article No. 2301

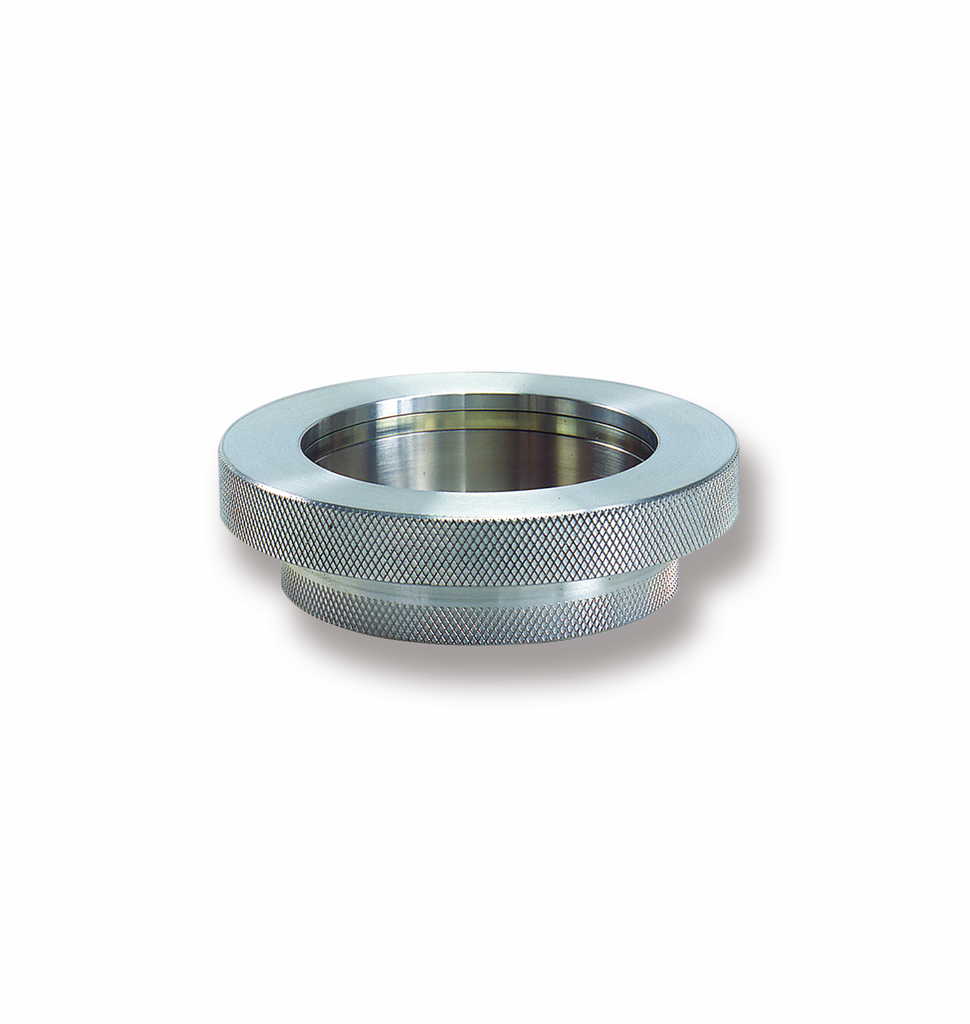

Permeability Cup L
Vapor Transmission Analysis of Large Samples

Exposed Area: 25 cm²

Dimensions: 8.1 x 2.5 cm (3.25 x 1 in)

More options

Exposed Area
$270.00 excl. taxes & shipping cost

Features

BYK-Gardner offers two sizes of cups to perform a permeability test.

  • Large 25 square centimeter cup to meet the ASTM standard
  • A rubber gasket is used to provide an excellent seal
  • Knurled side edges to easily tighten or open the cup

Technical Attributes

    Technical Specifications

  • Exposed Area
    25 cm²
  • General

  • Weight
    0.13 kg
  • Weight
    0.29 lb
  • Dimensions: L x W x H
    2.5 cm
  • Dimensions: L x W x H
    1 in
  • Dimensions
    ∅ 8.1 x 2.5 cm
  • Dimensions
    ∅ 3.25 x 1 cm

Standards

ISO

7783-2

ASTM

D1653

Procedure

During a test, vapor passes from the cup through the film specimen to an open container of desiccant or other absorbent material in a controlled environment. The permeability cup and other container are sealed together in a larger container to provide control of the vapor pressure. Testing may also be set up to allow passage of vapor from a solution in the open container through the test film to a desiccant or other absorbent material within the permeability cup.



Delivery Content

Threaded flange
Cut bottom
Retaining washer
Neoprene gasket L (2303)
Polyethylene gasket L (2302)
Manual
