Meinzer II Test Sieve Shaker

Article No. 13251

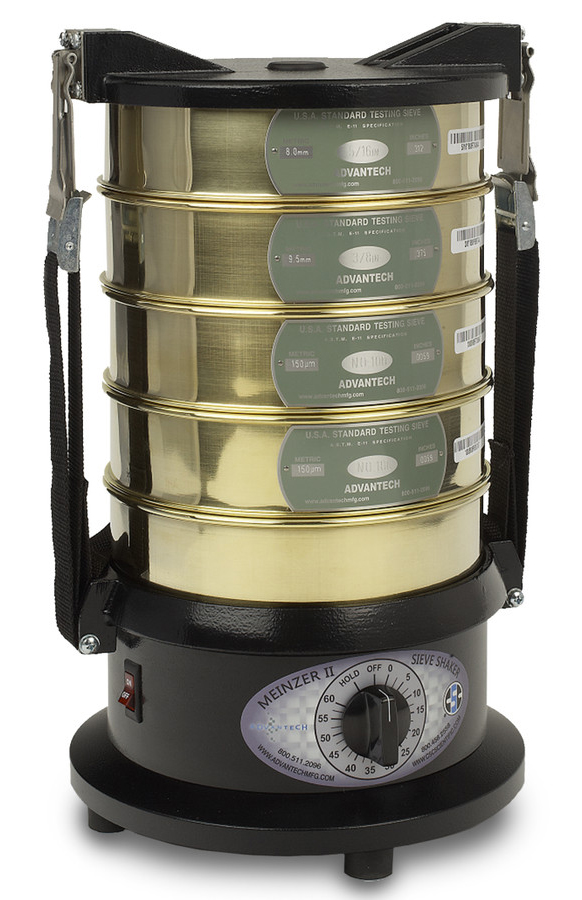

Meinzer Portable Vibrating Sieve Shaker

The Meinzer II™ Test Sieve Shaker for 8" or 200mm test sieves is a portable vibrating sifter, which is virtually maintenance free and built to last. (Sieves, Pan & Covers must be ordered separately)

$2,999.00 excl. taxes & shipping cost


  • Provides precise, repeatable results time after time
  • Utilizes an electromagnetic drive motor, a fixed amplitude and rubber spring mounts
  • Produces the simultaneous vertical and horizontal movement needed for basic dry particle sizing analysis
  • Lightweight and portable
  • Easy to use
  • Large sieve capacity
  • Built-in digital timer with automatic shut off or continuous run feature
  • Maintenance free, no moving parts
  • Rugged construction
  • Less sample blinding and degradation
  • Each unit is thoroughly tested, guaranteeing performance right out of the box.
  • Durable enclosed motor
  • Great in the field or in the lab
  • One-year limited warranty

Technical Attributes

  • Data
    Capacity 8” or 200mm:8 full ht. + pan & cover
    15 half ht. + pan & cover
    Dimensions:10” dia. x 7” h (254 mm x 178 mm)
    Speed:3,600 min
    Throw:Horizontal 2 mm Vertical 3 mm
    Weight:36 lbs. (16.3 kg) net
    Timer:1 - 60 min
    Agitation Method:Vibratory
