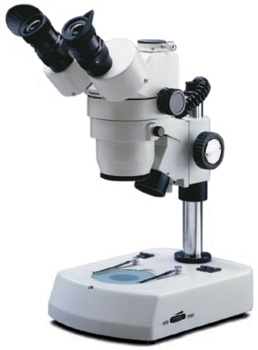

Trinocular Stereo Zoom Microscope

Name: Trinocular Stereo Zoom 10X-40X Post
Price: 943.0 USD
Availability: InStock

Article No. 12031

Trinocular Stereo Zoom 10X-40X Post

The Trinocular Stereo Zoom Microscope has the convenience and versatility of viewing a large picture at 10x magnification, then zooming continuously all the way to close-up detail at 40x magnification. Upright, unreversed 3-dimensional image remains in focus throughout zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

excl. taxes & shipping cost

Features

Paired widefield 10x eyepieces are 45° inclined, with dual diopter adjustments, interpupillary adjustment from 55mm to 75mm. Accepts 23mm eyepiece reticle.
Viewing head rotates 360°.
Continuous magnification from 10x thru 40x. See specification chart for full magnification range available with use of optional auxiliary lenses.
Large dual focusing knobs with slip clutch to prevent damage to mechanism.
Tension adjustment eliminates focus 'drift'.
Top light is LED with directional beam and rheostat control.
Bottom light is LED for cool operation, greater light efficiency.
Base mounted light controls permit choice of top only, bottom only, or dual illumination.
Heavy-duty 3-wire grounded cord and plug.
110V-240V internal auto-switching power supply.
Supplied with American style IEC power cord.
Additional wall adapter for 240V operation required.
Two 80mm stage plates (frosted glass and reversible black/white plastic contrast plates).
Blue filter for transmitted light.
Locked-on stage clips.
Professional, all-metal frame, gray enamel finish.
Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage.
Molded styrofoam container with rubber eyeshields and vinyl dustcover.

Technical Attributes

Data

Magnification:			1x to 4x Zoom
Height:			13-3/8 in. (340mm) extends to 17 in. (433mm) for larger objects
Base Width:			6-3/4 in. (171mm)
Base Depth:			9-1/2 in. (242mm)
Net Weight:			12 lbs (5.4 kgs)
Individual Ship Weight:			17 lbs (7.7 kgs )
Individual Ship Dimensions:			22x15x15 in. (550x375x375mm)
Optical Specifications
Eyepieces	Zoom Objective Position	Standard Objective 1X (Supplied)		Auxiliary Objective 0.5X (Optional)		Auxiliary Objective 0.75X (Optional)		Auxiliary Objective 1.5X (Optional)
		Working Distance 79mm		Working Distance 137mm		Working Distance 90mm		Working Distance 34mm
		Total Mag	Field Size	Total Mag	Field Size	Total Mag	Field Size	Total Mag	Field Size
WF5X Field No. 22 (Optional) (No Reticle Holder) Interpupillary Distance 59-83	1X	5X	22mm	2.5X	44mm	3.75X	29.3mm	7.5X	14.7mm
	2X	10X	11mm	5X	22mm	7.5X	14.5mm	15X	7.3mm
	3X	15X	7.3mm	7.5X	14.7mm	11.25X	9.8mm	22.5X	4.9mm
	4X	20X	5.5mm	10X	11mm	15X	7.3mm	30X	3.7mm
WF10X Field No. 20 (Supplied) (Accepts Reticle) 23mm O.D. Interpupillary Distance 54-78	1X	10X	50mm	5X	40mm	7.5X	26.7mm	15X	13.3mm
	2X	20X	10mm	10X	20mm	15X	13.3mm	30X	6.7mm
	3X	30X	6.7mm	15X	13.3mm	22.5X	8.9mm	45X	4.4mm
	4X	40X	5mm	20X	10mm	30X	6.7mm	60X	3.3mm
WF15X Field No. 13 (Optional) (No Reticle Holder) Interpupillary Distance 50.5-74.5	1X	15X	13mm	7.5X	26mm	11.25	17.3mm	22.5X	8.7mm
	2X	30X	6.8mm	15X	13mm	22.5X	8.7mm	45X	4.3mm
	3X	45X	4.3mm	22.5X	8.7mm	33.75X	5.8mm	67.5X	2.9mm
	4X	60X	3.25mm	30X	6.5mm	45X	4.3mm	90X	2.2mm
WF20X Field No. 10 (Optional) (No Reticle Holder) Interpupillary Distance 52-76	1X	20X	10mm	10X	20mm	15X	13.3mm	30X	6.7mm
	2X	40X	5mm	20X	10mm	30X	6.7mm	60X	3.3mm
	3X	60X	3.3mm	30X	6.7mm	45X	4.4mm	90X	2.2mm
	4X	80X	2.5mm	40X	5mm	60X	3.3mm	120X	1.7mm
Model		Specimen Height		Specimen Height		Specimen Height		Specimen Height
Model		Min	Max	Min	Max	Min	Max	Min	Max
420-430PLL-10		0.0mm	93mm	0.0mm	19mm	0.0mm	66mm	0.0mm	120mm

Delivery Content

Includes SLR adapter and video adapter
